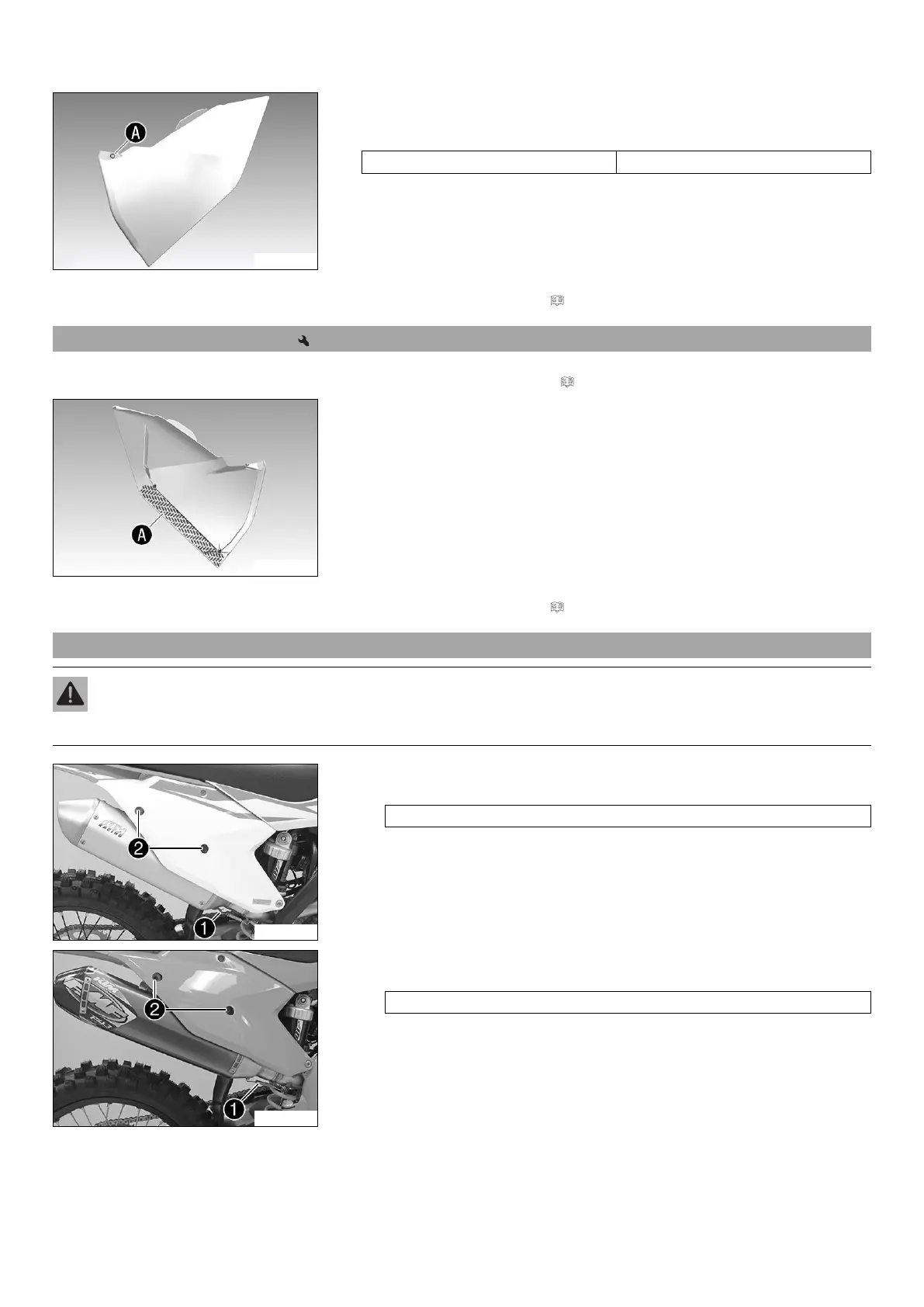

11 SERVICE WORK ON THE CHASSIS 54
S00846-10
Main work
Drill a hole at the marking
A
.
Guideline
Diameter 6 mm (0.24 in)
Finishing work
Install the air filter box cover. ( p. 51)
11.28 Sealing the air filter box
Preparatory work
Remove the air filter box cover. ( p. 50)
S00847-10
Main work
Seal the air filter box in the marked area
A
.
Finishing work
Install the air filter box cover. ( p. 51)
11.29 Removing the main silencer
Warning
Danger of burnsThe exhaust system gets very hot when the vehicle is driven.
Allow the exhaust system to cool down before performing any work on the vehicle.
S01238-10
(All SXF standard models, XCF US)
Detach spring
1
.
Spring hook (50305017000)
Remove screws
2
and take off the main silencer.
S01625-10
(SXF Factory Edition)
Detach spring
1
.
Spring hook (50305017000)
Remove screws
2
and take off the main silencer with the connection sleeve.
