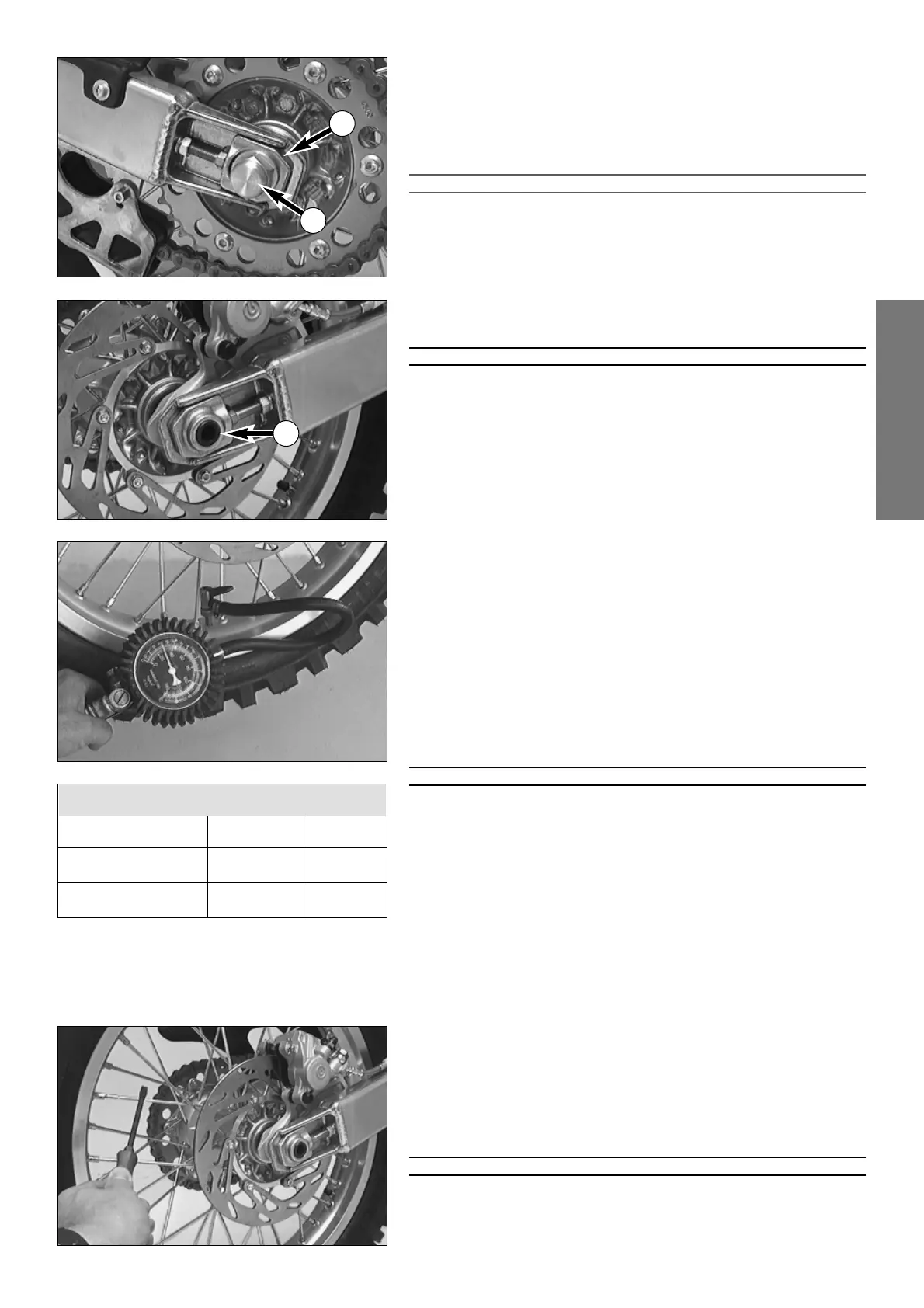

Dismounting and mounting the rear wheel
Jack the motorcycle up on its frame so that the rear wheel no longer tou-
ches the ground. Loosen the collar nut
1, remove chain tensioner 2, hold
the rear wheel and pull out the wheel spindle
3 until the rear wheel is free
but the brake caliper support is still held. Push the rear wheel as far forward
as possible, take the chain from the chain wheel and carefully take the rear
wheel out of the swingarm.
!
CAUTION
!
–D
O NOT OPERATE THE REAR BRAKE WHEN THE REAR WHEEL HAS BEEN DISMOUNTED.
–I
F THE AXLE IS DISMOUNTED, CLEAN THE THREAD OF THE WHEEL SPINDLE AND
COLLAR NUT THOROUGHLY AND APPLY A NEW COAT OF GREASE TO PREVENT THE
THREAD FROM JAMMING
.
The rear wheel is remounted in reverse order. Before tightening the collar
nut to 80 Nm (60 ft.lb), push the rear wheel forwards so that the chain ten-
sioners lie on the tension screws.
WARNING
–I
F YOU DON’T HAPPEN TO HAVE A TORQUE WRENCH AT HAND, MAKE SURE YOU
HAVE THE TIGHTENING TORQUE CORRECTED BY A
KTM DEALER AS SOON AS POSSI-
BLE
. A LOOSE AXLE MAY LEAD TO AN UNSTABLE DRIVING BEHAVIOR OF YOUR
MOTORCYCLE
.
–AFTER MOUNTING THE REAR WHEEL, KEEP OPERATING THE REAR BRAKE UNTIL THE
PRESSURE POINT RETURNS
.
–IT IS VERY IMPORTANT TO KEEP THE BRAKE DISK FREE FROM OIL AND FATTY MATTERS,
EITHERWISE THE BRAKING EFFECTS WOULD BE STRONGLY REDUCED.
–T
IGHTEN THE COLLAR NUT WITH THE REQUIRED TORQUE
. A LOOSE WHEEL SPINDLE
MAY LEAD TO AN UNSTABLE BEHAVIOR OF YOUR MOTORCYCLE
.
Tires, air pressure
Tire type, tire condition, and air pressure level affect the way your motorcy-
cle rides, and they must therefore be checked whenever you are getting
ready to go anywhere on your motorcycle.
– Tire size can be found in the technical specifications and in their homolo-
gation certificate
– Tire condition has to be checked every time you want to ride your
motorcycle. Before leaving, check tires for punctures and nails or other
sharp objects that might have become embedded in them.
Refer to the specific regulations in your country for minimum tire tread
requirements. We recommend you replace the tires at the latest when
the tread is down to 2 mm (0.08 in).
– Tire pressure should be checked regularly on a “cold” tire. Proper pres-
sure ensures optimum driving comfort and extends the life of your tires.
WARNING
–DO NOT MOUNT TIRES WHICH HAVE NOT BEEN APPROVED BY KTM. OTHER TIRES
COULD HAVE ADVERSE EFFECTS ON THE WAY YOUR MOTORCYCLE BEHAVES
.
–
FRONT AND REAR WHEELS MAY ONLY BE FITTED WITH TIRES HAVING THE SAME TREAD
LAYOUT
. USE HOMOLOGATED TIRES
–FOR YOUR OWN SAFETY REPLACE DAMAGED TIRES IMMEDIATELY.
–W
ORN TIRES CAN HAVE A NEGATIVE EFFECT ON HOW YOUR MOTORCYCLE PER-
FORMS
, ESPECIALLY ON WET SURFACES
–IF AIR PRESSURE IS TOO LOW, ABNORMAL WEAR AND OVERHEATING OF THE TIRE CAN
RESULT
Checking spoke tension
The correct spoke tension is very important for the stability of the wheels
and thus for riding safety. A loose spoke causes the wheel to become unba-
lanced and before long other spokes will have come loose. Check spoke
tension, especially on a new motorcycle, in regular intervals. For checking,
tap on each spoke with the blade of a screwdriver (see photo). A clear tone
must be the result. Dull tones are indicators of loose spokes. If necessary,
have the spokes retightened and the wheel centered by a KTM dealer.
WARNING
S
POKES CAN TEAR IF YOU CONTINUE TO RIDE WITH THEM LOOSE
. T
HIS MAY LEAD TO AN
UNSTABLE HANDLING OF YOUR MOTORCYCLE
.
front rear
Off road 1,0 bar 1,0 bar
Road driver only 1,5 bar 2,0 bar
TIRES-AIR PRESSURE
