15 ELECTRICAL SYSTEM
122
E00360-10
Main work

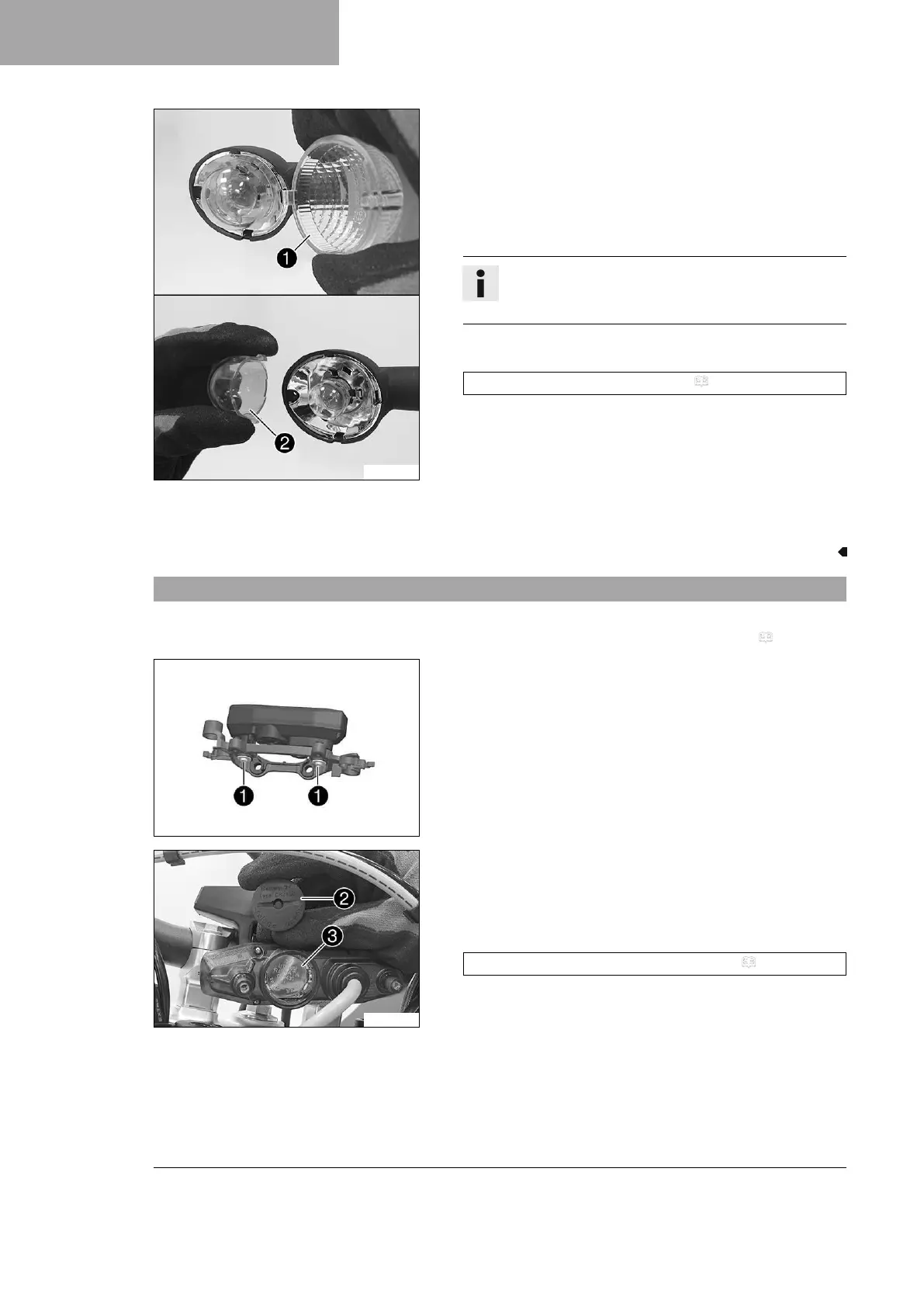

– Remove the screw on the rear of the turn signal housing.
–
Carefully remove turn signal glass
1
.
–
Lightly squeeze orange cap
2
in the area of the holding lugs
and take it off.
– Press the turn signal bulb lightly into the socket, turn it coun-
terclockwise by about 30°, and pull it out of the socket.
Info
Do not touch the reflector with your fingers and keep it
free from grease.
– Press the new turn signal bulb carefully into the socket and
turn it clockwise until it stops.
Turn signal (R10W / socket BA15s) ( p. 152)
– Mount the orange cap.
– Position the turn signal glass.
– Insert the screw and first turn counterclockwise until it
engages in the thread with a small jerk. Tighten the screw
lightly.
Finishing work
– Check that the turn signal system is functioning properly.
15.11 Changing the combination instrument battery
Preparatory work
– Remove the headlight mask with the headlight. ( p. 119)
W00332-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
V00371-10
–
Using a coin, turn protection cap
2
all the way counterclock-
wise and take it off.
–
Remove combination instrument battery
3
.
– Insert the combination instrument with the label facing
upward.
Combination instrument battery (CR 2430) ( p. 152)
– Check the O-ring of the protection cap for correct seating.
