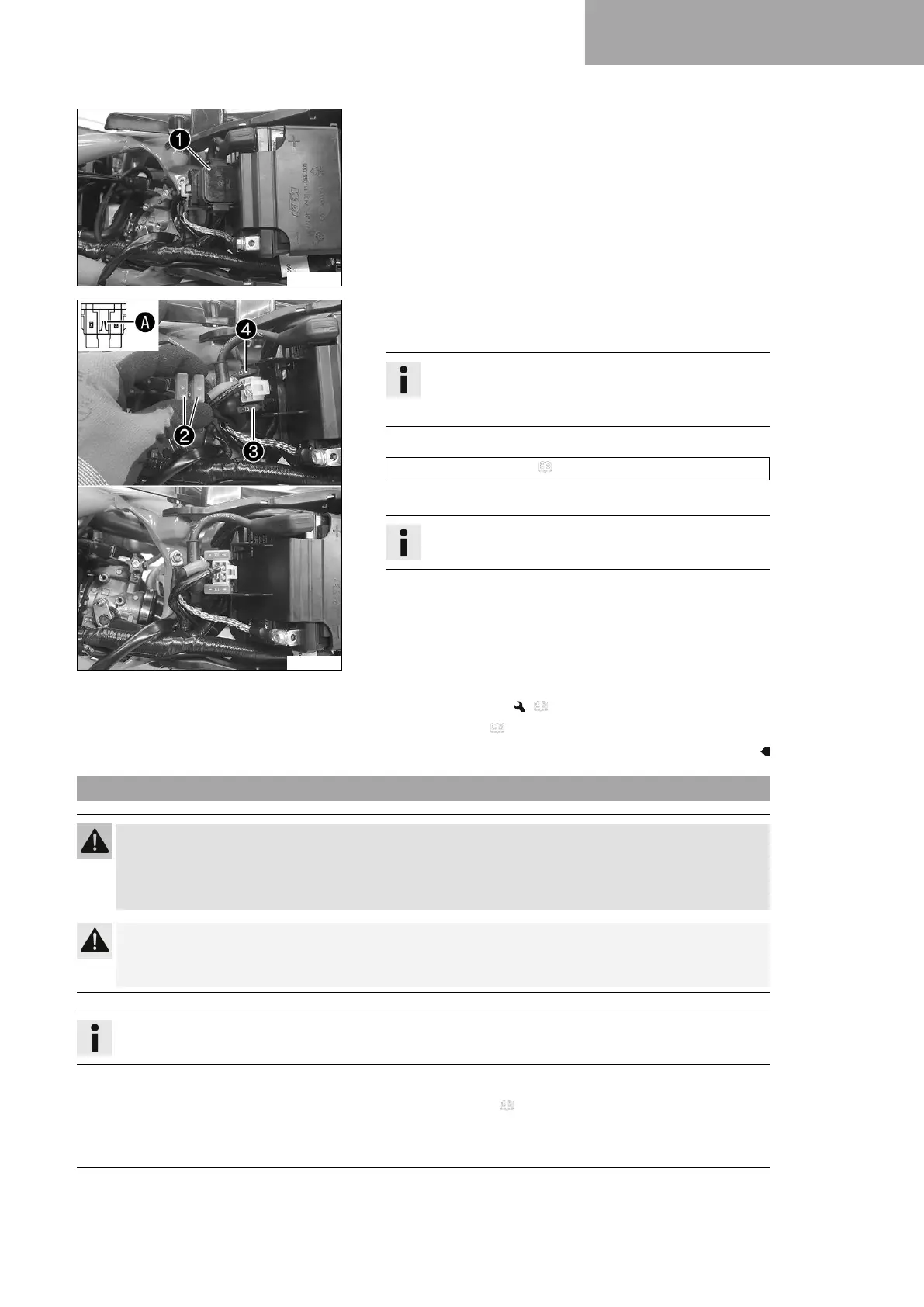

KTM 350 SX-F 2023 User Manual

ELECTRICAL SYSTEM 14
113
F03751-10
Main work
–
Pull starter relay
1
from the holder.
F03752-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109110) ( p. 143)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Install the fuel tank. ( p. 79)
– Mount the seat. ( p. 71)
14.5 Changing the fuse of the fuel pump
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Caution
Danger of burns The voltage regulator gets very hot when the vehicle is driven.
– Allow the voltage regulator to cool down before performing any work.
Info
The fuel pump is protected by the fuel pump fuse. This is located under the seat.
Preparatory work
– Remove the seat. ( p. 71)

KTM 350 SX-F 2023 Specifications

General

Engine Type	Single Cylinder, 4-Stroke
Displacement	349.7 cm³
Bore x Stroke	88 mm x 57.5 mm
Compression Ratio	14.4:1
Starter	Electric starter
Transmission	5-speed
Fuel System	Keihin EFI, throttle body 44 mm
Cooling	Liquid cooled
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
ABS	No
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 19"
Front Wheel Travel	310 mm
Rear Wheel Travel	300 mm
Ground Clearance	370 mm
Frame	Central double-cradle-type 25CrMo4 steel
Front Brake	260 mm disc brake
Rear Brake	220 mm disc brake
Wheelbase	1, 485 mm
