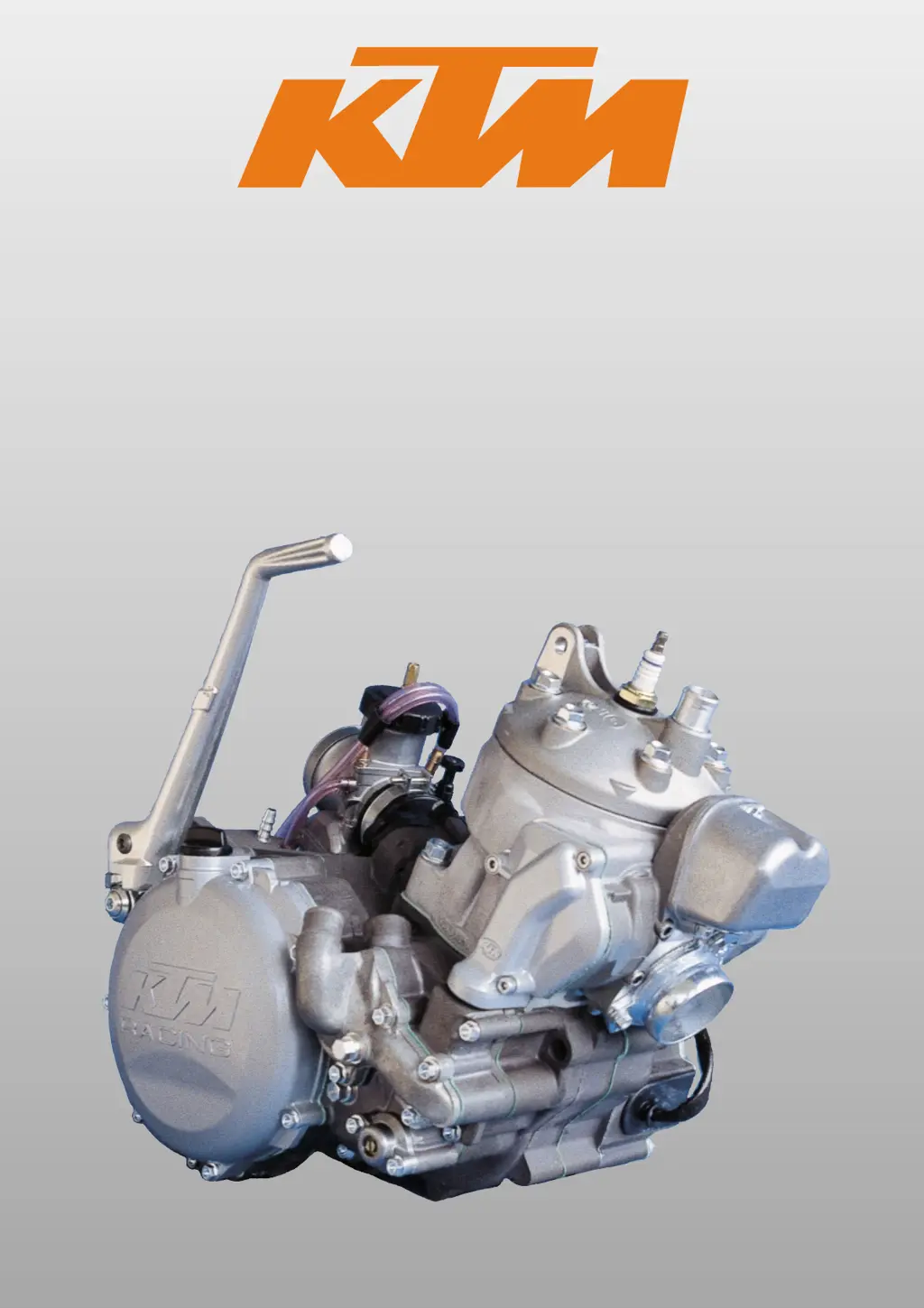

KTM 380 1998 User Manual (English)

Questions and Answers:

S
Sara BeckerAug 19, 2025
Why KTM 380 1998 Engine has not enough power?
- M
  Marcus RubioAug 19, 2025
  Your KTM Engine might lack power due to several reasons: * **Exhaust System**: Charred glass fiber yarn in the silencer (renew filling) or a damaged exhaust system (check for damage). * **Fuel and Air Supply**: An obstructed air filter (clean or renew it) or a partly interrupted/blocked fuel supply (blow through the fuel pipe and clean the carburetor). * **Mechanical Issues**: A control flap that doesn't work (check the control flap, joint rod, and centrifugal timer), loss of compression through a loose spark plug (tighten the spark plug), or insufficient preignition (check and adjust the ignition).
R
robert77Aug 22, 2025
How to fix KTM 380 1998 Engine overheating?
- M
  Marcus AndersonAug 22, 2025
  If your KTM Engine is overheating, consider these potential causes and solutions: * **Coolant Issues**: Insufficient coolant (top up and bleed the system), a cooling system that isn't properly bled (bleed it), or frothing in the cooling system (renew the coolant with a branded anti-freeze/anti-corrosive). * **Radiator**: Clogged radiator fins (clean them with a water jet). * **Hoses**: Pinched or kinked water hoses (replace them with correctly routed hoses). * **Timing**: Incorrect ignition timing due to loose stator screws (readjust timing and secure screws with Loctite 242), or an incorrect dimension "X" (measure and adjust to the correct specification).
U
uwhiteAug 26, 2025
What to do if KTM Engine ignition wire or spark plug connector damaged?
- J
  Jennifer NguyenAug 26, 2025
  If the ignition wire or spark plug connector is damaged on your KTM Engine, dismount the spark plug, connect the ignition cable, hold it to ground, and actuate the kickstarter. A strong spark must be produced at the spark plug. If no spark is produced, loosen the spark plug cap from the ignition cable, hold it about 5 mm from the ground, and actuate the kickstarter. If a spark now occurs, replace the spark plug cap. If no spark is produced, control the ignition system.
D
Deborah DavisAug 27, 2025
What causes KTM 380 1998 to sputter into the carburetor?
- M
  Melanie MillerAug 27, 2025
  If your KTM Engine sputters into the carburetor, it could be due to: * **Fuel Issues**: Lack of fuel (clean fuel pipes, examine tank aeration and clean). * **Incorrect Parts**: Spark plug with incorrect heat value (fit correct spark plug). * **Air Leaks**: Engine taking air out of control (check intake flange and carburetor if firmly setted).
E
evelyn54Aug 30, 2025
How to resolve KTM 380 1998 without idle running?
- F
  ftorresAug 30, 2025
  If your KTM Engine won't idle, the possible causes include: * **Adjustment Issues**: Idle adjusting screw out of adjustment (readjust idle running or replace idle adjusting screw). * **System Damage**: Ignition system damaged (examine ignition system). * **Wear**: Wear (overhaul engine).
M
Mr. Michael WilliamsSep 2, 2025
Why KTM Engine experiences high rpm misfiring?
- T
  Tyler CainSep 2, 2025
  High RPM misfiring in your KTM Engine can be caused by: * **Spark Plug Issues**: Incorrect heat range or low-quality spark plug (refer to the technical data section). * **Connector Problems**: Incorrect or faulty spark plug connector (test and/or replace with the correct type). * **Socket Connection**: Loose, corroded, or non-conductive ignition socket connector (check and seal with silicon).
L
lawrencerachelSep 5, 2025
Why KTM Engine revs not high and running with four stroke cycle?
- J
  John BakerSep 5, 2025
  If your KTM Engine revs are not high and it's running with a four-stroke cycle, the issues might be: * **Carburetor Problems**: Carburetor overflows if the level adjust is too high, or the float needle seating is dirty or enlarged (clean carburetor, if necessary replace float needle and adjust level). * **Loose Components**: Loose carburetor jets (tighten jets).
K
Kimberly KingSep 7, 2025
Why excessive oil escapes from KTM transmission breather tube?
- T
  Tiffany OwenSep 7, 2025
  Excessive oil escaping from the transmission breather tube in your KTM could be due to: * **Overfilling**: Excessive oil quantity in the transmission (correct the transmission oil level). * **Seal Issues**: A defect in the water pump shaft seal ring or right-hand crankshaft seal ring (replace the shaft seal ring and change gear oil, check coolant). * **O-Ring Leaks**: Silicon O-rings of the control roller or control flap leaking (replace the O-rings).
M
middletonjamesSep 12, 2025
Why KTM 380 1998 Engine emits white smoke (steam)?
- W
  whitneyjacksonSep 12, 2025
  If your KTM Engine is emitting white smoke (steam), it could be because the cylinder head or O-ring of the cylinder head gasket leaks. Check the cylinder head and replace the O-ring.
M
Mark MitchellSep 13, 2025
Why all switched on lamps blown out in KTM?
- D
  dawnburnsSep 13, 2025
  If all switched-on lamps are blown out in your KTM, the voltage regulator may be faulty. Control connections of voltage regulator and check voltage regulator.

KTM 380 1998 Specifications

General

Cooling System	Liquid cooled
Starting System	Kick Starter
Engine Type	2-stroke single cylinder
Lubrication	Premix
Ignition	Kokusan

Summary

General Information and Setup

Bleeding the Cooling System

Procedure for removing air from the motorcycle's cooling system after refilling.

Carburetor Adjustment Guide

Guidelines for adjusting the carburetor based on altitude and temperature for optimal engine performance.

Carburetor Definitions and Ranges

Explains terms like rich/lean mixture and describes different throttle ranges.

Checking the Float Level

Step-by-step guide to checking and setting the float level in the Keihin carburetor.

TVC System Setting Verification

How to check the timing of the TVC system's advance using a rev counter.

Required Special Tools

Lists and illustrates specialized tools required for maintenance and repair tasks.

Engine Removal and Refitting Procedures

Engine Removal Steps

Detailed steps for safely removing the engine from the motorcycle frame.

Engine Refitting Steps

Steps for reinstalling the engine into the motorcycle frame and reconnecting components.

Engine Dismantling Guide

Draining Gear Oil

Instructions for draining the engine's gear oil before further dismantling.

Cylinder Head, Cylinder, Piston Removal

Steps for removing the cylinder head, cylinder, and piston assembly.

Clutch Cover Removal

Guide to removing the clutch cover and gasket.

Parting Engine Housing Halves

Method for separating the engine crankcase halves safely.

Crankshaft Removal

How to remove the crankshaft from the engine casing.

Servicing Individual Engine Components

Right Crankcase Half Assembly

Instructions for fitting bearings and seals into the right-hand engine housing half.

Left Crankcase Half Assembly

Instructions for fitting bearings and seals into the left-hand engine housing half.

Crankshaft Servicing Procedures

Procedures for checking and replacing crankshaft components and bearings.

Piston Inspection and Wear Check

Guidelines for checking piston condition, ring grooves, and ring end gap.

Transmission Component Servicing

Procedures for checking and assembling transmission gears, shafts, and related parts.

Clutch Component Wear Check

How to check clutch discs, springs, pressure cap, and hubs for wear.

Kokusan Ignition System Checks

Testing procedures for the Kokusan ignition coil, stator, and pulse generator.

SEM Ignition System Checks

Testing procedures for the SEM ignition coil, stator, and related components.

Engine Assembly Procedures

Crankshaft Installation

Steps for inserting the crankshaft into the crankcase assembly.

Transmission Assembly Steps

How to install the mainshaft, countershaft, and shift forks correctly.

Engine Housing Assembly

Procedure for joining the engine crankcase halves and installing gaskets.

Clutch Disc Mounting

Instructions for installing clutch discs, pressure cap, and springs.

Cylinder Head Installation

Steps for fitting the cylinder head, O-rings, and tightening bolts.

SEM Ignition Point Adjustment

How to set the ignition timing for the SEM system using a dial gauge.

Electrical System Checks

Tympanium Voltage Regulator Check

Procedure for checking the Tympanium voltage regulator for proper function.

Shindengen Voltage Regulator-Rectifier Test

Steps to test the Shindengen voltage regulator-rectifier unit.

Kokusan Voltage Regulator Troubleshooting

Troubleshooting common issues with the Kokusan voltage regulator.

Capacitor Testing Procedure

Method for checking the capacitor's condition using a simple test lamp setup.

SEM Ignition Coil Checks

Note on testing SEM ignition coils, recommending specialized equipment.

Kokusan Ignition Coil Resistance Test

How to measure resistance values for the Kokusan ignition coil using an ohmmeter.

CDI Unit Connection Check

Advice on checking CDI unit connections and the need for specialized testing equipment.

Electrical Wiring Diagrams

Reference to Chapter 9 for detailed electrical wiring diagrams.

Troubleshooting Common Issues

Engine Fails to Start

Diagnosing and resolving issues when the engine does not start.

Engine Has Not Enough Power

Identifying causes and solutions for reduced engine power output.

Engine Overheating Causes

Troubleshooting steps for engine overheating issues, including cooling system checks.

White Smoke Emission Diagnosis

Diagnosing and fixing the cause of white smoke, often related to gaskets.

Technical Data and Maintenance Schedule

Engine Technical Data (All Models)

Specifications for engine design, displacement, bore, stroke, and fuel requirements.

USA Engine Technical Data

Technical specifications specific to USA market models, including ignition and cooling.

Periodic Lubrication and Maintenance Schedule

Comprehensive schedule of maintenance tasks and intervals for rider and dealer.

Basic Carburetor Settings Table

Table detailing default carburetor settings for various models and regions.

Wiring Diagrams

Wiring Diagram Component Glossary

Glossary of electrical components and their language translations used in diagrams.

EGS Model Wiring Diagram

Schematic illustrating the electrical connections for EGS models.

EXC Model Wiring Diagram

Schematic illustrating the electrical connections for EXC models.
