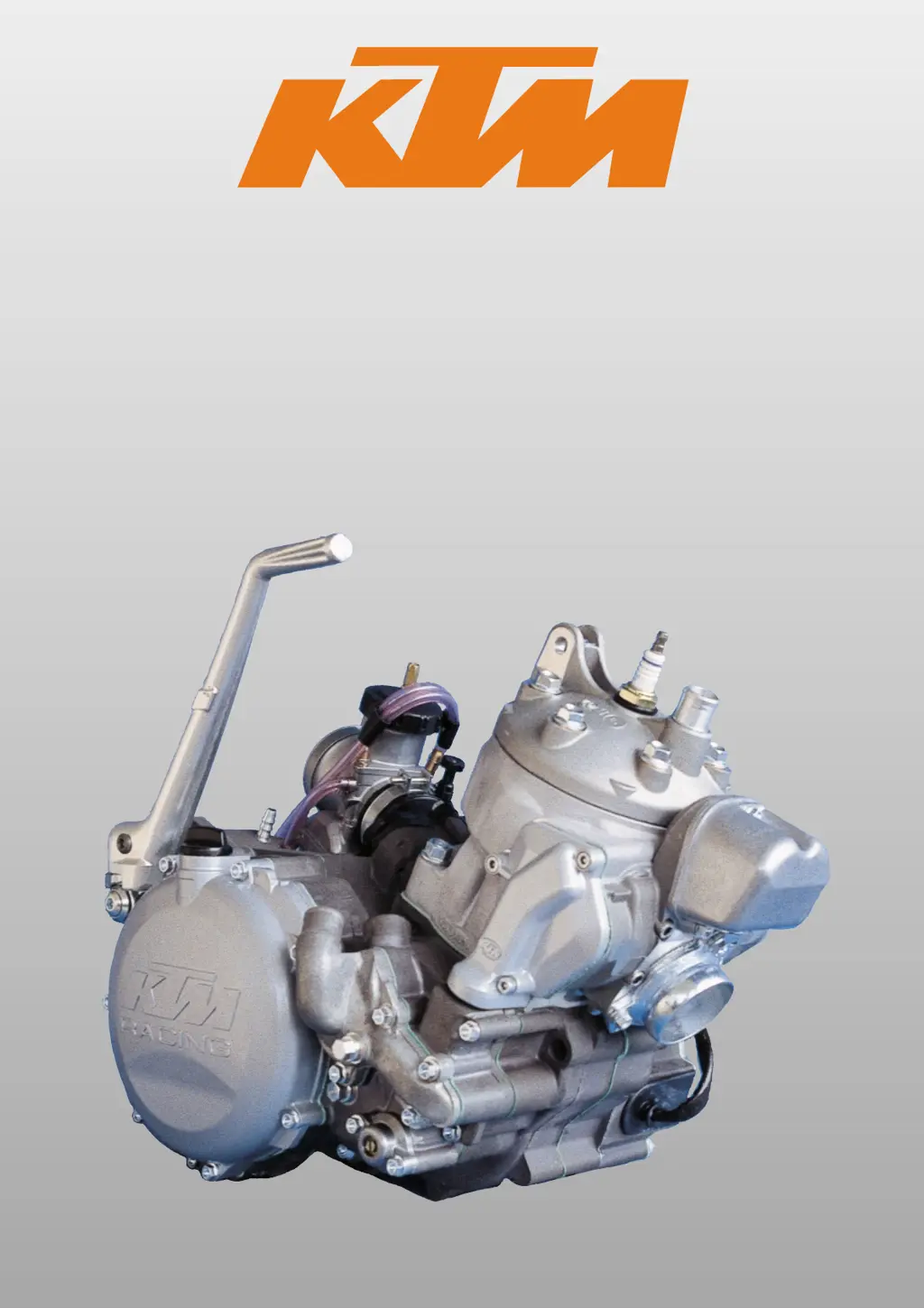

‘98
7. 97 ART. NR. 3.205.20
250 / 300 / 380
REPARATURANLEITUNG MOTOR
REPAIR MANUAL ENGINE
MANUALE DI RIPARAZIONE MOTORE
MANUEL DE RÉPARATION MOTEUR
MANUAL DE REPARACIÓN MOTOR

Table of Contents

Questions and Answers

  • M
    Michelle ParrishAug 20, 2025
    Why KTM Engine has not enough power?
    • J
      Julia BrownAug 20, 2025
      Your KTM Engine might lack power due to several reasons: * **Exhaust System**: Charred glass fiber yarn in the silencer (renew filling) or a damaged exhaust system (check for damage). * **Fuel and Air Supply**: An obstructed air filter (clean or renew it) or a partly interrupted/blocked fuel supply (blow through the fuel pipe and clean the carburetor). * **Mechanical Issues**: A control flap that doesn't work (check the control flap, joint rod, and centrifugal timer), loss of compression through a loose spark plug (tighten the spark plug), or insufficient preignition (check and adjust the ignition).
  • J
    Jeffrey ChristensenAug 23, 2025
    How to fix KTM Engine overheating?
    • C
      Cory SullivanAug 23, 2025
      If your KTM Engine is overheating, consider these potential causes and solutions: * **Coolant Issues**: Insufficient coolant (top up and bleed the system), a cooling system that isn't properly bled (bleed it), or frothing in the cooling system (renew the coolant with a branded anti-freeze/anti-corrosive). * **Radiator**: Clogged radiator fins (clean them with a water jet). * **Hoses**: Pinched or kinked water hoses (replace them with correctly routed hoses). * **Timing**: Incorrect ignition timing due to loose stator screws (readjust timing and secure screws with Loctite 242), or an incorrect dimension "X" (measure and adjust to the correct specification).
  • C
    Connie GibsonAug 26, 2025
    What to do if KTM 300 1998 Engine ignition wire or spark plug connector damaged?
    • M
      Micheal JacksonAug 26, 2025
      If the ignition wire or spark plug connector is damaged on your KTM Engine, dismount the spark plug, connect the ignition cable, hold it to ground, and actuate the kickstarter. A strong spark must be produced at the spark plug. If no spark is produced, loosen the spark plug cap from the ignition cable, hold it about 5 mm from the ground, and actuate the kickstarter. If a spark now occurs, replace the spark plug cap. If no spark is produced, control the ignition system.
  • A
    Angela SnyderAug 28, 2025
    What causes KTM 300 1998 Engine to sputter into the carburetor?
    • M
      Mark HarrisAug 28, 2025
      If your KTM Engine sputters into the carburetor, it could be due to: * **Fuel Issues**: Lack of fuel (clean fuel pipes, examine tank aeration and clean). * **Incorrect Parts**: Spark plug with incorrect heat value (fit correct spark plug). * **Air Leaks**: Engine taking air out of control (check intake flange and carburetor if firmly setted).
  • A
    alexanguyenAug 31, 2025
    How to resolve KTM 300 1998 without idle running?
    • K
      Kenneth FritzAug 31, 2025
      If your KTM Engine won't idle, the possible causes include: * **Adjustment Issues**: Idle adjusting screw out of adjustment (readjust idle running or replace idle adjusting screw). * **System Damage**: Ignition system damaged (examine ignition system). * **Wear**: Wear (overhaul engine).
  • T
    tguerraSep 2, 2025
    Why KTM 300 1998 Engine experiences high rpm misfiring?
    • R
      riveraphillipSep 2, 2025
      High RPM misfiring in your KTM Engine can be caused by: * **Spark Plug Issues**: Incorrect heat range or low-quality spark plug (refer to the technical data section). * **Connector Problems**: Incorrect or faulty spark plug connector (test and/or replace with the correct type). * **Socket Connection**: Loose, corroded, or non-conductive ignition socket connector (check and seal with silicon).
  • S
    Sherry PruittSep 5, 2025
    Why KTM Engine revs not high and running with four stroke cycle?
    • N
      Natalie MorrisSep 5, 2025
      If your KTM Engine revs are not high and it's running with a four-stroke cycle, the issues might be: * **Carburetor Problems**: Carburetor overflows if the level adjust is too high, or the float needle seating is dirty or enlarged (clean carburetor, if necessary replace float needle and adjust level). * **Loose Components**: Loose carburetor jets (tighten jets).
  • L
    Lori TerrellSep 8, 2025
    Why excessive oil escapes from KTM transmission breather tube?
    • P
      Patrick BaileySep 8, 2025
      Excessive oil escaping from the transmission breather tube in your KTM could be due to: * **Overfilling**: Excessive oil quantity in the transmission (correct the transmission oil level). * **Seal Issues**: A defect in the water pump shaft seal ring or right-hand crankshaft seal ring (replace the shaft seal ring and change gear oil, check coolant). * **O-Ring Leaks**: Silicon O-rings of the control roller or control flap leaking (replace the O-rings).
  • A
    April SpearsSep 12, 2025
    Why KTM 300 1998 emits white smoke (steam)?
    • T
      Terrence MorganSep 12, 2025
      If your KTM Engine is emitting white smoke (steam), it could be because the cylinder head or O-ring of the cylinder head gasket leaks. Check the cylinder head and replace the O-ring.
  • J
    jessicabrownSep 14, 2025
    Why all switched on lamps blown out in KTM?
    • B
      Brenda RodriguezSep 14, 2025
      If all switched-on lamps are blown out in your KTM, the voltage regulator may be faulty. Control connections of voltage regulator and check voltage regulator.

Summary

Introduction and General Information

General Safety Precautions

Covers essential safety advice, warnings, and useful tips for manual usage.

Use of Original KTM Spare Parts

Emphasizes the importance of using genuine KTM spare parts for optimal performance and warranty.

Quality Management System Certification

Information on KTM's ISO 9001 quality system certification.

General Information

Bleeding the Cooling System

Step-by-step guide for correctly bleeding the motorcycle's cooling system after maintenance.

Carburetor Adjustment Basics

Provides fundamental information for adjusting the motorcycle's carburetor for various conditions.

Definitions and Adjustments

Explains engine operation ranges and procedures for checking float level.

TVC System Setting Procedure

Details the process for checking and adjusting the TVC system's advance timing.

Special Tools Required

Lists and illustrates essential specialized tools needed for maintenance tasks.

Engine Removal and Refitting

Engine Removal Procedure

Step-by-step instructions for safely removing the engine from the motorcycle frame.

Engine Refitting Procedure

Detailed steps for correctly reinstalling the engine back into the motorcycle frame.

Engine Dismantling Procedures

Draining Gear Oil

Instructions for draining the engine's gear oil before disassembly.

Cylinder Assembly Removal

Procedure for removing the cylinder head, cylinder, and piston assembly.

Clutch System Service

Covers removal and servicing of the clutch cover and clutch discs.

Primary Drive Removal

Steps for dismantling the primary drive components, including the gear.

Kickstarter and Shift System Dismantling

Details on how to dismantle the kickstarter and shift mechanism.

Ignition System Component Removal

Instructions for removing ignition system components like stator and flywheel.

Engine Housing Separation

Guide on how to carefully separate the engine housing halves.

Crankshaft Removal

Steps for removing the crankshaft from the engine case.

Servicing Individual Engine Components

Housing Halves Bearing Installation

Instructions for installing bearings into the right and left engine housing halves.

Crankshaft, Piston, and Cylinder Checks

Procedures for checking wear on crankshaft, piston, rings, and cylinder.

Cylinder Exhaust Control System Service

Details on dismantling, cleaning, and checking the cylinder exhaust control system.

Ignition System Checks and Adjustments

Guidance on checking spark plugs, ignition coils, and adjusting ignition timing.

Clutch Assembly and Outer Hub Replacement

Covers clutch wear checks, assembly, and replacing the outer clutch hub.

Transmission and Shift Mechanism Service

Instructions for assembling transmission gears and servicing the shift mechanism.

Engine Assembly Procedures

Crankshaft and Transmission Assembly

Steps for assembling the crankshaft and transmission components.

Engine Housing Assembly

Procedure for assembling the engine housing halves with gaskets and seals.

Clutch and Kickstarter Assembly

Guidance on installing the clutch and kickstarter mechanisms.

Piston and Cylinder Installation

Instructions for installing the piston and cylinder, including dimension adjustments.

Cylinder Head and Reed Valve Assembly

Steps for mounting the cylinder head and reed valve housing.

Ignition System Mounting and Timing

Covers mounting ignition components and adjusting the ignition timing point.

Electrical System Checks

Voltage Regulator Checks

Procedures for testing voltage regulators and regulator-rectifiers for proper function.

Capacitor and Ignition Coil Testing

Guidance on checking the capacitor and ignition coils using an ohmmeter.

CDI Unit Functionality

Information on checking the CDI unit, noting limitations of standard testing.

Troubleshooting Guide

Trouble Analysis and Remedies

A chart to diagnose and resolve common engine problems based on symptoms.

Technical Data and Maintenance Schedule

Engine Technical Specifications

Detailed technical data for engine design, dimensions, and performance parameters.

Torque Specs, Gaskets, and Carburetor Settings

Lists tightening torques, gasket thicknesses, and basic carburetor settings.

Periodic Lubrication and Maintenance

Schedule for regular maintenance tasks, lubrication, and inspections.

Wiring Diagrams and Component Identification

Wiring Schematics (Europe Models)

Electrical wiring diagrams and component legends for European market models.

Wiring Schematics (USA;Sixday Models)

Electrical wiring diagrams and component legends for USA and Sixday models.

KTM 300 1998 Specifications

General IconGeneral
Starting SystemKickstarter
Engine type2-stroke single-cylinder
Bore x Stroke72 mm x 72 mm
Cooling systemLiquid cooled
Fuel systemCarburetor
Lubrication SystemPremix
IgnitionCDI
