4
11

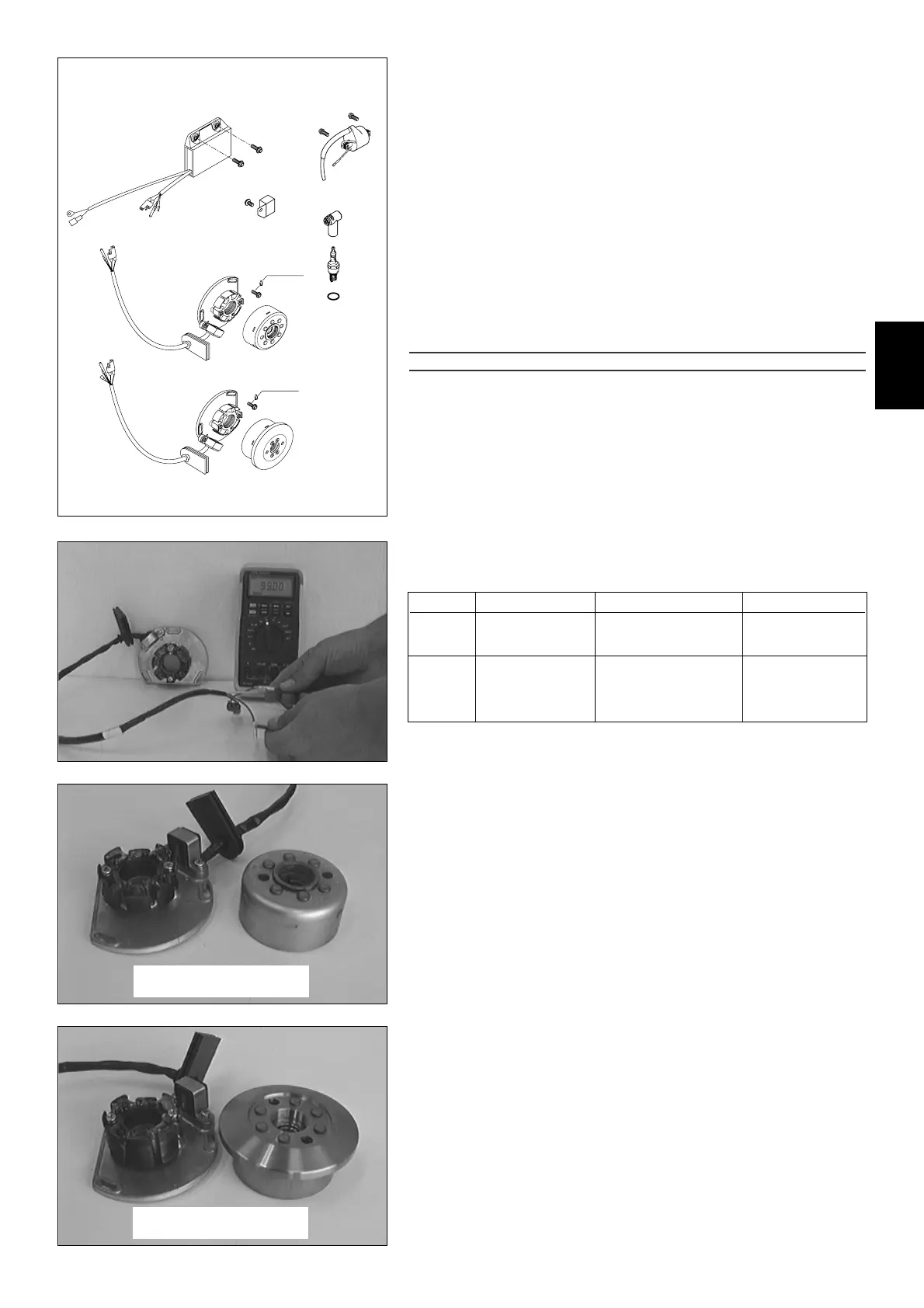

4.20 Ignition (Kokusan)
General information
The measurements described below will only reveal severe problems. Coil short cir-
cuits leading to weak ignition sparks or low generator output, respectively, can only
be detected with the help of an ignition test bench. In the case of malfunction
always check the cables and the plug and socket connections of the ignition system
first.
Make sure to select the correct measuring range when performing measurements.
4.20.1 Spark plug (NGK BR 8 ECM)
– Set the electrode distance.
E
LECTRODE DISTANCE: 0.60 MM (0.024 IN)
I
NSULATOR
Check for cracks and fissures.
!
CAUTION
!
A
LWAYS USE A SPARK PLUG WITH RESISTOR
. OTHERWISE PROBLEMS CAN OCCUR IN THE CDI
UNIT.
4.20.2 Check stator and pulse generator (Kokusan)
Use an ohmmeter to perform the following measurements:
N
OTE: THE MEASURING MUST BE PERFORMED AT A TEMPERATURE OF 20° C. OTHERWISE SIG-
NIFICANT DEVIATIONS MUST BE EXPECTED
.
R
EPLACE THE STATOR IF THE MEASURED VALUES DEVIATE SIGNIFICANTLY FROM THE SETPOINT
VALUES
.
IGNITION MEASURE CABLE COLOURS RESISTANCE
2K-1 Pulser coil red – green 100 Ω 20%
Exciter
black/red – red/white
25 Ω 20%
2K-2 Pulser coil red – green 100 Ω 20%
Exciter
black/red – red/white
25 Ω 20%
Charge coil ground – yellow 0,75 Ω 20%
Kokusan 2K-1
Kokusan 2K-2
