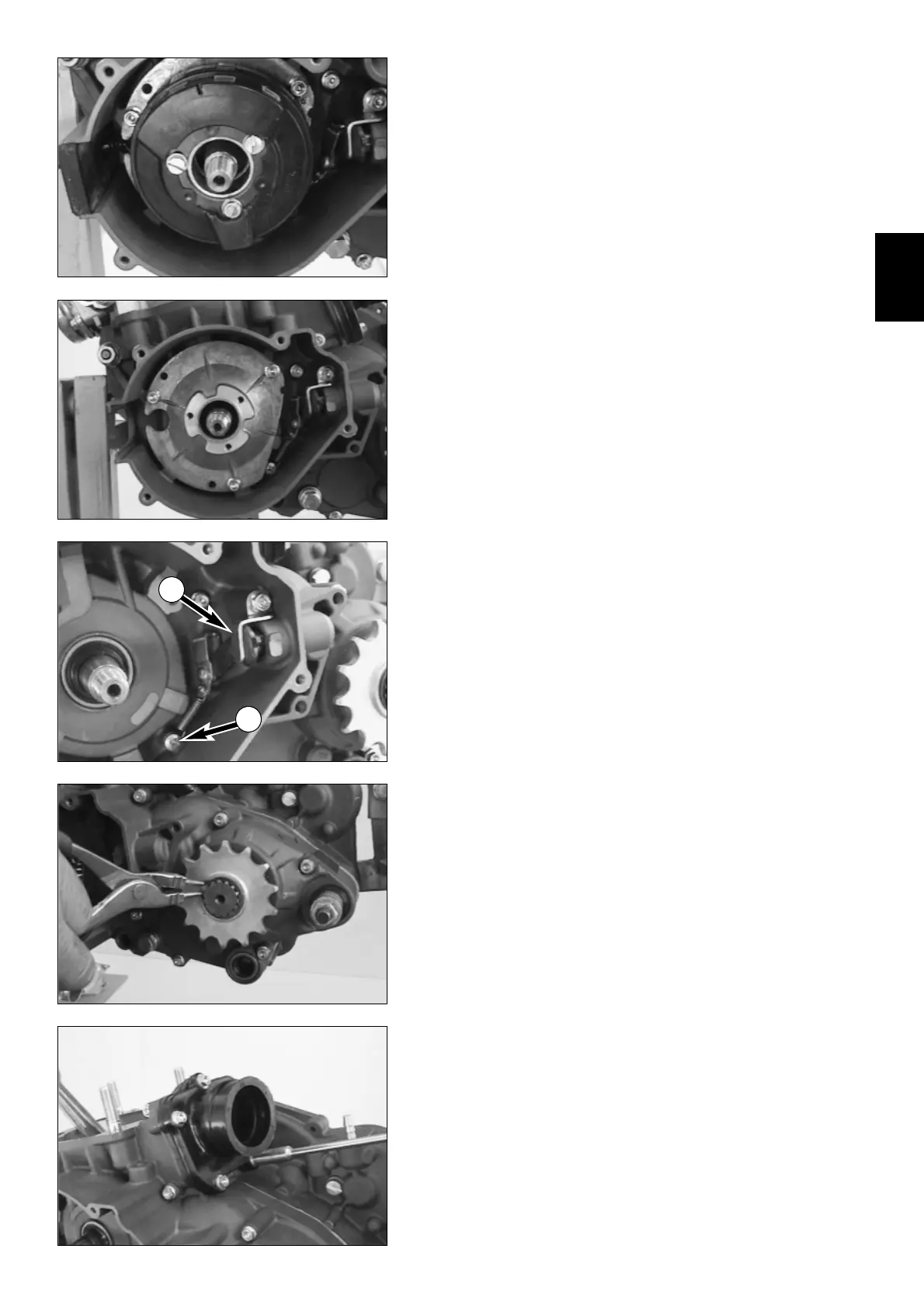

3.9 Ignition system (SEM)
– Remove ignition cover and gasket.
– Hold the flywheel with the special tool and undo the collar nut.
– Place protective cap on crankshaft thread.
– Screw flywheel extractor in position and remove flywheel.
– Unscrew screws and remove stator.
– Loosen collar srews and remove base blate.
3.10 Clutch release shaft
– Unhook clutch cable.
– Remove collar screws and retaining bracket
1
.
– Unscrew screw
2
.
–
Turn clutch release shaft approx. 70 degrees anti-clockwise and pull out of housing.
3.11 Engine sprocket
– Remove circlip from countershaft using circlip pliers.
– Slide off engine sprocket, distance bushing and O-ring.
3.12 Intake flange, reed valve housing
– Remove the 5 collar screws.
– Remove intake flange and reed valve housing.
3
5
1
2
