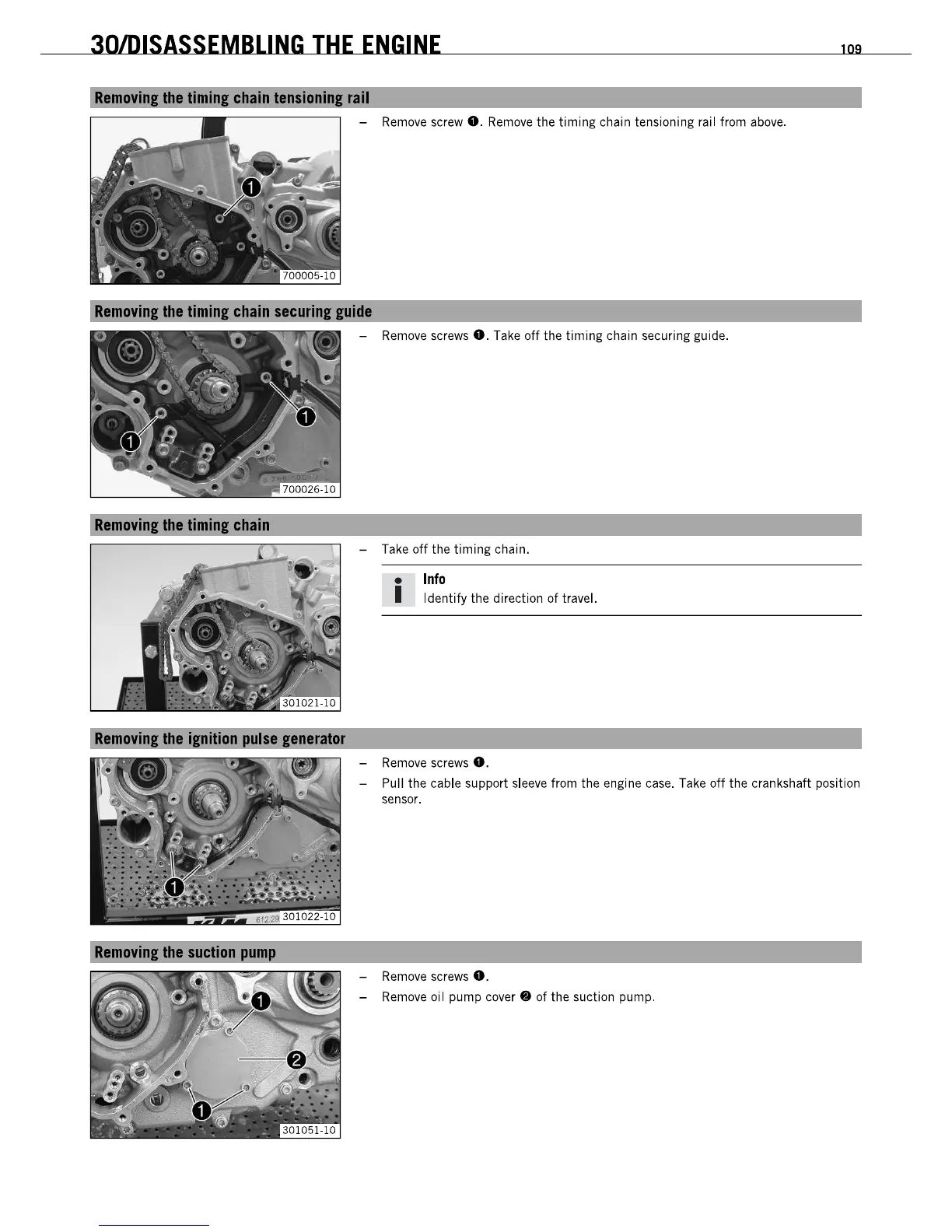

301DISASSEMBLING THE ENGINE 109
- Remove screw e. Remove the timing chain tensioning rail from above.
- Remove screws e. Take off the timing chain securing guide.
Removina tIIa timin chain
- Take off the timing chain.
• Info
I Identify the direction of travel.
- Remove screws e.
- Pull the cable support sleeve from the engine case. Take off the crankshaft position
sensor.
- Remove screws e.
- Remove oil pump cover e of the suction pump.
301DISASSEMBLING THE ENGINE 109
- Remove screw e. Remove the timing chain tensioning rail from above.
- Remove screws e. Take off the timing chain securing guide.
Removina tIIa timin chain
- Take off the timing chain.
• Info
I Identify the direction of travel.
- Remove screws e.
- Pull the cable support sleeve from the engine case. Take off the crankshaft position
sensor.
- Remove screws e.
- Remove oil pump cover e of the suction pump.
