OPERATION INSTRUMENTS »

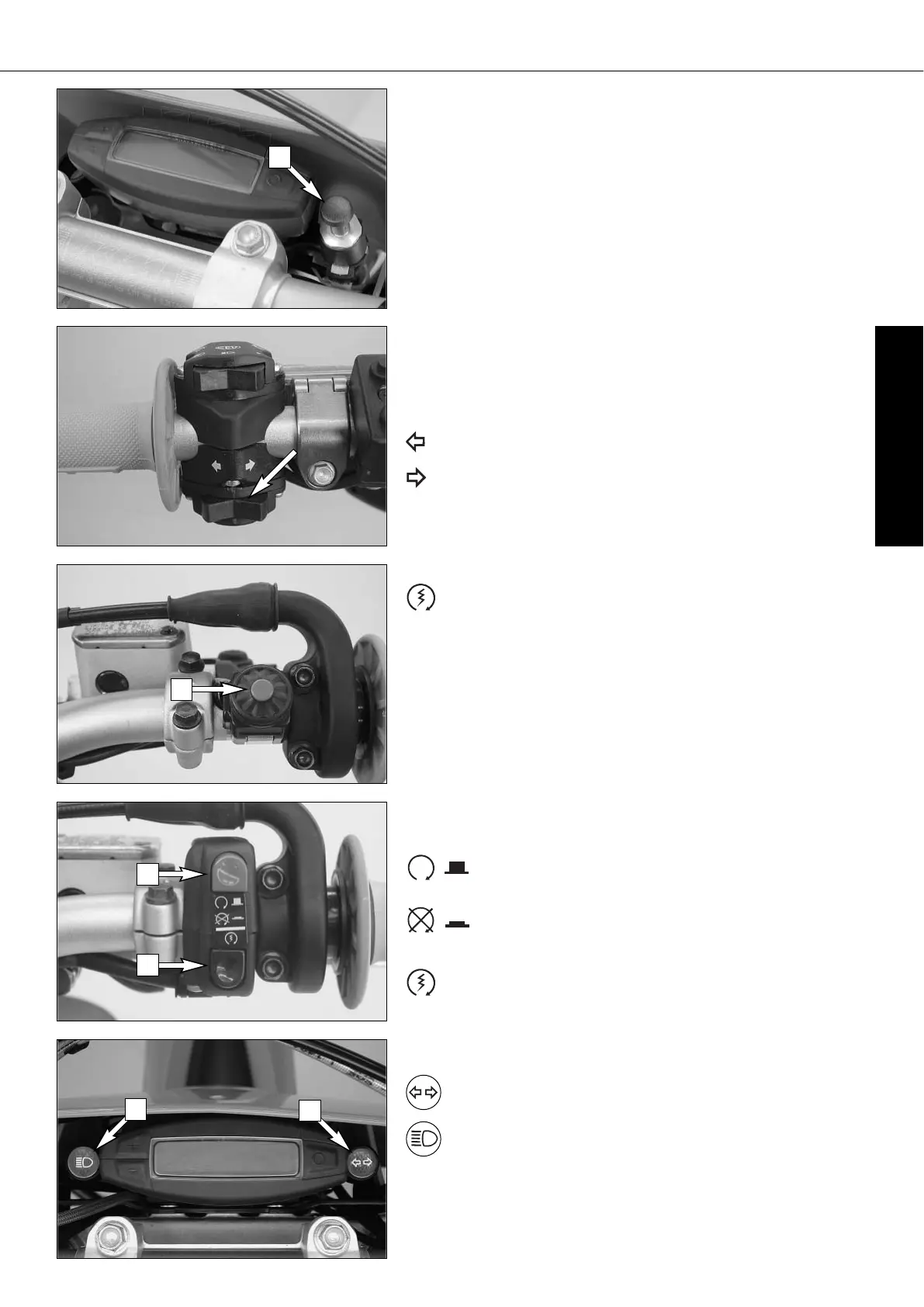

Headlamp switch (EXC USA)
In this model the headlamp is switched on with the pull switch [1].
Flasher switch
The flasher switch is a separate unit and is mounted on the left portion of the
handlebar.
The wire harness is designed in a way that whenever you want to use your
bike off-road, you can dismount the entire turn indicator system without
affecting the function of the remaining electrical system.
Flasher left
Flasher right
Starter button (EXC)
Pushing the black starter button [2] will actuate the E-starter.
Emergency OFF switch (EXC Australia)
The red emergency-OFF switch [3] is arranged adjacent to the throttle grip.
In this position, the E-starter is operational and the engine can
be started.
In this position, the E-starter and ignition circuits are
interrupted.The E-starter cannot be actuated, and the engine will
not start, not even if you attempt to start it with the kickstarter.
Pushing the black starter button [4] will actuate the E-starter.
2
3
4
5
6
Indicator lamps
The green control lamp [5] flashes in the same rhythm as the flash-
ing indicator when the indicator is working.
The blue control lamp [6] lights up when the high beam is on.
