ENGLISH
10

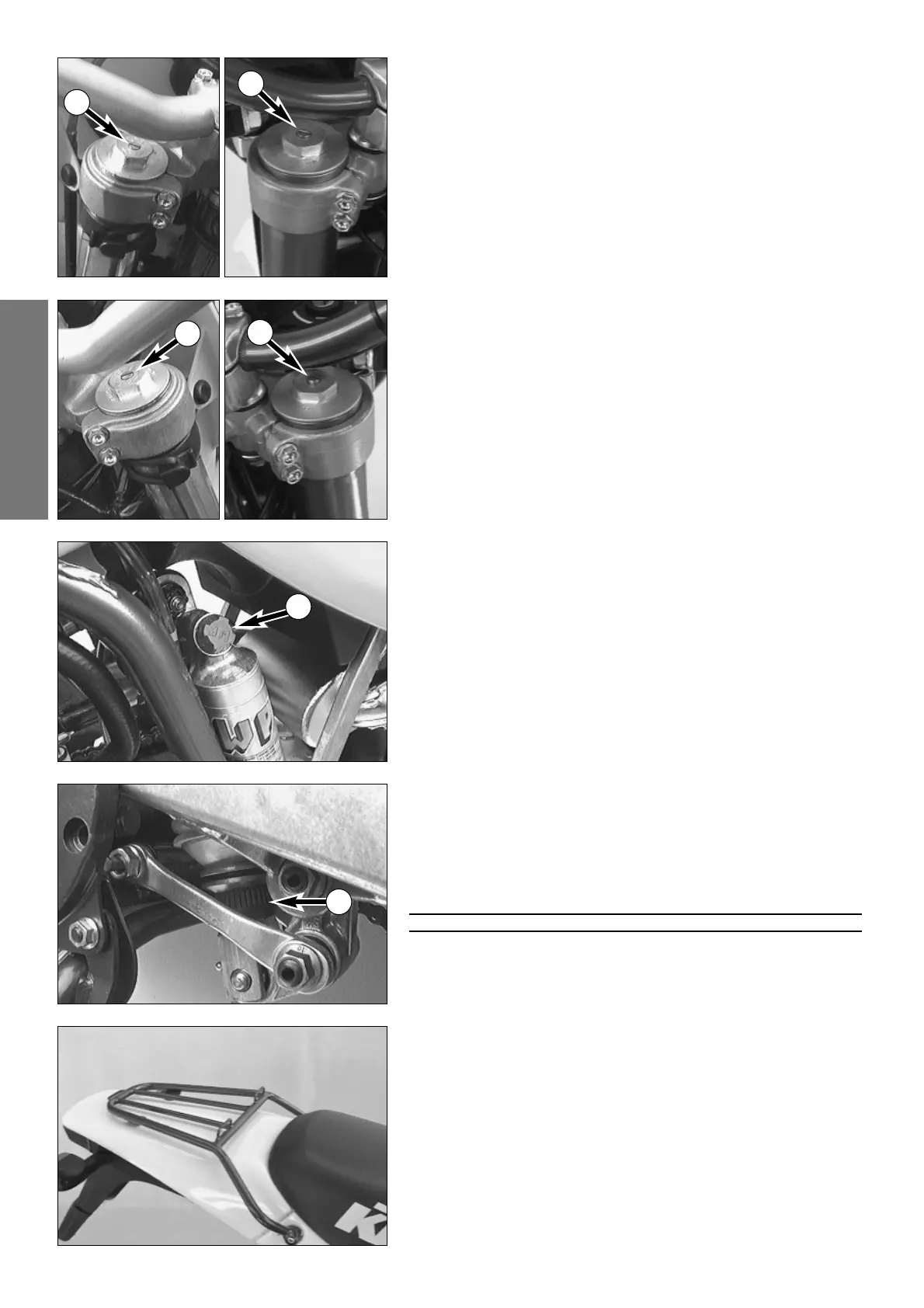

Compression damping of fork
The compression damping mechanism is built into the left fork tube. It only regu-
lates the degree of damping during compression.
By using the knob
1 (COM), the degree of damping of the compression can be
adjusted. Turn the knob clockwise to increase damping, turn it counterclockwise
to reduce damping during compression.
BASIC SETTING:
– turn rotary knob clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant type of fork
– WP09.18.S7.40 8 clicks
WP09.18.S7.44 12 clicks
WP06.18.Q7.12 (K4T96L3) 10 clicks
Rebound damping of fork
The rebound damping mechanism is built into the right fork tube. It only regulates
the degree of damping during rebounding.
By using the knob
2 (REB), the degree of damping of the rebound can be adju-
sted. Turn the knob clockwise to increase damping, turn it counterclockwise to
reduce damping during rebounding.
BASIC SETTING:
– turn rotary knob clockwise as far as it will go
– turn it back by as many clicks as are specified for the relevant type of fork
– WP09.18.S7.40 12 clicks
WP09.18.S7.44 12 clicks
WP06.18.Q7.12 (K4T96L3) 14 clicks
Compression damping of shock absorber
With the knob 3 the degree of damping of the compression can be adjusted to 7
positions. Turn the knob counterclockwise to increase damping, turn it clockwise
to reduce damping during rebounding.
WP01.18.S7.98 3
WP01.18.Q7.82 3
WP01.18.Q7.81 (K4T96S) 3
Rebound damping of shock absorber
With the setting wheel 4 the degree of damping of the rebound can be adjusted
to 11 positions. Turn the knob to the left side to increase damping, turn it to the
right side to reduce damping during rebounding.
WP01.18.S7.98 5
WP01.18.Q7.82 4
WP01.18.Q7.81 (K4T96S) 4
WARNING
–N
EVER CHANGE DAMPING BETWEEN THE TEST DRIVES MORE THAN 2 CLICKS.
–
T
HE DAMPING UNITY OF THE SHOCK ABSORBER IS FILLED WITH HIGH COMPRESSED NITROGEN
.
NEVER TRY TO TAKE THE SHOCK ABSORBER APART OR TO DO ANY MAINTENANCE WORK
YOURSELF
. SEVERE INJURIES COULD BE THE RESULT.
Baggage rack (EGS)
The baggage rack may be loaded with up to 10 kg. The two lateral hoops serve as
handles for the passenger
3
4
2
1
1
2
