ENGLISH
5

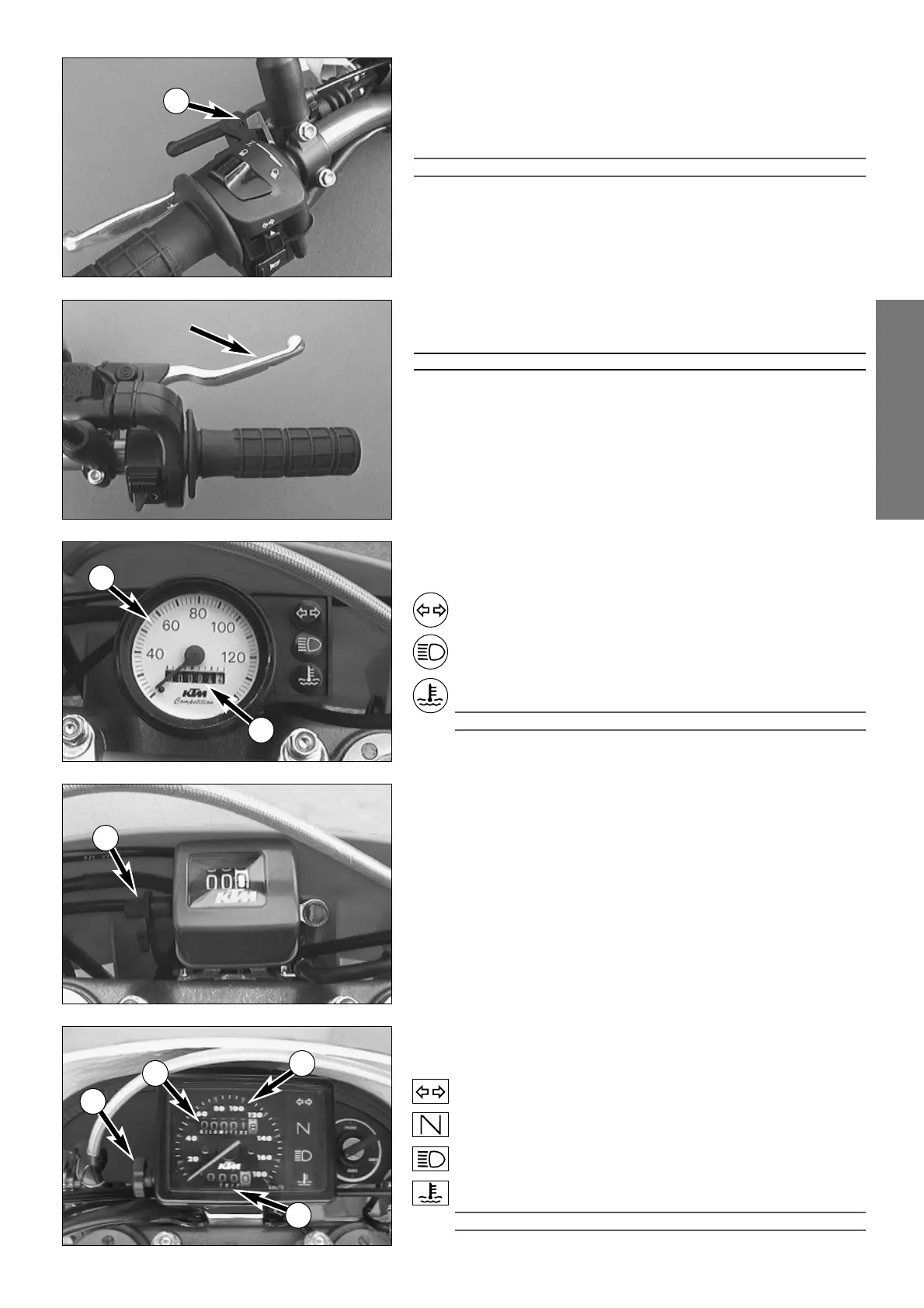

Choke lever (EGS)
If the choke lever 1 is pulled backwards, a bore will be opened in the carburetor
through which the engine may draw in additional fuel. This produces a „rich“
fuel/air mixture necessary for cold start. If the choke lever is pushed forward up
to the stop, the bore will be closed again. In this position the choke cable must
have a play of approx. 2mm.
!
CAUTION
!
I
F THERE IS NO PLAY IN THE CHOKE CABLE, THE COLD STARTER SYSTEM CANNOT BE COMPLE-
TELY CLOSED. THIS RESULTS IN HIGH FUEL CONSUMPTION, AN UNEVEN RUNNING ENGINE,
AN EXTREME WEAR OF PISTON AND CYLINDER.
Hand brake lever
The hand brake lever is mounted on the handle bars on the right and actuates the
front wheel brake.
WARNING
I
F THE RESISTANCE IN THE HAND BRAKE LEVER OR FOOT BRAKE PEDAL FEELS
“SPONGY” (TOO
MUCH GIVE
), THIS IS AN INDICATION THAT SOMETHING IS WRONG WITH THE BRAKE SYSTEM.
D
ON’T RIDE YOUR MOTORCYCLE ANYMORE WITHOUT FIRST HAVING THE BRAKE SYSTEM LOO-
KED OVER BY A KTM DEALER.
Speedometer, control lamps (SC)
The mileage indicator A in the speedometer 2 indicates overall mileage.
The green control lamp flashes when the indicator is working in the same
rhythm as the flashing indicator.
The blue control lamp lights up when the high beam is on.
The red cooling liquid temperature warning lamp lights up at a cooling
liquid temperature of 110°C.
!
CAUTION
!
P
AY ATTENTION TO THE DIRECTIONS IN THE CHAPTER
„
COOLING SYSTEM
“
ON PAGE
26.
Odometer (SC - USA)
The odometer is a mileage indicator and can be set to 0 by means of the adjust-
ment wheel
3.
Speedometer, control lamps (EGS)
The mileage indicator B in the speedometer 4 indicates overall mileage. The day
mileage indicator C can be set to 0 by means of the adjustment wheel D. Turn
the adjustment wheel forward until only zeros can be seen in the display.
The green control lamp flashes when the indicator is working in the same
rhythm as the flashing indicator.
The green control lamp lights up when the gear is switched to idle.
The blue control lamp lights up when the high beam is on.
The red cooling liquid temperature warning lamp lights up at a cooling
liquid temperature of 110°C.
!
CAUTION
!
P
AY ATTENTION TO THE DIRECTIONS IN THE CHAPTER
„
COOLING SYSTEM
“
ON PAGE
27.
1
A
2
3
B
4
C
D
