KTM 500EXC-F 2023 User Manual

SERVICE WORK ON THE CHASSIS 12
75
V00341-10
–

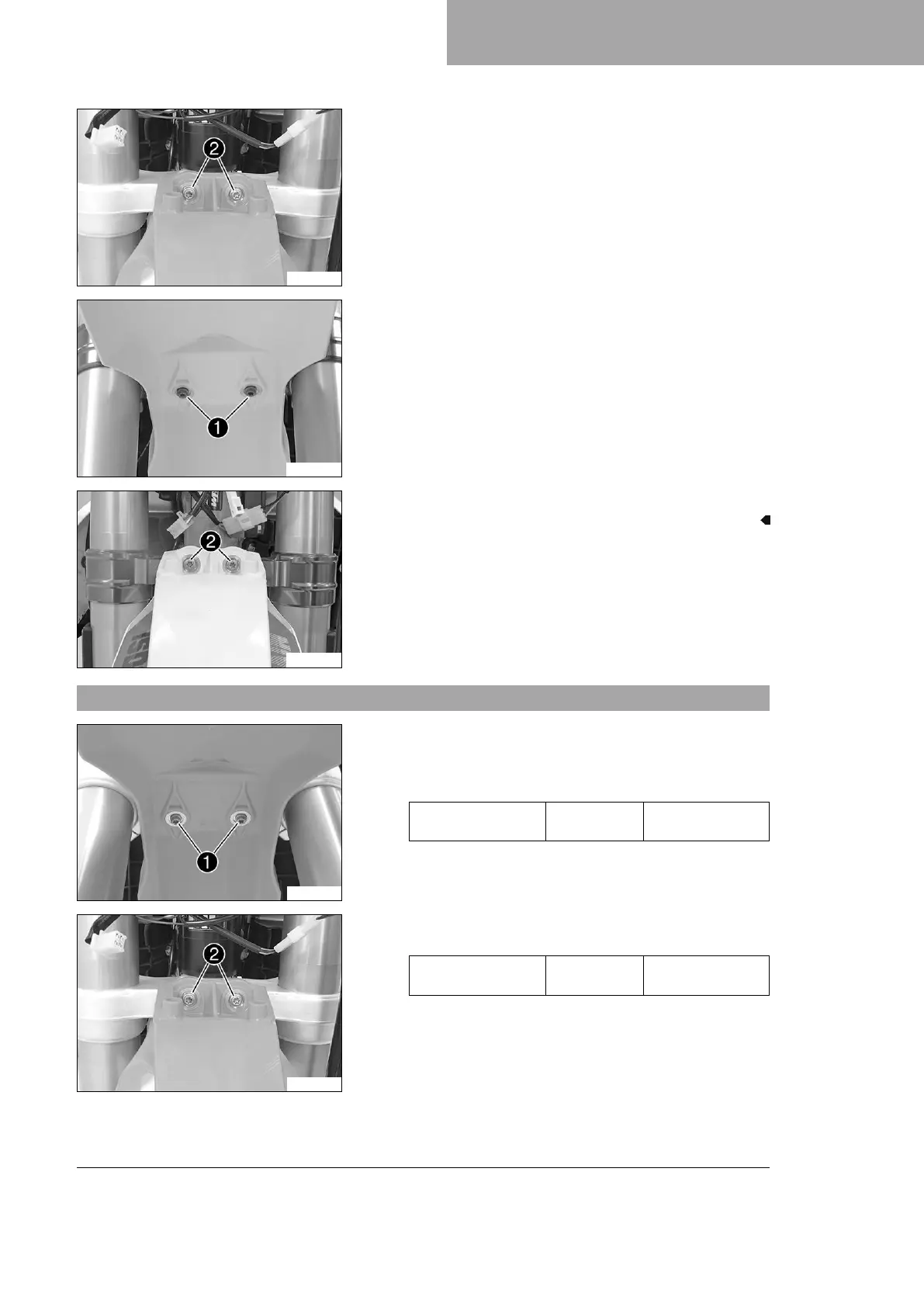

Remove screws
2
. Take off front fender.
K00576-10
(EXC‑F SIX DAYS EU)
–
Remove screws
1
.
S01321-10
–
Remove screws
2
. Take off front fender.
12.18 Installing front fender
V00340-10
Main work
(EXC‑F EU, XCF‑W)
–
Position front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V00341-10
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 500EXC-F 2023 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Seat Height	960 mm
Ground Clearance	355 mm
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
Frame	Central double-cradle type 25CrMo4 steel
Front Brake	Disc brake Ø 260 mm
Rear Brake	Disc brake Ø 220 mm
