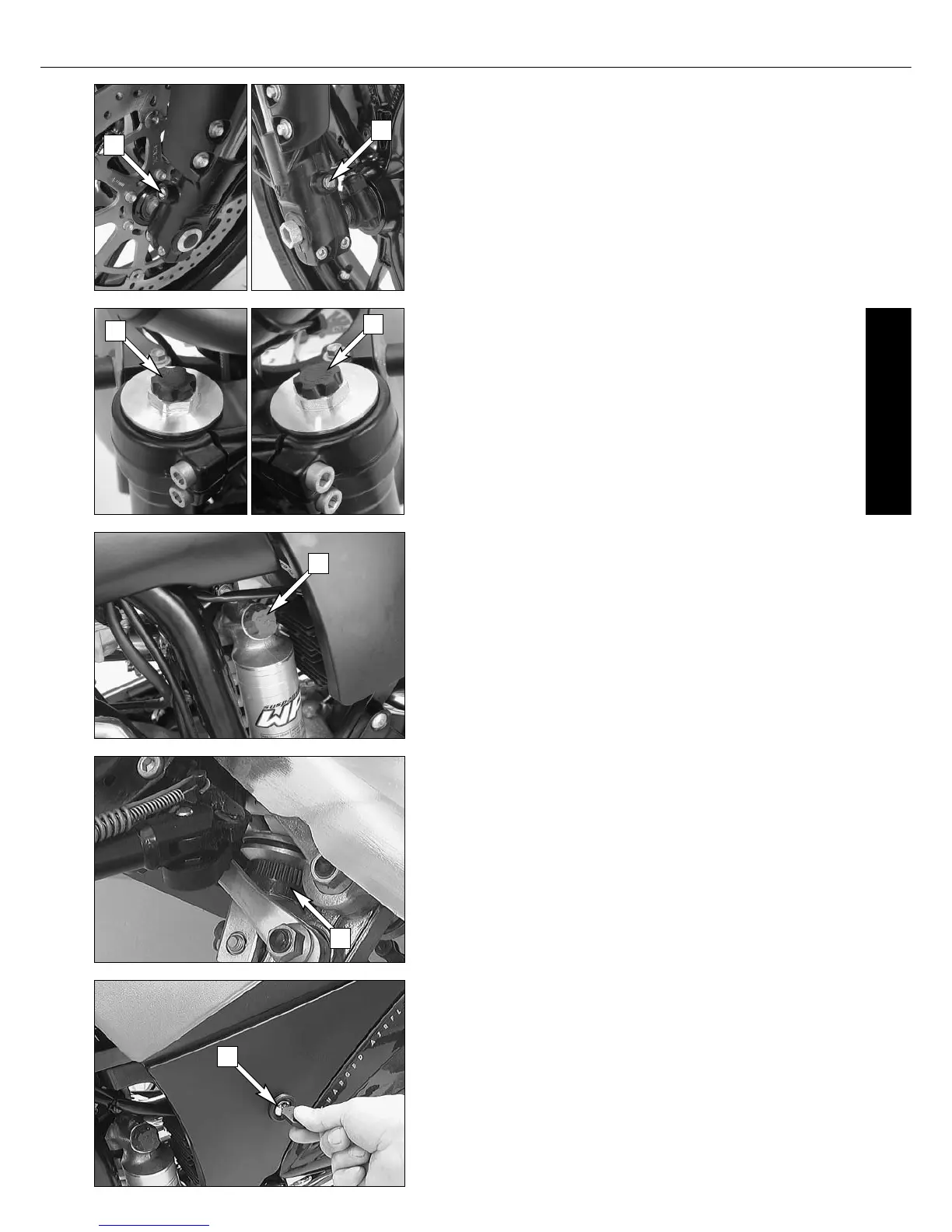

Compression damping of fork
Hydraulic compression damping determines the reaction when the fork is com-
pressed. The degree of compression can be adjusted with adjusting
screws at the bottom of the fork legs.
The damping rate of the compression damping mechanism can be readjusted
at the adjusting screws [1] located at the fork leg. Turn it clockwise to increase
damping, and counterclockwise to reduce damping during compression.
STANDARD ADJUSTMENT:
Turn adjusting screw clockwise as far as it will go.
Turn it back by as many clicks as are specified for the relevant type of fork.
WP 05187A03 . . . .14 clicks
Rebound damping of fork
Hydraulic rebound damping determines the reaction when the fork is
rebound. By turning the adjusting screw [2] (REB), the degree of damping of
the rebound can be adjusted. Turn the knob clockwise to increase damping,
turn it counterclockwise to reduce damping during rebounding.
STANDARD ADJUSTMENT:
Turn adjusting screw clockwise as far as it will go.
Turn it back by as many clicks as are specified for the relevant type of fork.
WP 05187A03 . . . .16 clicks
Compression damping of shock absorber
With the knob [3] the degree of damping of the compression can be adjusted
to 7 positions. Turn the knob counterclockwise to increase damping, turn it
clockwise to reduce damping during rcompressing.
STANDARD ADJUSTMENT:
WP 01187A05 . . . .position 3
Rebound damping of shock absorber
With the setting wheel [4] the degree of damping of the rebound can be adjusted
to 11 positions. Turn the knob to the left side to increase damping, turn it to
the right side to reduce damping during rebounding.
STANDARD ADJUSTMENT:
WP 01187A05 . . . .position 5
Seat lock
The seat is secured by the lock on the side of the seat [5].
