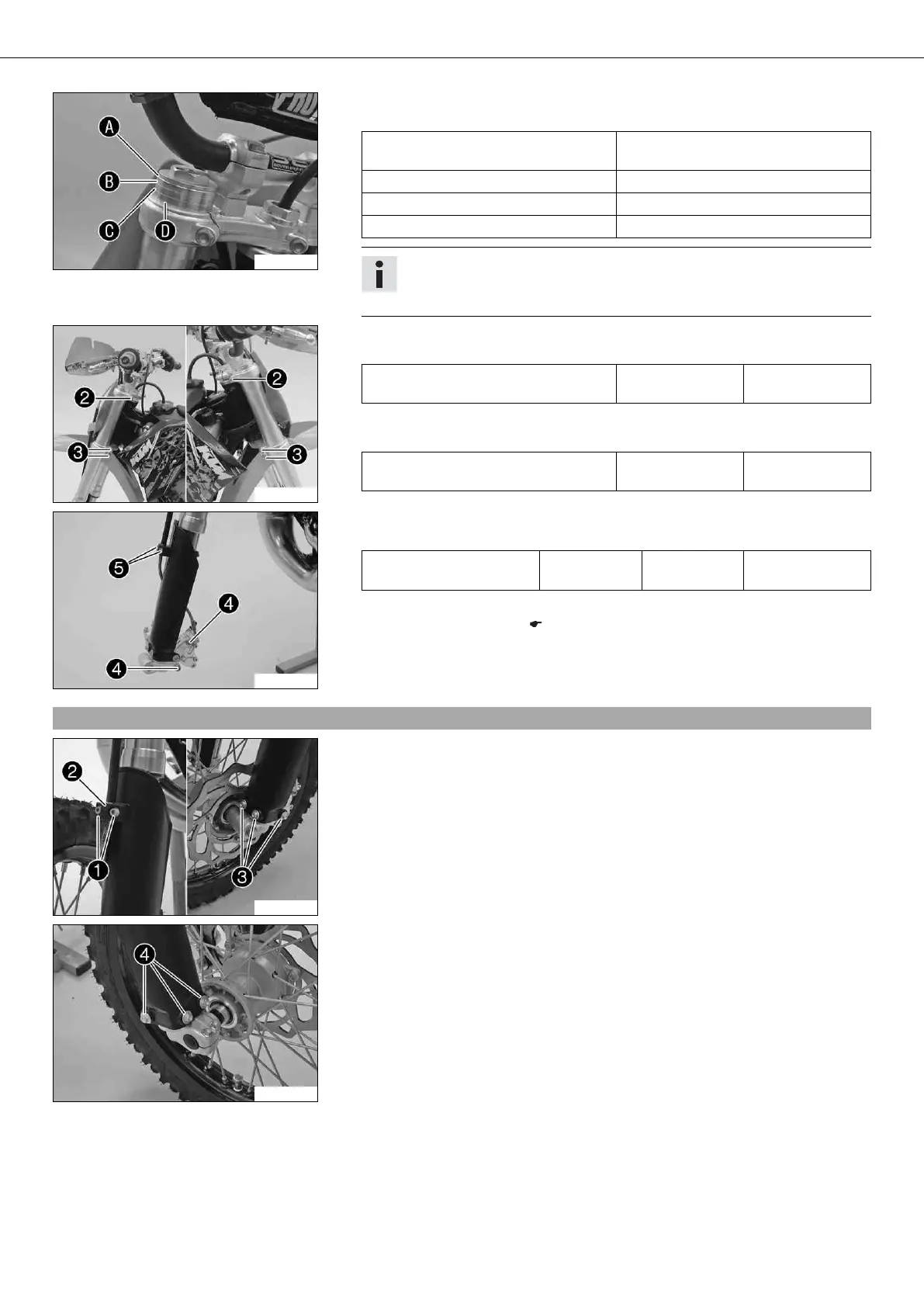

KTM 65 sx 2011 - Adjusting the Fork Overhang

MAINTENANCE WORK ON THE CHASSIS 29
700533-01
– Adjust the fork overhang.
Guideline
Upper triple clamp flush with end of
outer tube

Upper triple clamp flush with 1st ring  Standard
Upper triple clamp flush with 2nd ring 
Upper triple clamp flush with 3rd ring 
Info
The setting of the vehicle level via the fork legs must be identical on both
fork legs.
300664-11
– Tighten screws .
Guideline
Screw, top triple clamp M8 25 Nm
(18.4 lbf ft)
– Tighten screws .
Guideline
Screw, bottom triple clamp M8 25 Nm
(18.4 lbf ft)
300663-11
– Position brake caliper, mount and tighten screws .
Guideline
Screw, brake caliper M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
– Position the brake line. Mount the clamp and screws .
–
Install the front wheel. x ( p. 58)
10.7Removing the fork protector x
700431-01
– Remove screws . Take off clamp .
– Remove screw  on the left fork leg. Take off the fork protector.
700432-01
– Remove screw  on the right fork leg. Take off the fork protector.
