3 WORK 9
S00976-10
–

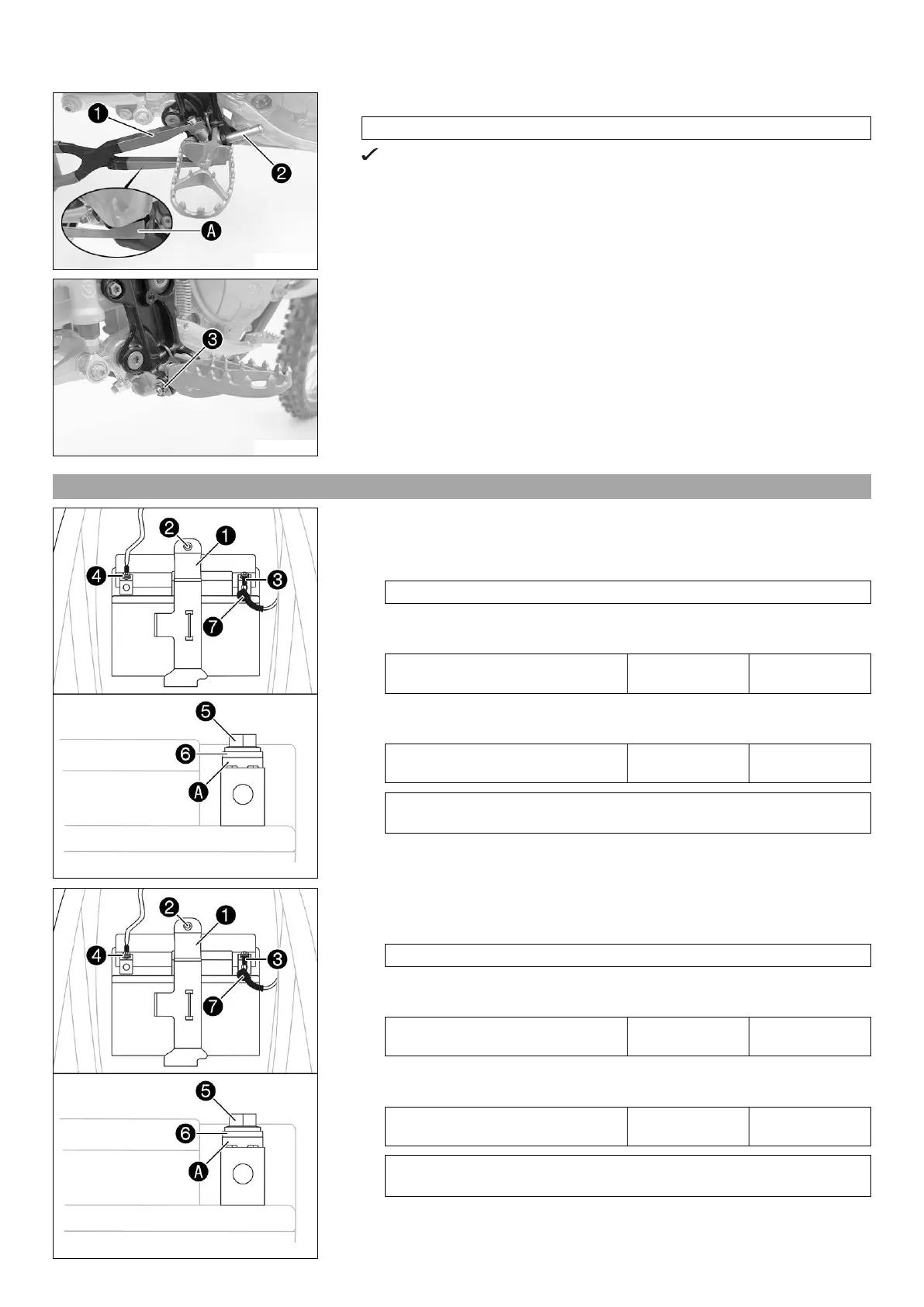

Press the spring with special tool
.
Pliers for footrest spring (79029083000)
The special tool is applied to area
on the footrest.
–
Mount pin
.
S00975-10
–
Mount the washer and split pin
.
3.9 Installing the battery
H00386-10
Main work
(All SX‑F models)
– Insert the battery into the battery compartment with the terminals facing for-
ward and secure with the holding bracket
.
Battery (C22S)
–
Mount and tighten screw
.
Guideline
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
–
Connect positive cable
and negative cable
with the battery.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Contact disks
must be mounted under screws
and cable sockets
with the claws toward the battery terminal.
–
Slide positive terminal cover
over the positive terminal.
H00386-10
(XC‑F US)
– Insert the battery into the battery compartment with the terminals facing for-
ward and secure with the holding bracket
.
Battery (HJTZ5S-FP)
–
Mount and tighten screw
.
Guideline
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
–
Connect positive cable
and negative cable
with the battery.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Contact disks
must be mounted under screws
and cable sockets
with the claws toward the battery terminal.
–
Slide positive terminal cover
over the positive terminal.
