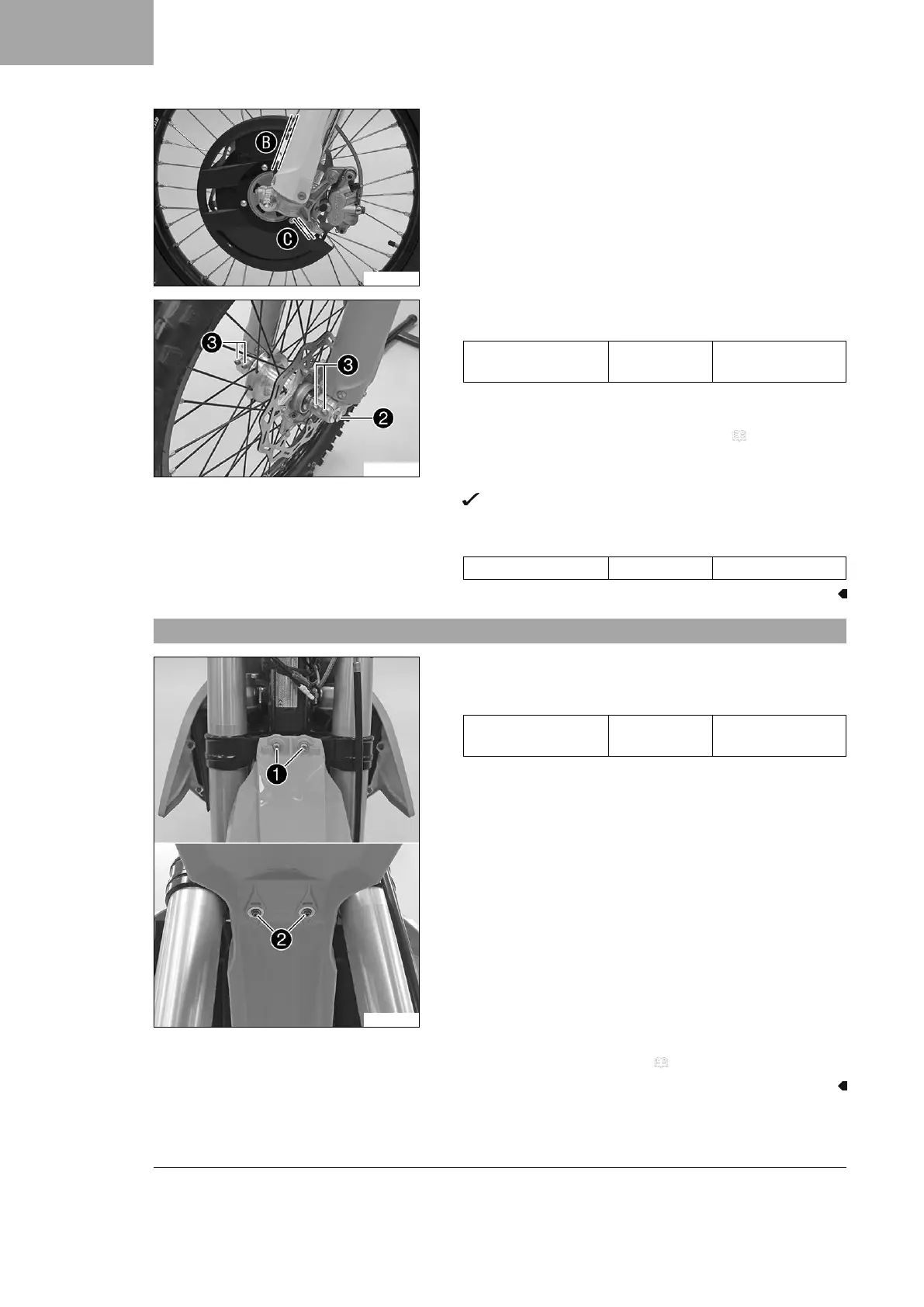

3 WORK
16
S01633-10
Align the brake disc guard so that distance
B
and
C
are
equal in size.
F00141-11
Mount and tighten screw
2
.
Guideline
Screw, front wheel
spindle
M20x1.5 35 Nm (25.8 lbf ft)
Operate the hand brake lever several times until the brake lin-
ings are seated correctly against the brake disc.
Remove the motorcycle from the lift stand. ( p. 14)
Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
Tighten screws
3
.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
3.4 Installing front fender
F01526-10
Main work
Position front fender. Mount and tighten screws
1
and
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
Install the start number plate. ( p. 17)
