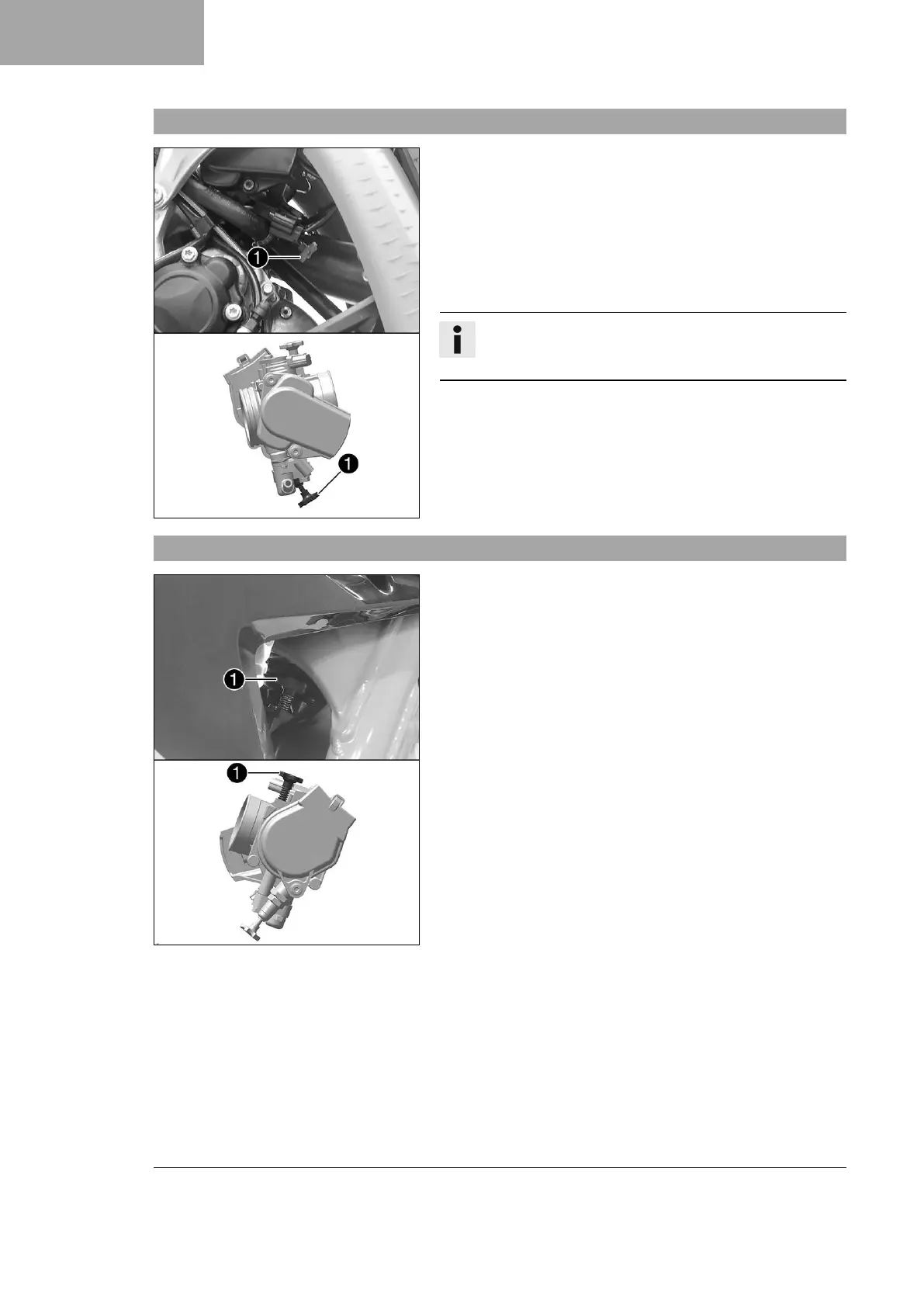

KTM F8201T5 - 3.9 Installing the air filter box cover

3 WORK
18
F01588-10
–
Remove screw
1
.
F01588-11
–
Pull off the air filter box cover in area
A
sideways and
take off toward the front.
F01589-10
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
A
sideways and
take off toward the front.
3.9 Installing the air filter box cover
F01588-12
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
F01588-10
–
Mount and tighten screw
1
.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
– Mount the seat. ( p. 17)
