ENGLISH
19

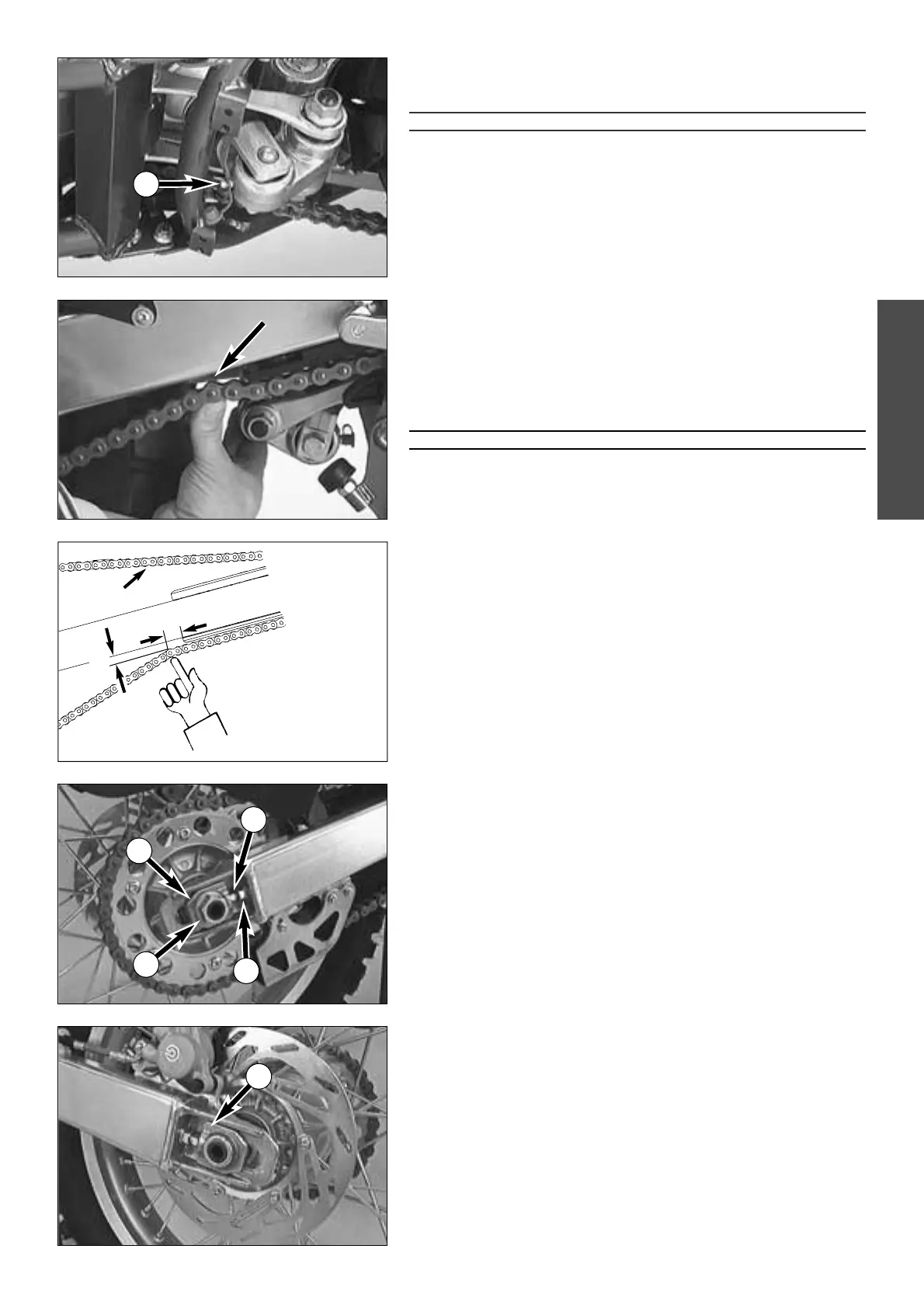

Lubricating the shock absorber linkage
The bearings in the rocker arm must be greased in regular intervals. For this
purpose, a grease nipple
1 is mounted on the rocker arm.
!
CAUTION
!
A
FTER EACH TIME THE MOTORCYCLE IS WASHED, IT IS ESPECIALLY IMPORTANT TO
GREASE THE GREASE NIPPLE TO PUSH ANY WATER OUT OF THE BEARINGS
.
Checking chain tension
– Support the motorcycle on the center stand or side stand, respectively.
– Switch transmission to neutral.
–
Push the chain upwards appr. 30 mm (1,2 in) from the end of the chain sli-
ding component until the upper part of the chain is tensioned (see illustr.)
– Now, the distance A between chain and swingarm should be 0 mm. The
upper part of the chain
B must be tight (see illustr.).
– Correct chain tension, if necessary!
WARNING
–I
F CHAIN TENSION IS TOO GREAT, PARTS WITHIN THE SECONDARY POWER TRANSMIS-
SION (CHAIN, CHAIN SPROCKETS, TRANSMISSION AND REAR WHEEL BEARINGS) WILL BE
SUBJECTED TO UNNECESSARY STRESS
, RESULTING IN PREMATURE WEAR AND EVEN
CHAIN BREAKAGE
.
–T
OO MUCH SLACK IN THE CHAIN, ON THE OTHER HAND, CAN RESULT IN THE CHAIN
JUMPING OFF THE CHAIN WHEELS
. IF THIS HAPPENS, THE CHAIN COULD ALSO BLOCK
THE REAR WHEEL OR DAMAGE THE ENGINE
.
–I
N EITHER CASE THE OPERATOR IS LIKELY TO LOSE CONTROL OF THE MOTORCYCLE.
Correct chain tension
– Loosen collar nut
2
, loosen counter nuts
3
, and turn right and left adju-
sting screws
4
equally far. Tighten counter nuts
3
.
– Before tightening the wheel spindle, verify that the chain adjusters
5
are
sitting close to the adjusting screws and that the rear wheel has been ali-
gned with the front wheel.
– Tighten collar nut
2
with 80 Nm (59 ft.lb).
A
B
15:45
16:38
16:42
A = 0 mm
16:45
30mm
1
5
2
3
4
5
