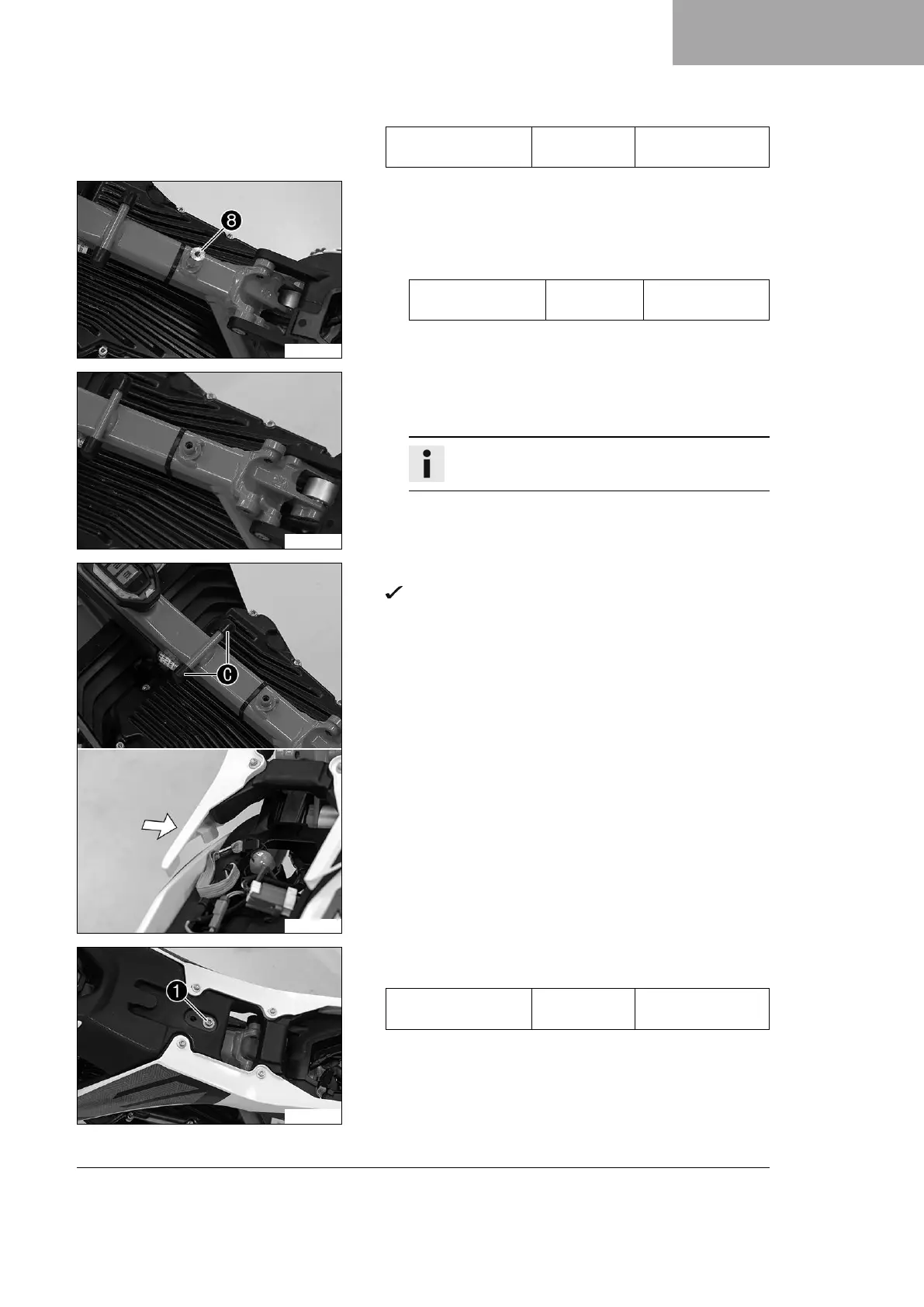

SEAT HEIGHT 12
43
Guideline
Screw, splash protec-
tor
M6 8 Nm (5.9 lbf ft)
M01678-10
Condition
High seat position
–
Make sure that thread adapter
8
is mounted and tight-
ened.
Guideline
Threaded adapter
for front fairing
M6 8 Nm (5.9 lbf ft)
M01679-01
Condition
Low seat position
– Make sure that the thread adapter is removed.
Info
Retain the thread adapter for later assembly.
M01680-10
–
Position the front fairing on holders
C
.
The holding lugs of the front fairing engage in the
recesses of the rear fairing on both sides.
M01675-10
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
