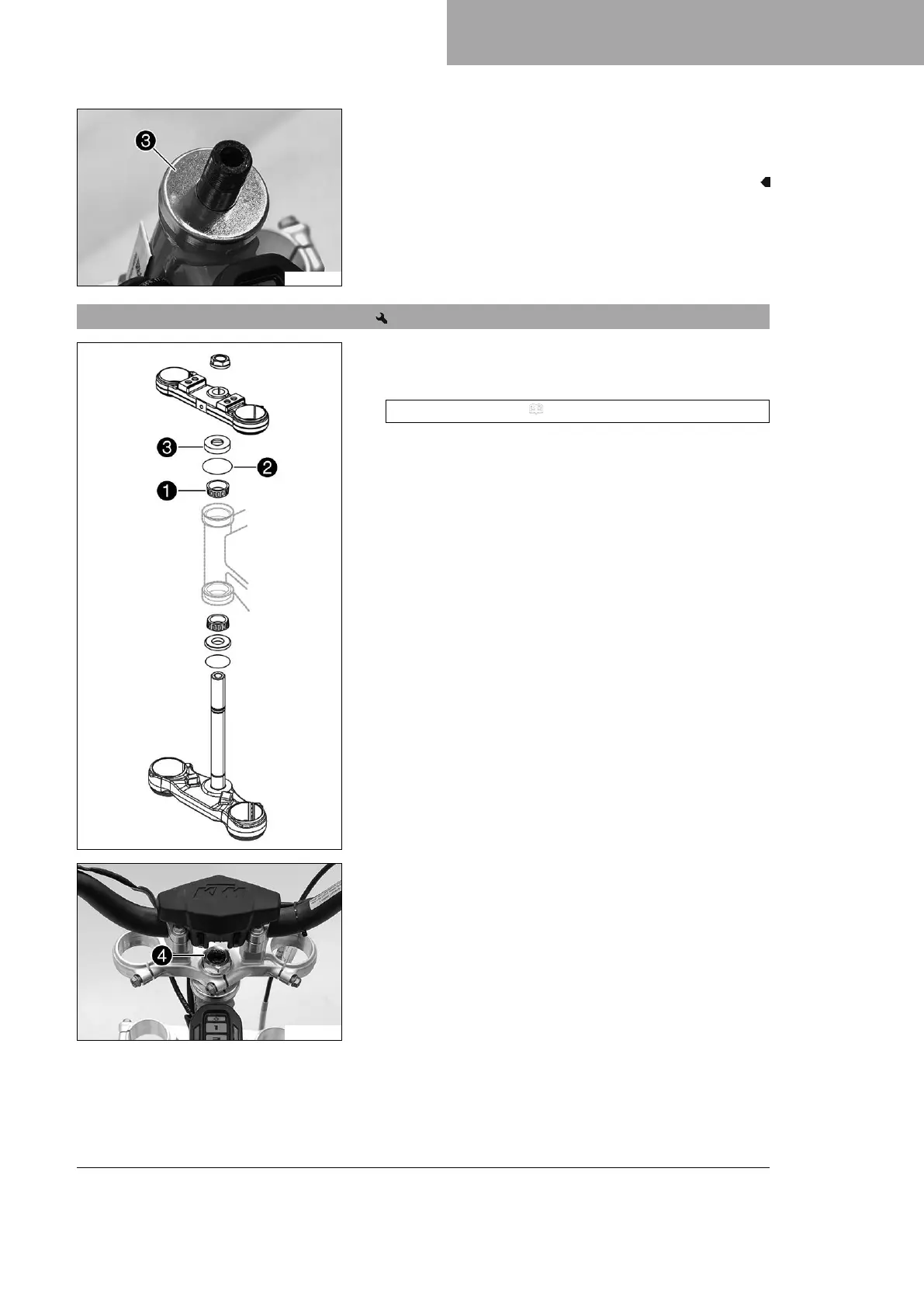

SERVICE WORK ON THE CHASSIS 13
49
M01668-10
–
Remove protective ring
3
.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
13.10 Installing the lower triple clamp
F02885-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 99)
– Insert the lower triple clamp with the steering stem. Mount
upper steering head bearing
1
.
–
Check that the O-ring at the top
2
is correctly positioned.
–
Push on protective ring
3
.
M01667-11
– Position the upper triple clamp with the handlebar.
–
Mount nut
4
, but do not tighten it yet.
