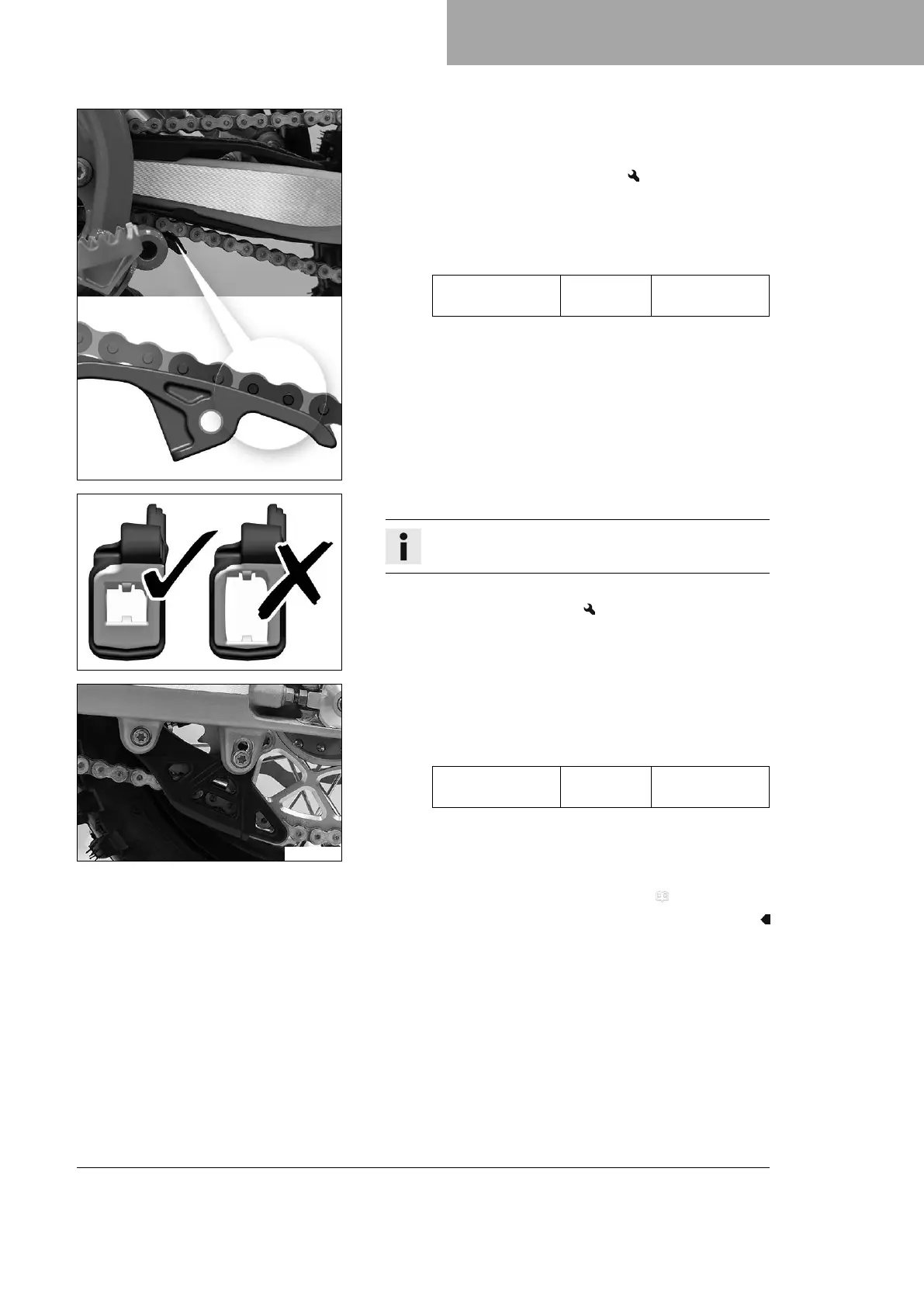

SERVICE WORK ON THE CHASSIS 13
59
M01692-10
– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below
the chain sliding piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten screw on the chain sliding piece.
Guideline
Screw, chain slid-
ing piece
M8 15 Nm
(11.1 lbf ft)
400985-01
– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide.
M01693-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
