14 BRAKE SYSTEM
68

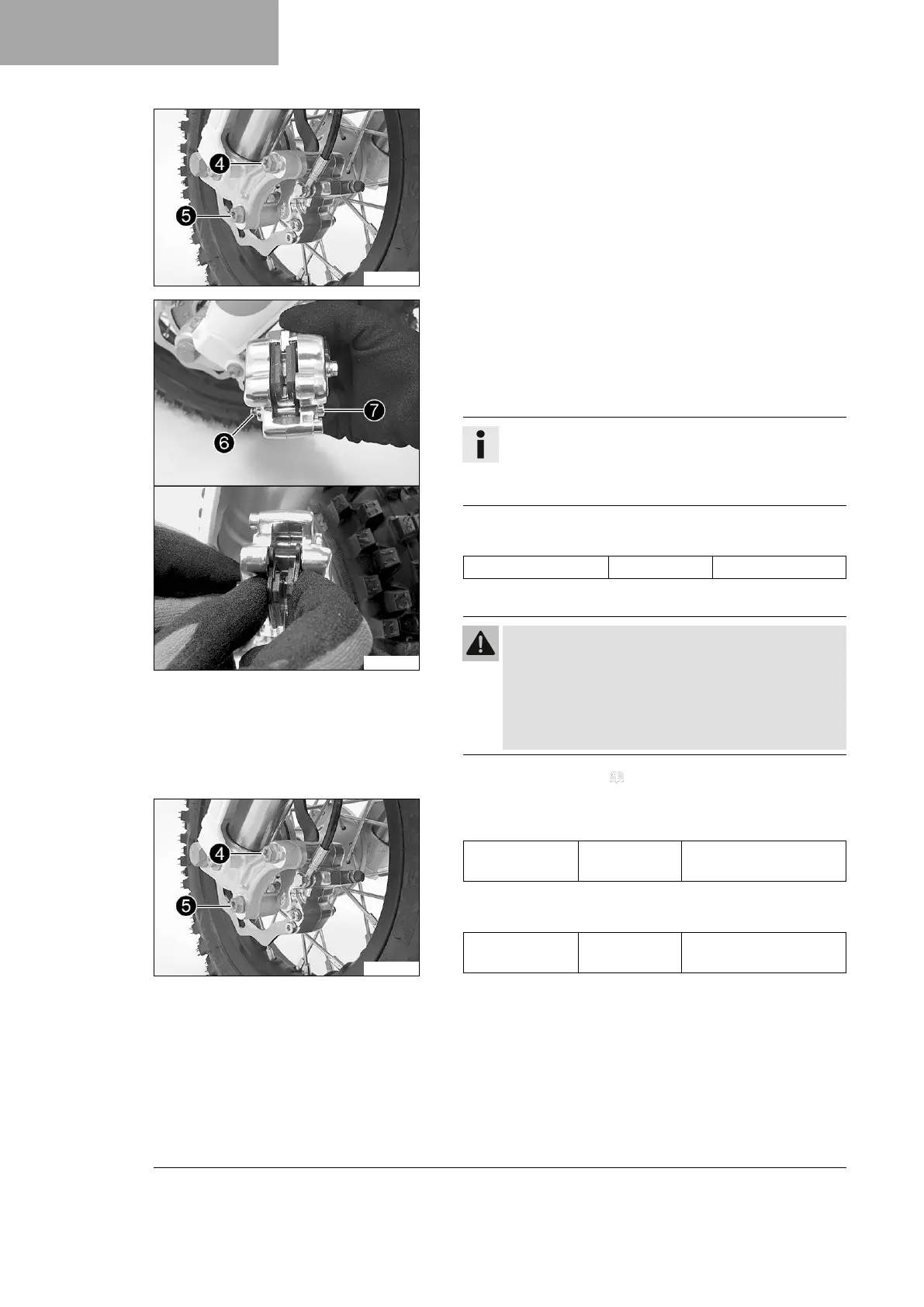

E00748-10
–
Remove screw
4
and
5
.
– Press back the brake linings by slightly tilting the brake caliper
laterally on the brake disc. Carefully pull the brake caliper
backward from the brake disc.
– Press the brake piston back into the basic position and ensure
that brake fluid does not flow out of the brake fluid reservoir,
extracting some if necessary.
E00750-10
–
Remove lock ring
6
.
–
Remove screw
7
.
– Remove the brake linings.
– Clean the brake caliper and the brake caliper bracket.
– Position the new brake linings.
Info
Always change the brake linings in pairs.
Ensure that the brake linings are correctly positioned in
the holding spring.
–
Mount and tighten screw
7
.
Guideline
Screw, brake linings M5 8 Nm (5.9 lbf ft)
–
Mount lock ring
6
.
Warning
Danger of accidents Oil or grease on the brake discs
reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when nec-
essary.
– Check the brake discs. ( p. 63)
E00748-10
–
Position the brake caliper, mount screw
4
, and tighten.
Guideline
Screw, front
brake caliper
M8x60 20 Nm (14.8 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
5
.
Guideline
Screw, front
brake caliper
M8x40 20 Nm (14.8 lbf ft)
Loctite
®
243™
