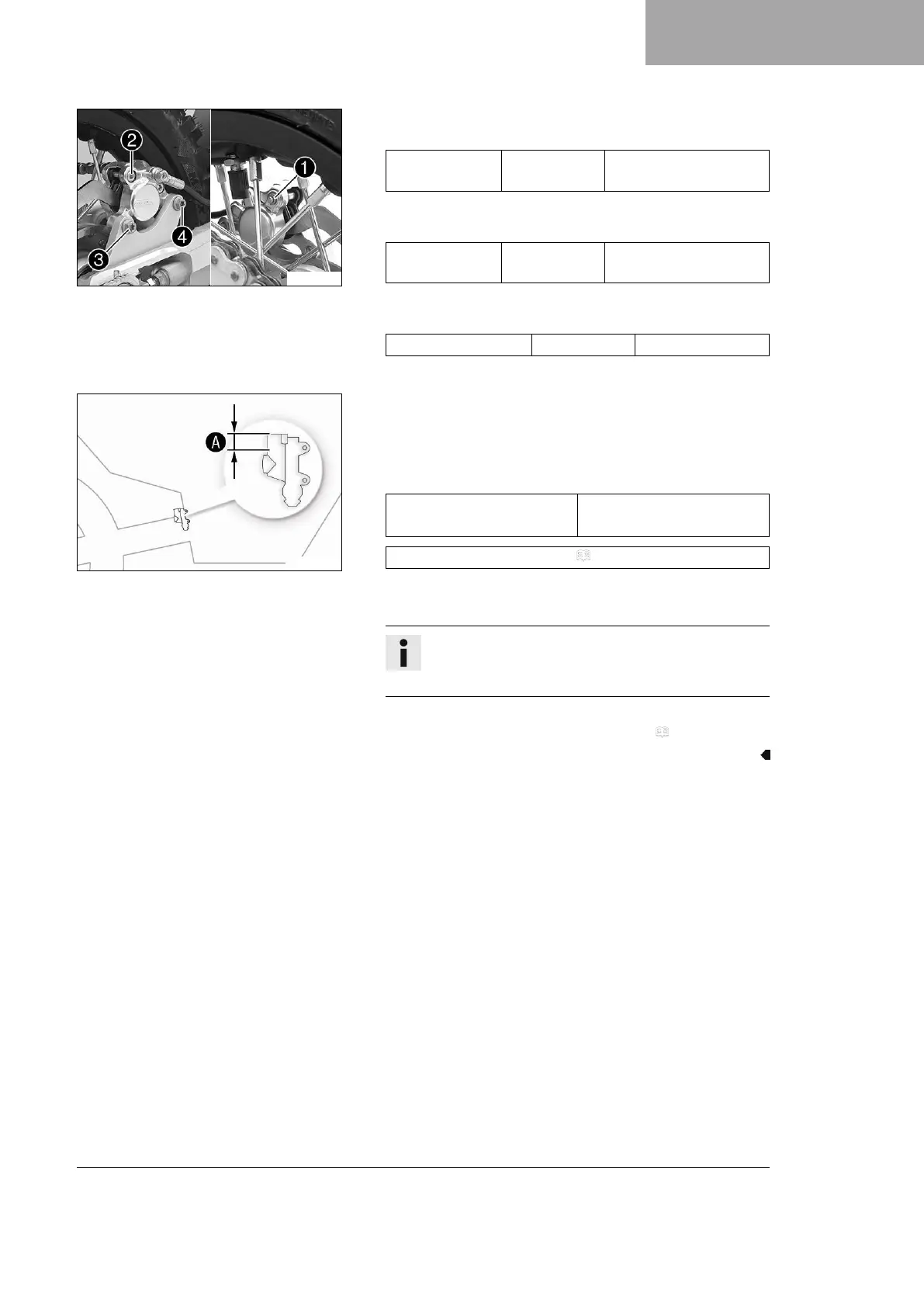

BRAKE SYSTEM 14
75
F02206-10
–
Mount and tighten screw
3
.
Guideline
Screw, rear
brake caliper
M6x16 10 Nm (7.4 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
4
.
Guideline
Screw, rear
brake caliper
M6x40 10 Nm (7.4 lbf ft)
Loctite
®
243™
–
Mount and tighten screw
2
.
Guideline
Screw, brake linings M5 8 Nm (5.9 lbf ft)
–
Mount lock ring
1
.
H01654-10
– Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
–
Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 98)
– Position cover with washer and membrane.
– Mount and tighten the screws.
Info
Immediately clean up any brake fluid that has over-
flowed or spilled using water.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
