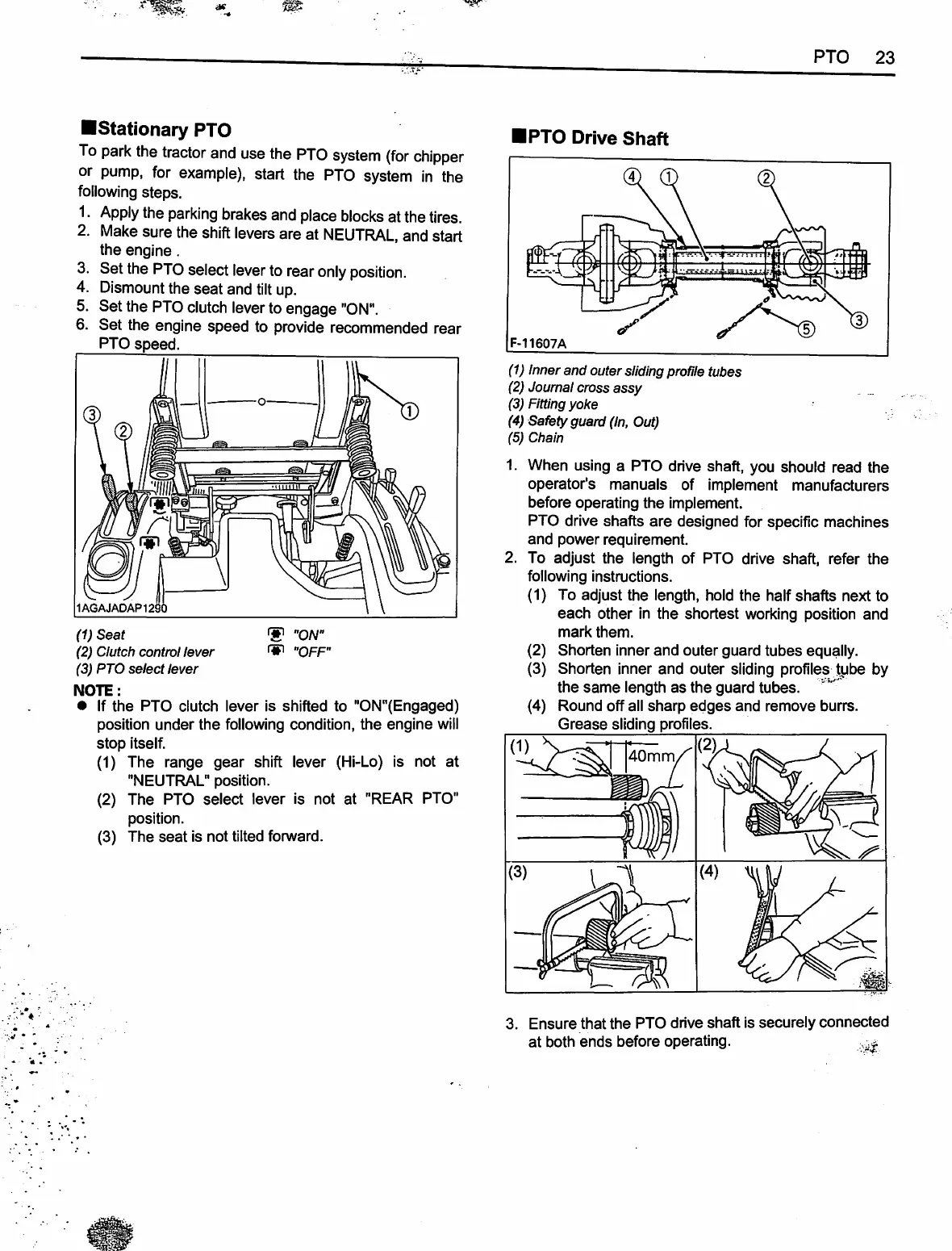

Stationary
PTO
~
"}.;i:t( ..
To park the tractor and use the PTO system (for chipper
or pump, for example), start the PTO system in the
following steps.
1. Apply the parking brakes and place blocks at the tires.
2. Make sure the shift levers are at NEUTRAL, and start
the engine.
3. Set the PTO select lever to rear only position.
4. Dismount the seat and tilt up.
5. Set the PTO clutch lever to engage "ON".
6. Set the engine speed to provide recommended rear
PTO speed.
(1) Seat
(2) Clutch control lever
(3) PTO select lever
NOTE:
'!I "OW
£li1 "OFF"
• If the PTO clutch lever is shifted to "ON
11
(Engaged)
position under the following condition, the engine will
stop itself.
(1) The range gear shift lever (Hi-Lo) is not at
"NEUTRAL
11
position.
(2) The PTO select lever is not at "REAR PTO"
position.
(3) The seat is not tilted forward.
•
PTO 23
■
PTO
Drive Shaft
1
~-:-.•,-:.=.,.=~it;::..--~,.,.,,_, __ _
F-11607A
(1) Inner and outer sliding profile tubes
(2) Journal cross assy
(3) Fitting yoke
(4) Safety guard (In, Out)
(5) Chain
1. When using a PTO drive shaft, you should read the
operator's manuals of implement manufacturers
before operating the implement.
PTO drive shafts are designed for specific machines
and power requirement.
2. To adjust the length of PTO drive shaft, refer the
following instructions.
(3)
(1) To adjust the length, hold the half shafts next to
each other in the shortest working position and
mark them.
(2) Shorten inner and outer guard tubes equ~lly.
(3) Shorten inner and outer sliding profiles· q.1be by
the same length as the guard tubes. ~-.,,..-
{ 4) Round off all sharp edges and remove burrs.
Grease sliding profiles.
3. Ensure that the PTO drive shaft is securely connected
at both ·ends before operating.
.:.':d
