TRANSAXLE
(4) Assembling Shafts
Assembling Select Arms and HST Pump Shaft (PTO Clutch
Shaft)

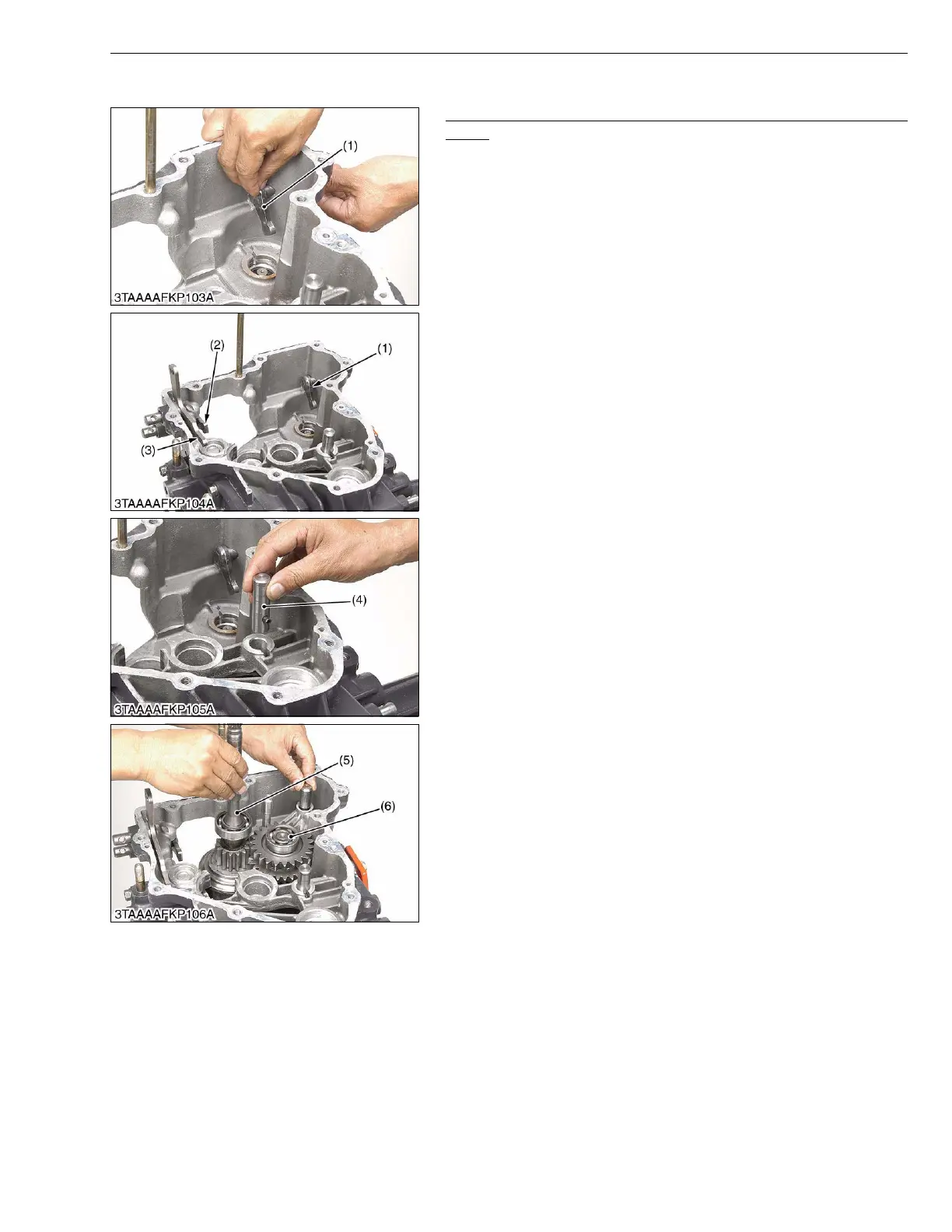

1. Install the PTO select arm (1).
2. Install the range shift arm (2) and the front wheel drive shaft arm
(3).
3. Install the idle gear shaft.
NOTEQ
• Install the rear PTO cover and the PTO select gear shaft
before installing HST pump shaft assembly.
4. After installing the rear PTO cover to the transaxle case, install
the PTO select gear shaft (6).
5. Install the HST pump shaft (PTO clutch shaft) (6).
(When reassembling)
• Take care not to damage the O-rings on the arms.
W1092555
(1) PTO Select Arm
(2) Range Shift Arm
(3) Front Wheel Drive Shift Arm
(4) Mid-PTO Idle Gear Shaft
(5) HST Pump Shaft (PTO Clutch Shaft)
(6) PTO Select Gear Shaft
