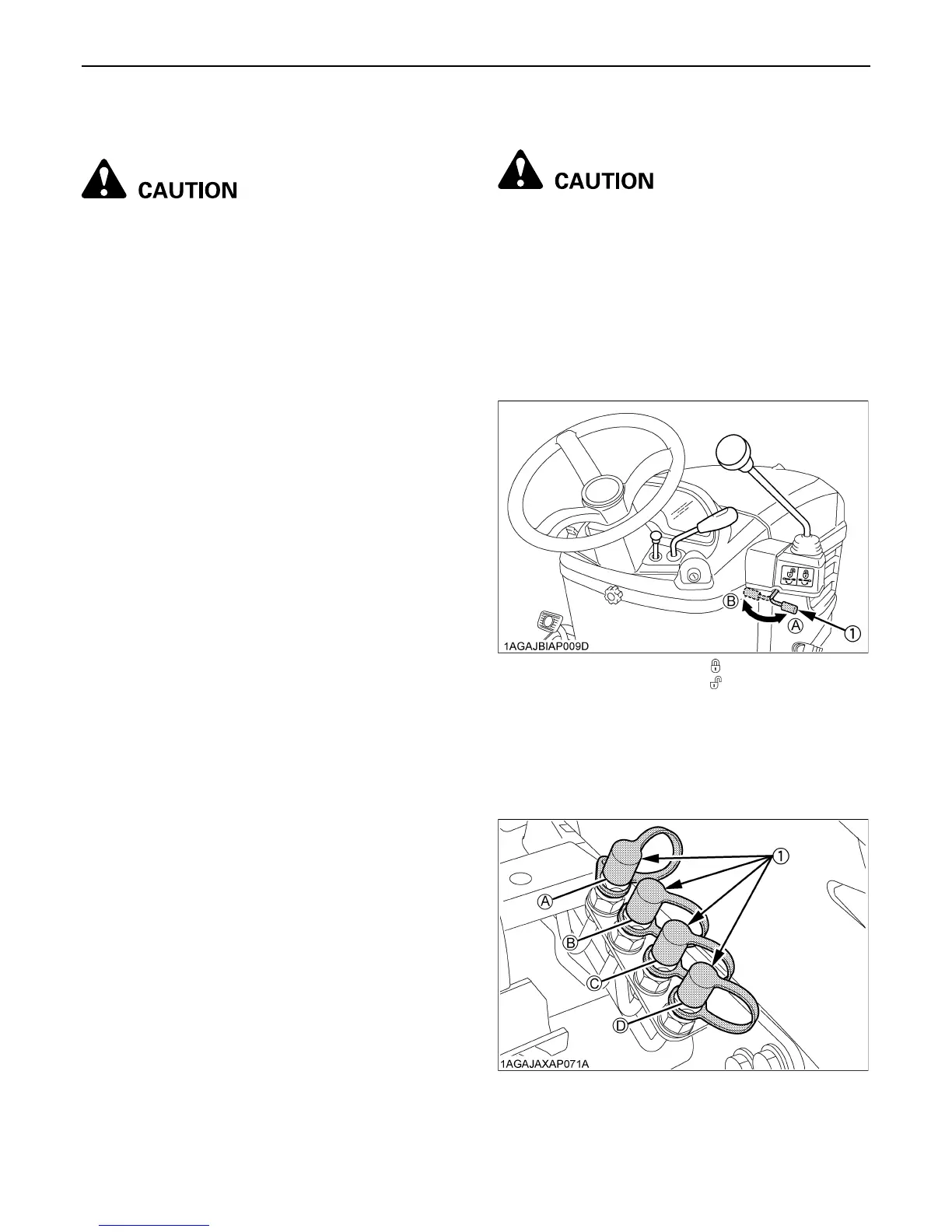

HYDRAULIC UNIT36
AUXILIARY HYDRAULIC CONTROL
VALVE (IF EQUIPPED)
To avoid serious personal injury:
A Escaping hydraulic fluid under pressure can
have sufficient force to penetrate skin, causing
serious personal injury.
Before disconnecting lines, be sure to relieve
all pressure.
Before applying pressure to system, be sure all
connections are tight and that lines, tubes and
hoses are not damaged.
Fluid escaping from a very small hole can be
almost invisible. Use a piece of cardboard or
wood, rather than hands to search for
suspected leaks.
If injured by escaping fluid, see a doctor at
once. Serious infection or allergic reaction will
develop if proper medical treatment is not
administered immediately.
BValve Lock
To avoid injury from crushing:
A Do not utilize the valve lock for machine
maintenance or repair.
A The valve lock is to prevent accidental
actuation when implement is not in use or
during transport.
The control valve is equipped with a valve lock feature.
The control valve is locked in "NEUTRAL" position.
The lock is not intended and will not prevent a leak down
of the implement during the period of storage.
BAuxiliary Hydraulic Ports
Auxiliary hydraulic ports are equipped with quick couplers.
If you don't use the auxiliary hydraulic ports, place the
dust plugs on the quick couplers ends.
(1) Lock lever (A) "LOCK"
(B) "UNLOCK"
(1) Dust plugs (A) "FORWARD" (WHITE)
(B) "RIGHT" (BLUE)
(C) "LEFT" (RED)
(D) "BACKWARD" (YELLOW)
