HYDRAULIC UNIT38
BControlling Loader (Only if equipped with
loader)
A When moving the lever up, the loader will go down.
A When moving the lever down, the loader will go up.
A When moving the lever to the left, the bucket will roll
back.
A When moving the lever to the right, the bucket will
dump.

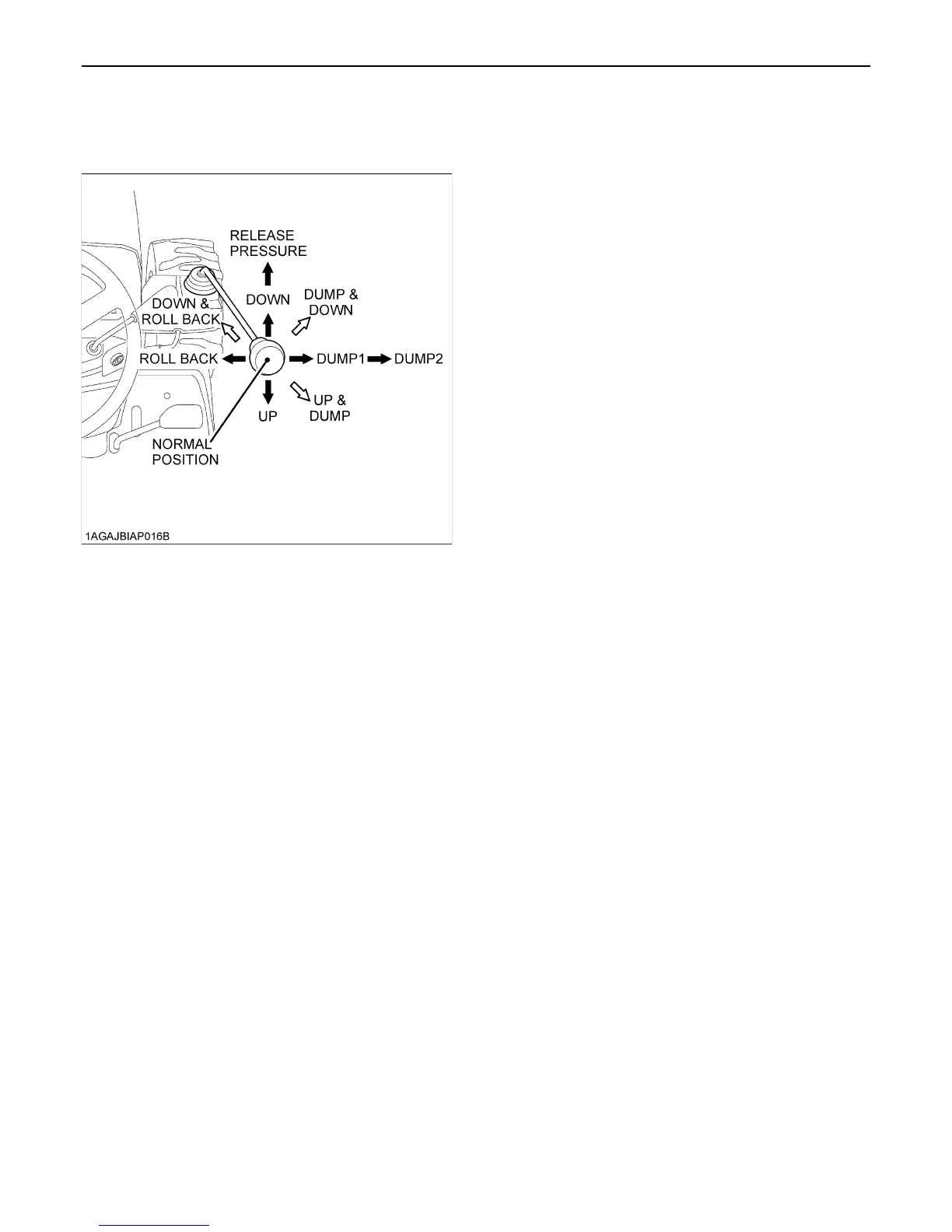

A When moving the lever diagonally, the loader and
bucket will work in the same time.
Dumping and bring down the loader have two stages that
operate differently.
When shifting the lever to the right, the bucket will dump
at a high speed. This lever position is the first dump stage
(DUMP 1).
When shifting the lever further to the right until feeling the
bump, the bucket will dump powerfully at a lower speed
compared to the first stage. This lever position after the
bump is the second stage (DUMP 2). When the operator
lets the hand off from the lever, it will return to the normal
position.
When shifting the lever up, the loader will go down with
hydraulic pressure. This lever position is the first stage
(DOWN) for lowering the loader.
When shifting the lever further up until feeling the bump,
pressure in the connector lines is released so the loader
will go down by its own weight. This lever position after the
bump is the second stage (RELEASE PRESSURE).
When the operator lets the hand off from the lever, it will
stay in the second stage position. Shift the lever down to
place it to the normal position.
