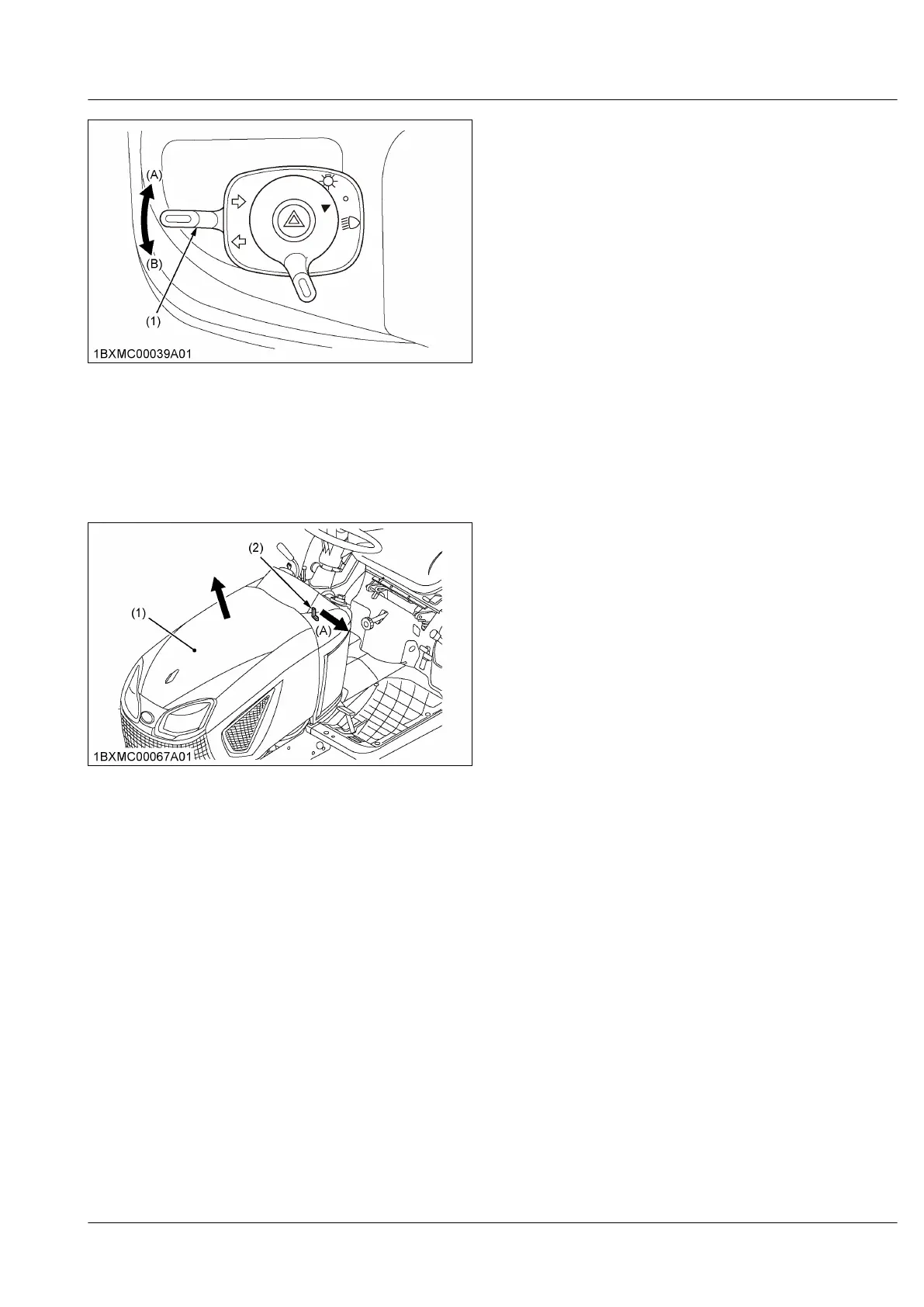

(1) Turn signal light switch
(A)
Right turn
(B)
Left turn
6. Hood open lever
The hood-open-lever is the lever to open the hood.
T
o
open the hood, pull the hood-open-lever to release
the latch.
(1) Hood
(2) Hood open lever
(A)
Pull
INSTRUMENT PANEL, SWITCHES, AND HAND CONTROLS
INSTRUMENT PANEL AND CONTROLS
BX1880, BX2380, BX2680
29

Table of Contents

Other manuals for Kubota BX2680

Preview: Installation Manual
Installation Manual40 pages
Preview: Instruction Manual
Instruction Manual22 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kubota BX2680 and is the answer not in the manual?

Kubota BX2680 Specifications

General IconGeneral
Engine TypeDiesel
Engine ModelKubota D1005
Engine Power25.5 HP
Transmission TypeHydrostatic
Drive4WD
Front AxleBevel gear
SteeringPower Steering
BrakesWet disc
Hydraulic System TypeOpen center
Hydraulic Pump Capacity6.2 GPM
3-Point HitchCategory I
3-Point Hitch Lift Capacity at 24 inches680 lbs
Fuel Capacity6.6 gallons
Wheelbase55.1 inches
Length95.5 inches
PTO Power19.5 HP
Number of Gears3-range
Tire Size (Front)18x8.5-10
Tire Size (Rear)26x12-12
