Kubota BX2680 User Manual

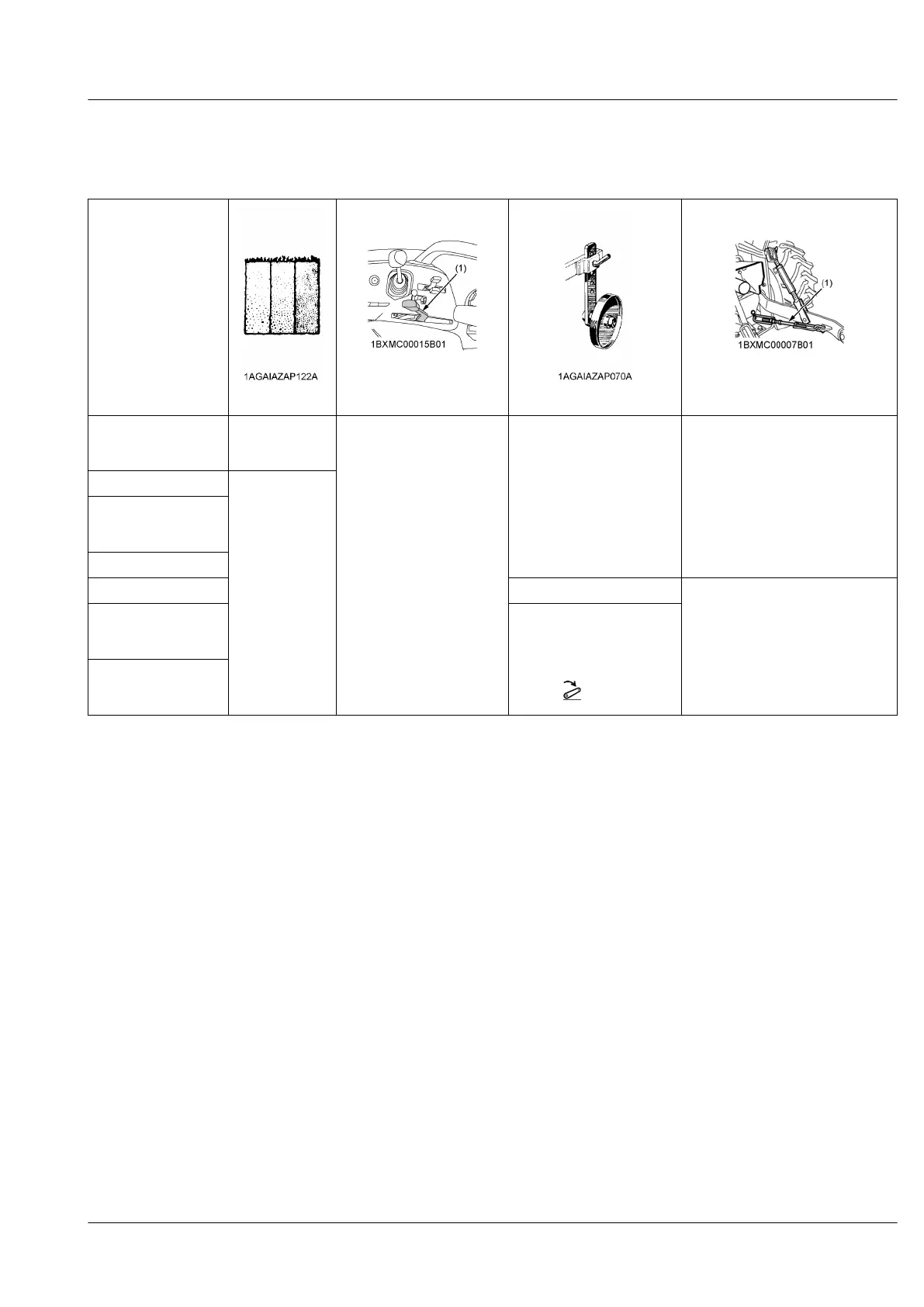

2. Hydraulic control unit use reference chart
In order
to use the hydraulics properly, the operator must know the following chart. Though this information may not
be applicable to all types of implements and soil conditions, it is useful for general conditions.
Implement
Soil condition
(1) Hydraulic control lever
Gauge wheel
(1) Check chains
Moldboard plow
Light soil, medi-
um soil, heavy
soil
Hydraulic control
YES/NO
Loose
Adjust the check chains so that the
implement can move 5 cm to 6 cm
(2.0 in. to 2.4 in.) laterally.
The check chains should be tight
enough to prevent excessive imple-
ment movement when implement is
in raised position.
Disc plow
-
Harrower (spike type,
springtooth type, and
disc type)
Sub-soiler
W
eeder, ridger YES
Tighten
Earthmove, digger
scraper, and manure
fork rear carrier
YES/NO
For implements with gauge
wheels, set the hydraulic
control lever to the lowered
(down)
position all way.
Mower (mid-and rear-
mount type), hayrake,
and tedder
MOWER LIFT LINKAGE SYSTEM HYDRAULIC UNIT
BX1880, BX2380, BX2680
61

Kubota BX2680 Specifications

General

Engine Type	Diesel
Engine Model	Kubota D1005
Engine Power	25.5 HP
Transmission Type	Hydrostatic
Drive	4WD
Front Axle	Bevel gear
Steering	Power Steering
Brakes	Wet disc
Hydraulic System Type	Open center
Hydraulic Pump Capacity	6.2 GPM
3-Point Hitch	Category I
3-Point Hitch Lift Capacity at 24 inches	680 lbs
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Length	95.5 inches
PTO Power	19.5 HP
Number of Gears	3-range
Tire Size (Front)	18x8.5-10
Tire Size (Rear)	26x12-12
