Index Service Part # File Name
Description
Qty
1 A00-0001 DLP-HANDLE Outside Push Button Handle 1
2 A00-0002 LEFT-LATCH Suicide Door Left Latch 1
3 A00-0013 TEKT-0009 5MM Bushing 15
4 A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB 2
5 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 1
6 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 4
7 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 9
8 A00-0022 FLANGE_BOLT_M6X25 Flange Bolt, M6x25, YD 1
9 A00-0039 TEKT-ASM-001 Left Door Hinge Weldment, Upper 1
10 A00-0040 REID-RST-160-RST-163 Grab Handle 1
11 A00-0041 TEKTITE-DECAL Tektite Cab Decal - Solid White 1
12 A00-0118 FLANGE_BOLT_1-4X1 Flange Bolt, 1/4" x 1", YD 2
13 A00-0177 TEKT-0068 Handle Washer Spacer 1
14 A00-0228 TEKT-ASM-029 Left Door Hinge Weldment, Lower 1
15 K01-0002 KUF2880-007 Door Glass 1
16 K01-0006 KUF2880-052 Door Weatherstripping 1
17 K01-0007 KUF2880-ASM-008 Left Door Frame Weldment 1

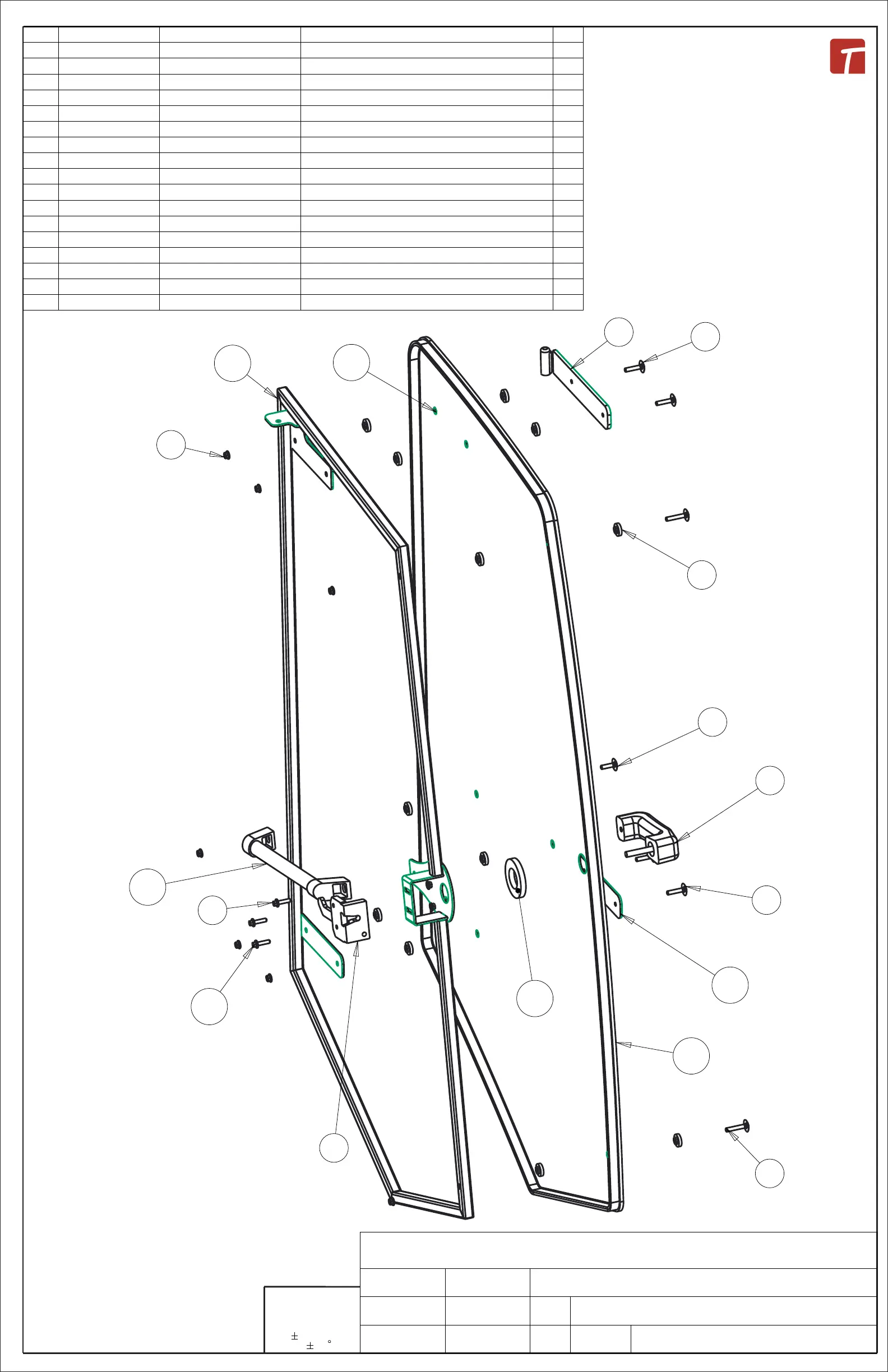

Left Door Parts Blow-out
Daryl Furkalo
2014-04-02 Imp.
KUF2880-ASM-020-OPMANUAL
B
SCALE 0.180
1
2
3
6
5
6
7
8
12
17
9
10
15
16
4
14
13
