Kubota G23 User Manual

TRANSAXLE
G23, G26, WSM
2-M4
(EU)
4. BRAKE

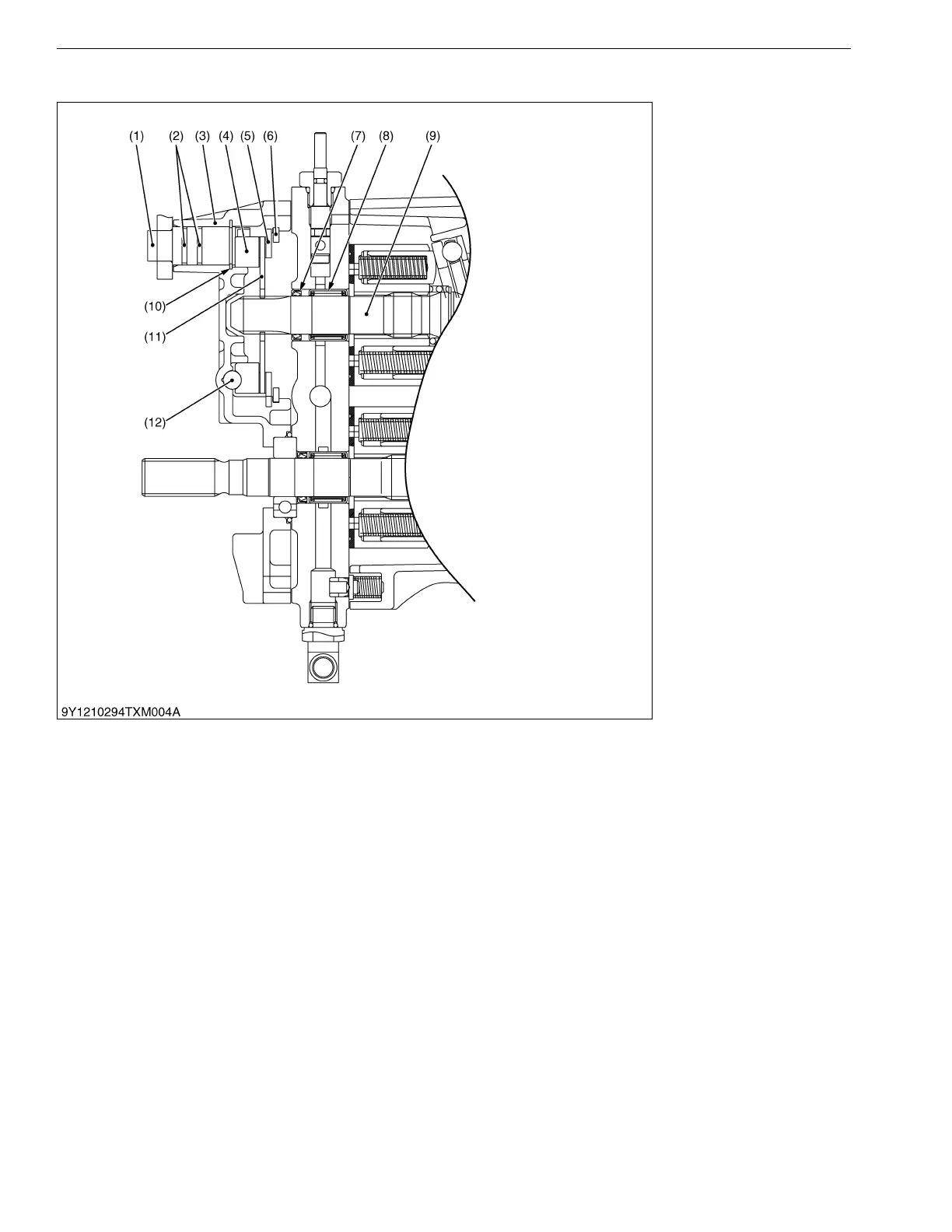

Brake consists of cam lever (1), actuator (4), steel balls (12), brake disk (11) and friction plate (5) and etc. as
shown in the figure. The brake disk is mounted on the HST motor shaft (9).
9Y1210294TXM0004US0
(1) Cam Lever
(2) O-ring
(3) Brake Cover
(4) Actuator
(5) Friction Plate
(6) Cir-clip
(7) Oil Seal
(8) Needle Bearing
(9) HST Motor Shaft
(10) Cir-clip
(11) Brake Disk
(12) Steel Ball
KiSC issued 08, 2009 A

Kubota G23 Specifications

General

Engine Power	23 HP
Transmission	Hydrostatic
Cutting Width	48 inches
Fuel Type	Diesel
Drive	2WD
Number of Blades	3
Engine Type	Diesel
Fuel Capacity	6.3 gallons
