ELECTRICAL SYSTEM
G23, G26, WSM
6-S28
(EU)

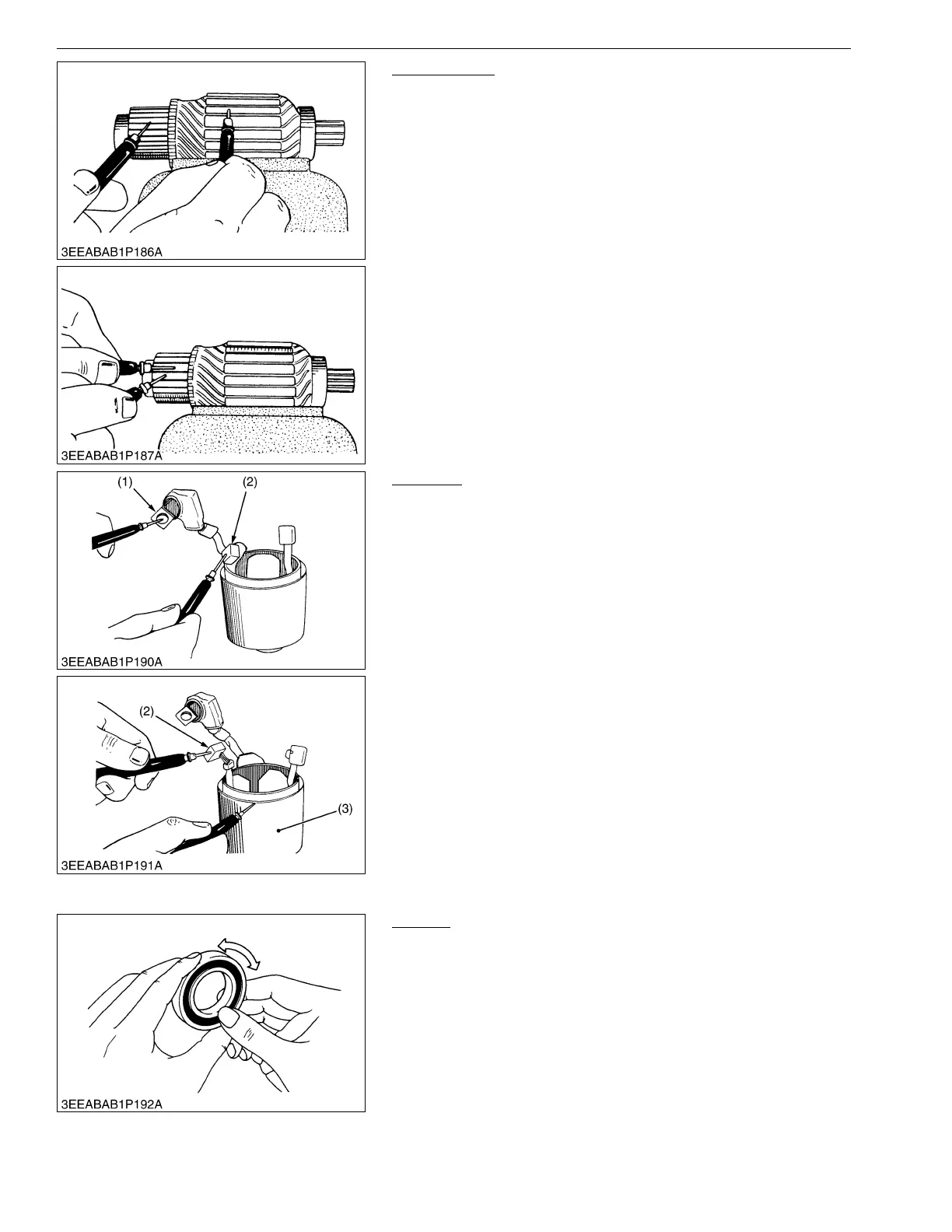

Armature Coil
1. Check the continuity across the commutator and armature coil
core with an ohmmeter.
2. If it conducts, replace the armature.
3. Check the continuity across the segments of the commutator
with an ohmmeter.
4. If it does not conduct, replace the armature.
WSM000001ELS0037US0
Field Coil
1. Check the continuity across the lead (1) and brush (2) with an
ohmmeter.
2. If it does not conduct, replace the yoke assembly.
3. Check the continuity across the brush (2) and yoke (3) with an
ohmmeter.
4. If it conducts, replace the yoke assembly.
WSM000001ELS0038US0
(2) Alternator
Bearing
1. Check the bearing for smooth rotation.
2. If it does not rotate smoothly, replace it.
WSM000001ELS0039US0
(1) Lead
(2) Brush
(3) Yoke
