Operation
85

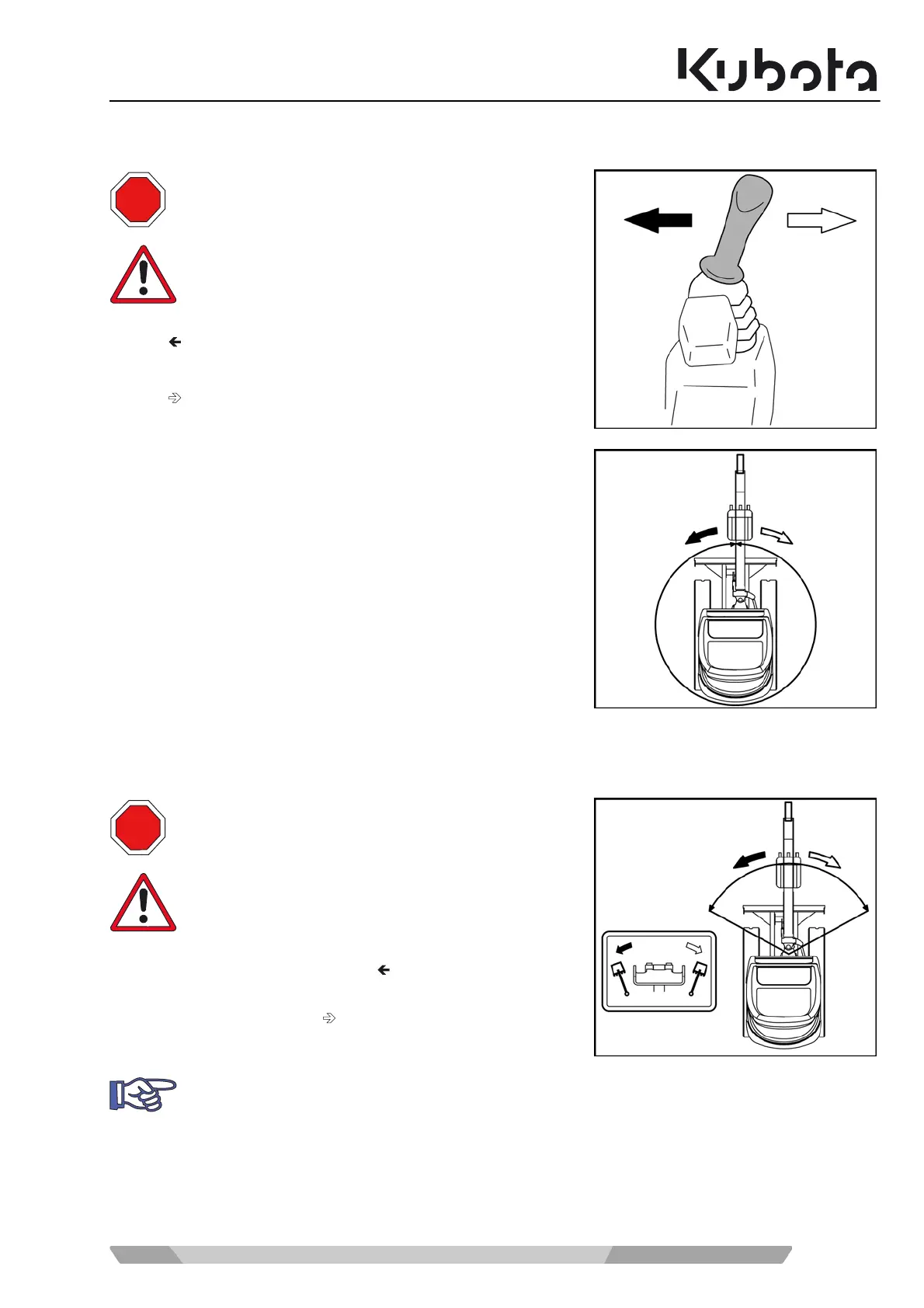

Swivelling the swivel frame
!
To turn anticlockwise, move the left control lever to the left (fig-
ure/ ).
!
To turn clockwise, move the left control lever to the right (fig-
ure/ ).
The turning operation takes place as shown in the figure.
Swinging the boom
!
To swing the boom counter-clockwise, press the boom swing
pedal on the left-hand side (figure/ ).
!
To swing the boom clockwise, press the boom swing pedal on
the right-hand side (figure/ ).
The figure details the swing movement.
No person is allowed to stand in the swivel area during
the movement.
Swivel carefully to avoid any contact of the front at-
tachments with adjacent objects.
No person is allowed to stand in the swing area during
the movement.
Swing carefully to avoid any contact of the front attach-
ments with adjacent objects.
The boom swing control pedal can be secured against inadvertent operation by lowering the locking
flap. Fold the locking flap when the boom swing pedal is not in use.
