Kubota KX080-3 - Removal of Travel Motor

WSM KX080-3 Service Hydraulic system
IV-S-188
5)Tighten plugs [33] to the specified torque.
Tightening torque : 58.8
r 9.81 N-m
(6
r1.0kgf-m) 43.4r7.2 ft-lbs
6)Mount the O-rings [35] on the plugs [34]
(2plugs).
Tighten the plugs [34] to the specified tongue.
Tightening torque : 58.8
r9.81 N-m
(6
r1.0kgf-m) 43.4r7.2 ft-lbs

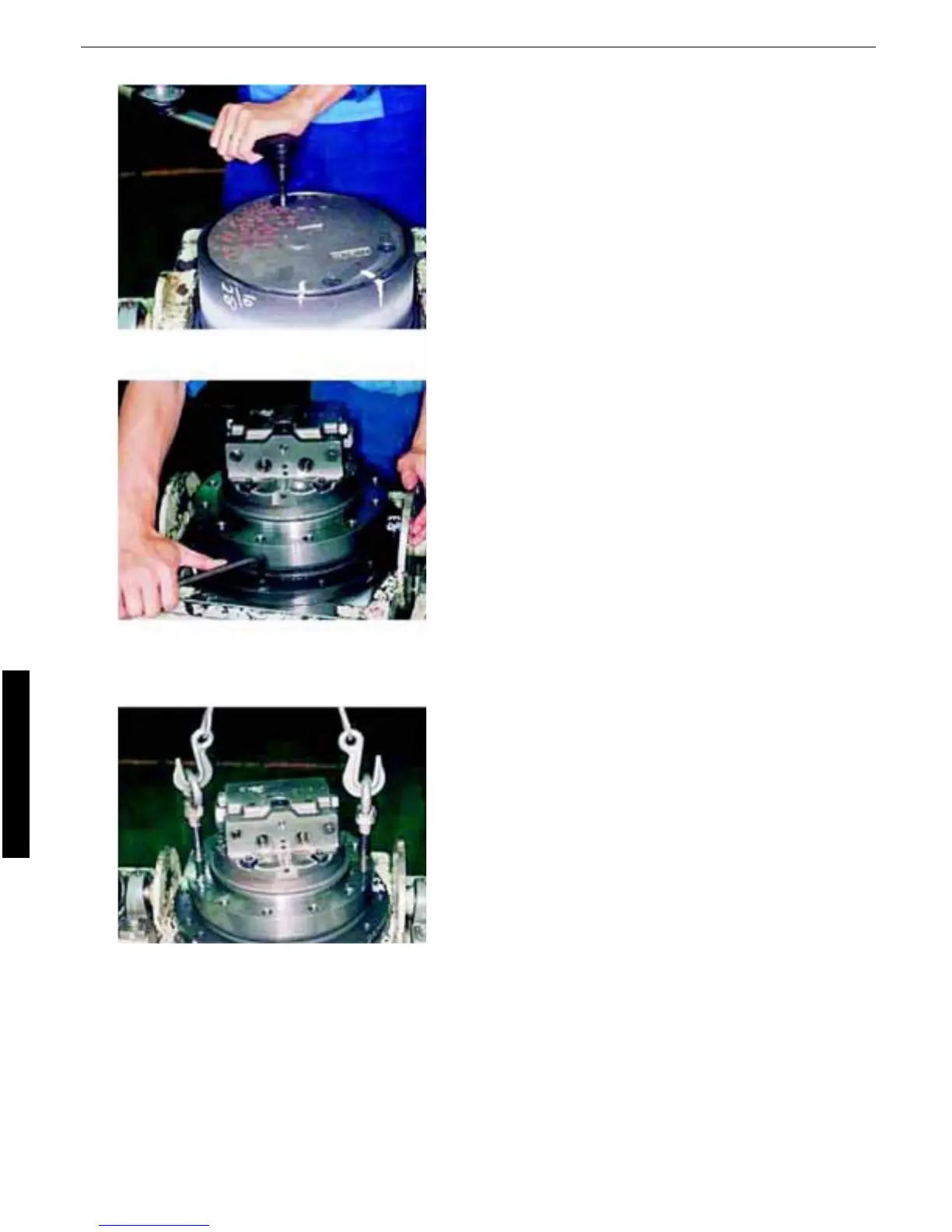

(18) Removal of travel motor
1) Invert the travel motor.
2) Removal the travel motor installation nuts
from hub bolts.
3) Fasten the eyebolts (2 bolts) in the spindle
[2].
Note : Fasten the 2 eye bolts in the screw
holes of the spindle [2] so they are
symmetrically positioned.
4) Hook the hook and wire on the eye bolts,
and remove the travel motor from the
workbench with a crane.
