Kubota M6040 Repair Manual

9-M23
M5040, M6040, M7040, WSM
ELECTRICAL SYSTEM
7. TRAILER SOCKET
The trailer socket is provided to take out the electrical
power from tractor to trailer or implement.
The function of each terminal is shown below.
W1017401
Terminal Function
Color of wire harness
ROPS Model CABIN Model
(1) Ground Black White
(2)
Tail light
Sidemarker light
Parking light
Yellow / Black Black
(3) Turn signal light (L.H.)
Green /
White
Yellow
(4) Brake stop light Orange Red
(5) Turn signal light (R.H.) Red / White Green
(6) Number plate light Yellow Brown
(7) – Red / Black Blue

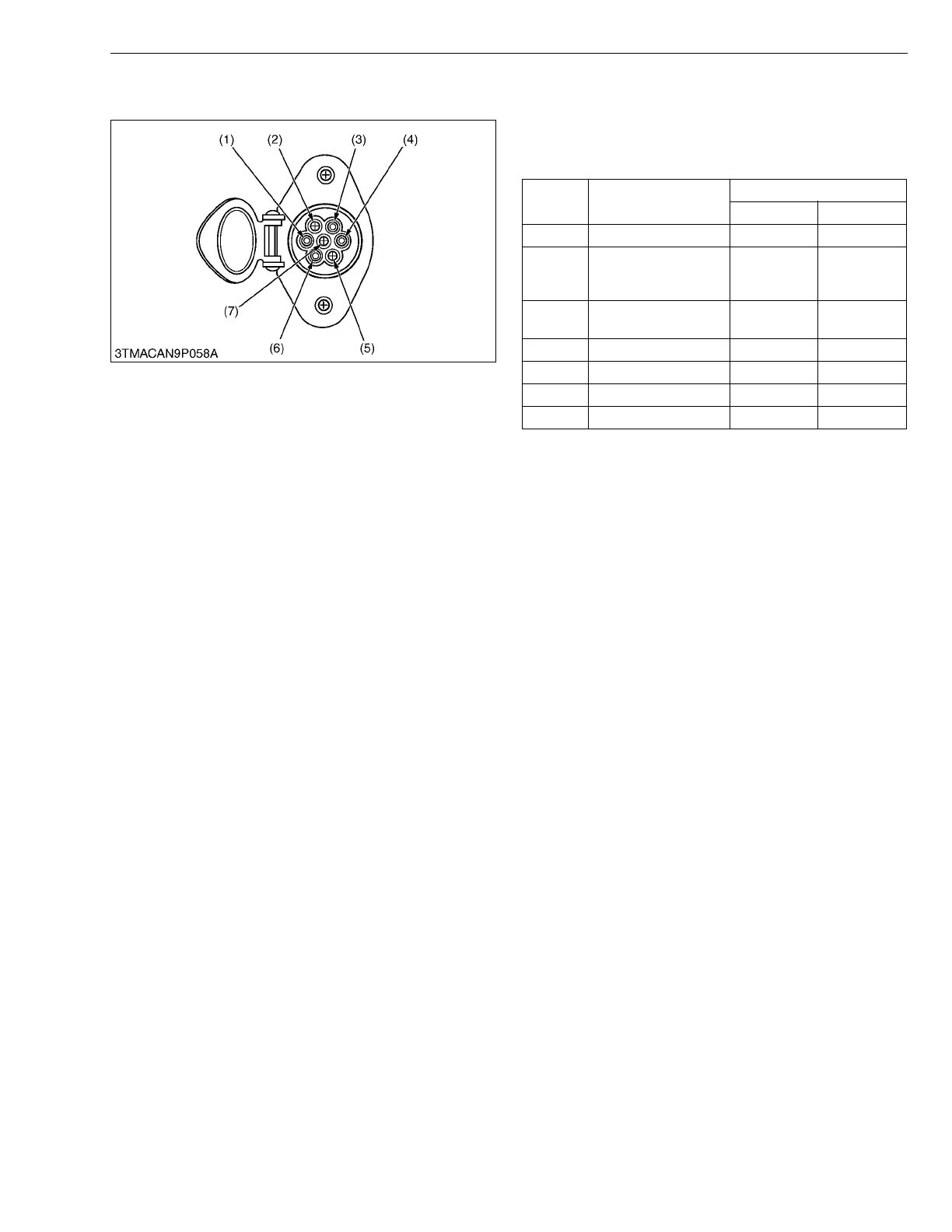

(1) Terminal 1
(2) Terminal 2
(3) Terminal 3
(4) Terminal 4
(5) Terminal 5
(6) Terminal 6
(7) Terminal 7
