Kubota SVL65-2 User Manual

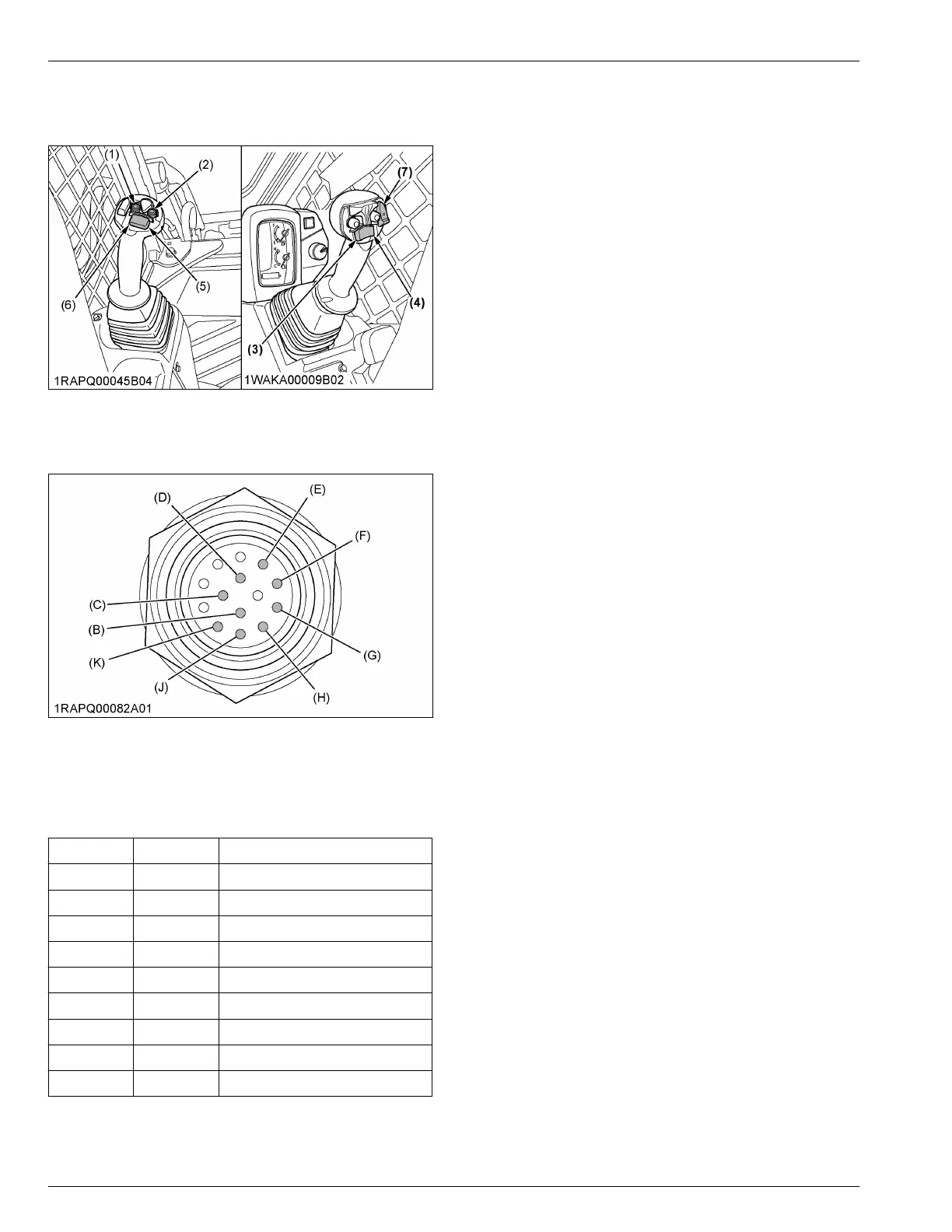

1. Press
the numbered electrical control switch on the
left or right lever that corresponds with the desired
valve function, to be powered at +12V.
(1) Ref. no. 1
(2)
Ref. no. 2
(3) Ref. no. 3
(4) Ref. no. 4
(5) Ref. no. 5
(6) Ref. no. 6
(7) Ref. no. 7
(B) Pin port-B
(C)
Pin port-C
(D) Pin port-D
(E) Pin port-E
(F) Pin port-F
(G) Pin port-G
(H) Pin port-H
(J) Pin port-J
(K) Pin port-K
14-pin coupler harness connection chart
Ref. no. Pin port Remarks
- B GND
1 C AUX 1st func.
2 D AUX 1st func.
3 E AUX 2nd func.
4 F AUX 2nd func.
5 G AUX 3rd func.
6 H AUX 3rd func.
7 J AUX electrical mode change
- K +12 V
NOTE :
•
AUX 3rd func. is momentary action.
• AUX
electrical mode change is alternate
action.
AUXILIARY HYDRAULIC HOW TO USE THE AUXILIARY HYDRAULIC CONTROL
66
SVL65-2

Kubota SVL65-2 Specifications

General

Rated Operating Capacity	2, 100 lbs
Travel Speed	7.1 mph
Travel Speed, High	7.1 mph
Hydraulic System Flow	17.4 gpm
Lift Arm Breakout Force	6, 834 lbs (3, 100 kg)
Net Power	74 hp (55.2 kW)
Overall Length (with bucket)	157.5 in (4, 000 mm)
Height to Top of Cab	82 inches
Overall Length	157.5 in (4, 000 mm)
Overall Width	72 in (1, 830 mm)
Overall Height	82 inches
