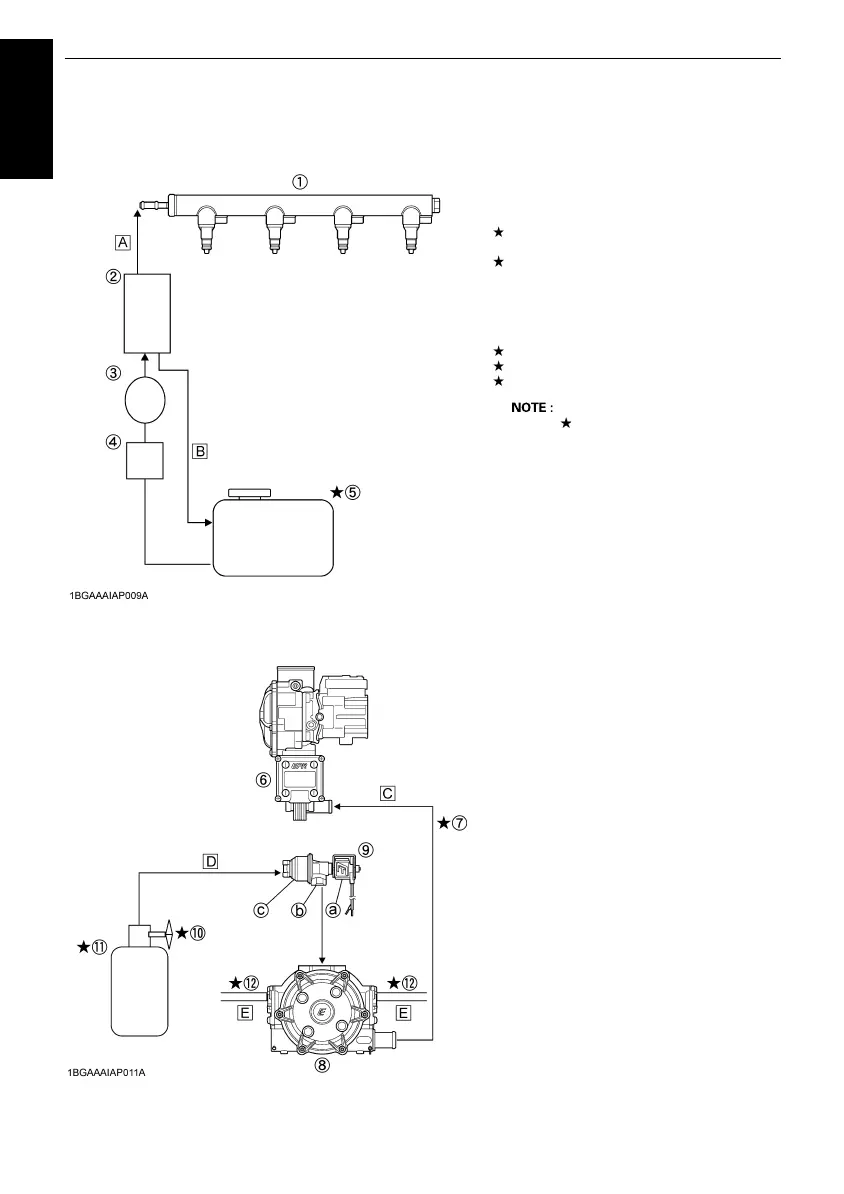

BFuel system diagrams
[WG1605-G-E3]
[WG1605-L-E3]
[WG1605-GL-E3]
Both of G and L types
(1) Delivery pipe assy
(2) Manifold (FPM)
(3) Fuel pump assy
(4) Fuel filter
(5) Gasoline tank
(6) Regulator assy (D-EPR)
(7) Vapor hose
(8) Regulator assy (D-STAGE)
(9) Lock off valve with LPG filter
(a) Solenoid
(b) Outlet
(c) Filter bowl
(10) LPG manual valve
(11) LPG tank
(12) Coolant hose
A The -marked component parts are Not
Provided by KUBOTA.
(A) Gasoline line
(B) Bleed / Return circuit
(C) Gaseous propane line
(D) Liquid propane line
(E) Hot coolant inlet or outlet line
