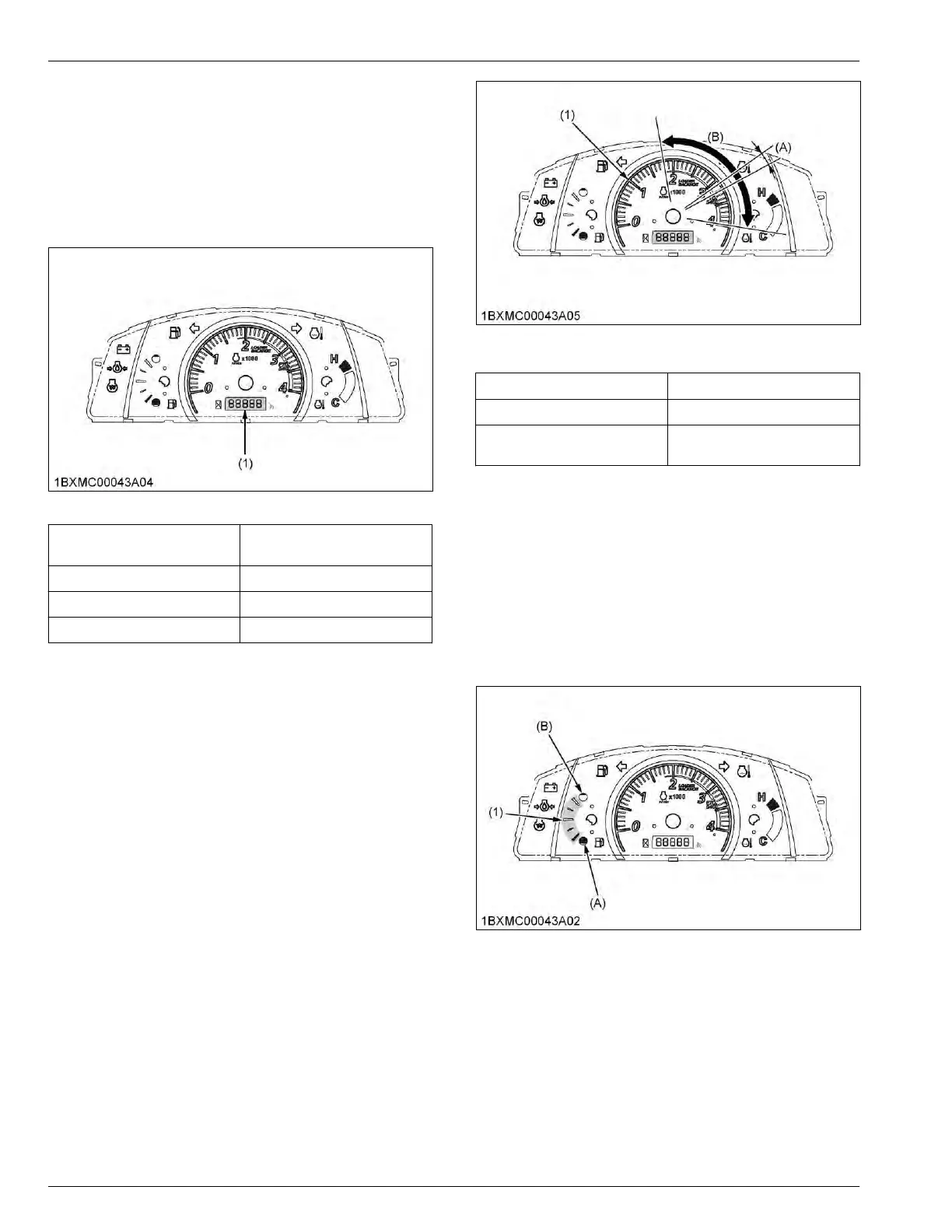

8.2 Meter panel
8.2.1 Function of hour meter
The meter panel on this machine is equipped with a
digital hour meter.
The hour
meter indicates in five digits the operated
hours when the main switch is turned to the ON
position.
(1) Hour meter
Tractor operated hours
The step that the display op-
erates
From 0.0 to 9999.9 Hr. Every 0.1 Hr. step
10000 to 99999 Hr. Every 1 Hr. step
After 99999 Hr. 99999 Hr. stays on
8.2.2 Function of tachometer
The meter panel on this machine is equipped with a
tachometer.
When the
key switch is in the ON position and the
engine operates, the tachometer indicates the engine
revolution per minute.
The meter picks up the voltage from the IC regulator
located in the alternator.
The IC regulator sends a signal of the engine revolution
to the meter.
The meter calculates the signal. It changes and
indicates the signal to the engine revolution in
cooperation with the voltage.
(1) Tachometer
(A) Yellow range
(B)
Orange range
Implement Recommended engine speed
PTO 540 Use within the yellow range (A)
Loader Use within the orange range
(B)
8.2.3 Function of fuel gauge
The meter panel on this machine is equipped with a
fuel gauge.
The fuel level
gauge and fuel level sensor are
connected by the wire harness.
The fuel gauge detects the resistance from the fuel
level sensor and indicates the fuel level in the fuel tank.
• When the fuel is close to empty level, the low fuel
indicator lamp comes on.
(1) Fuel gauge
(A) Empty
(B) Full
8.2.4 Function of coolant temperature
gauge
The
meter panel on this machine is equipped with a
coolant temperature gauge.
The
coolant
temperature
gauge and coolant
temperature sensor are connected by the wiring
harness.
