STα-30, STα-35, WSM
STEERING
6. STEERING CYLINDER
The steering cylinder is single piston both rod double-acting type.
The steering cylinder provide force in both directions.
Depending upon direction the steering wheel is turned pressure oil enters at one end of the cylinder to extend, or
the other end to retract it, thereby turning front wheel of the tractor.

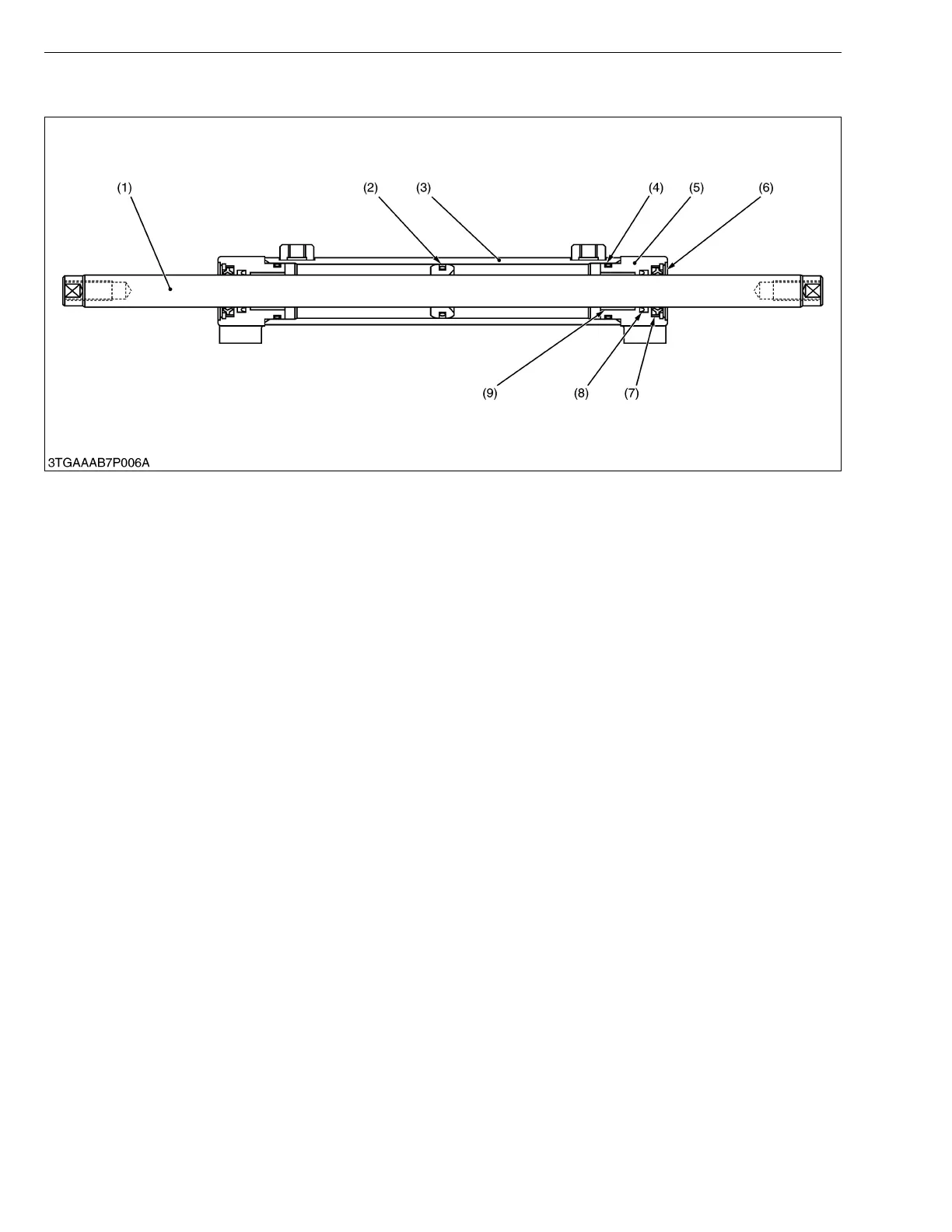

(1) Rod Assembly
(2) Packing
(3) Cylinder Tube
(4) O-ring
(5) Cover
(6) Internal Snap Ring
(7) Dust Seal
(8) Rod Gasket
(9) Bushing
