10-M12
STα-30 · STα-35, WSM
ELECTRICAL SYSTEM

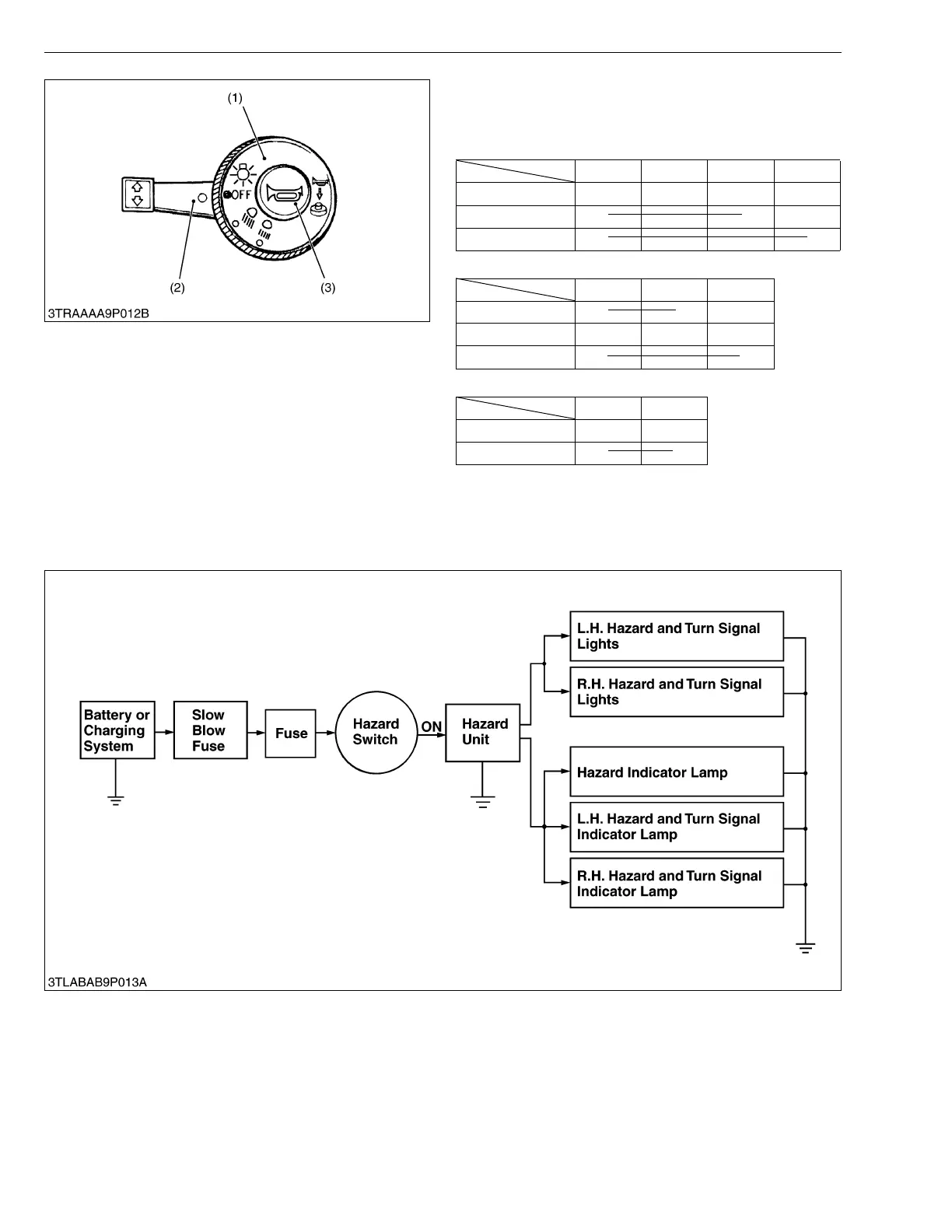

■ Combination Switch
Combination switch consist of head light switch, turn
signal light switch and horn switch.
• Head Light Switch
• Turn Signal Light Switch
• Horn Switch
W1014069
[3] HAZARD LIGHT
The hazard switch has two position; ON and OFF.
When the hazard switch is turned to ON, the hazard lights and indicator lamps are blinked as shown in the figure
above.
B1 T 1 2
OFF
●
Low ●●●
High ●● ●
B2 R L
R
●●
OFF ●
L ●●
B1 H
OFF
●
ON ●●
(1) Head Light Switch
(2) Turn Signal Light Switch
(3) Horn Switch
To Next Page
