1-S23
ZD18(F) · ZD21(F) · ZD28(F), WSM
ENGINE
[ZD28(F)]

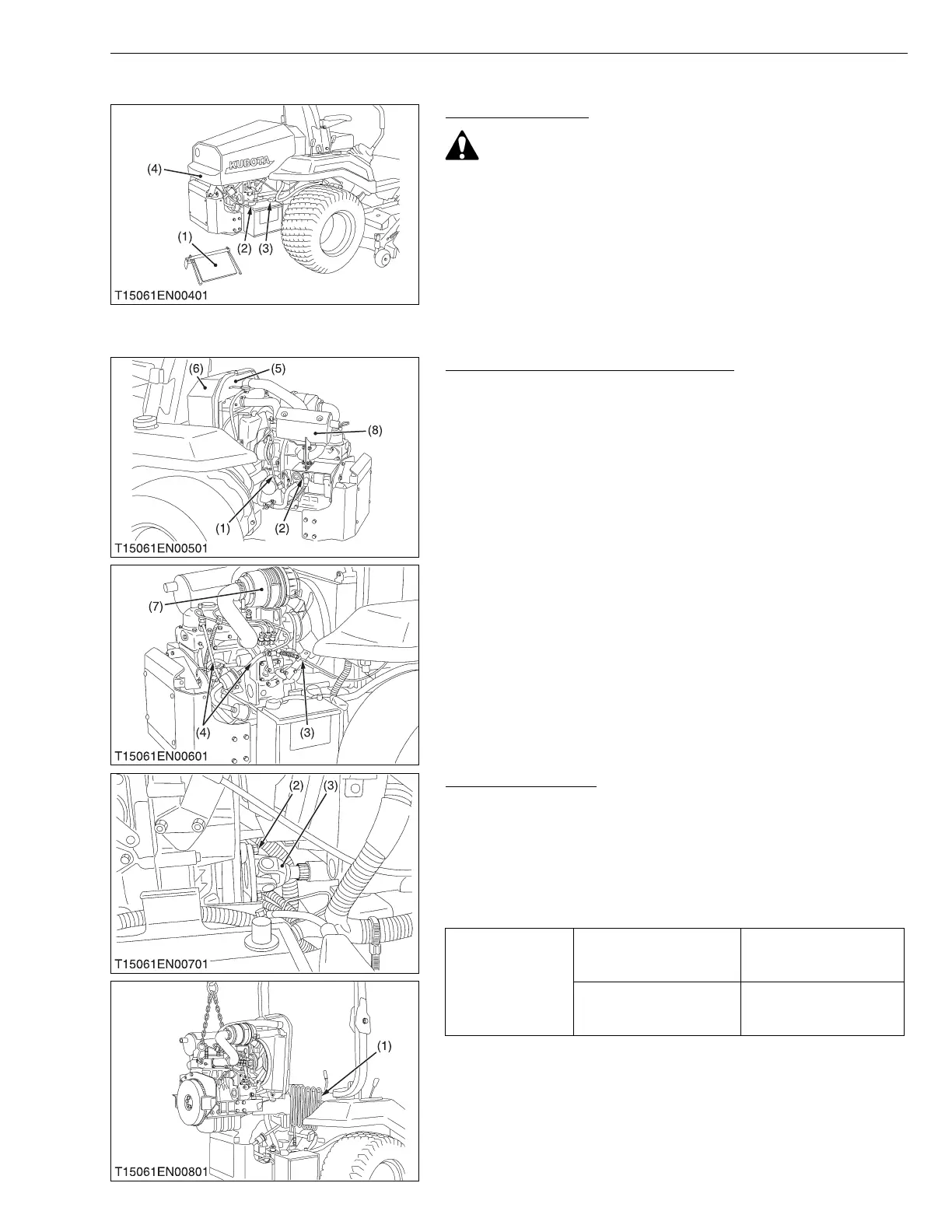

Battery and Bonnet
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the battery cover (1).
2. Disconnect the negative cable (3) from the battery.
3. Disconnect the positive cable (2) from the battery.
4. Remove the snap pin and bonnet mounting screw, then remove
the bonnet (4).
Panel Screen, Shutter Plate and Others
1. Disconnect the glow plug and stop solenoide harness (1) and
positive cable (2) battery side first.
2. Disconnect the accelerator wire (3) and fuse box from shutter
plate (5).
3. Disconnect the fuel hoses (4).
4. Remove the air cleaner (7) and muffler (8).
5. Remove the panel screen (6).
IMPORTANT
• When disconnecting the fuel hoses, be careful not to let the
fuel spill out the hoses.
Engine Disassembly
1. Remove the universal joint mounting screws (2).
2. Disconnect the universal joint (3) from fun drive pulley.
3. Remove the engine mounting nuts.
4. Separate the engine with the radiator from the frame, take care
not to damage the radiator.
(When reassembling)
• Apply grease to the all splines on the drive shaft.
(1) Battery Cover
(2) Positive Cable
(3) Negative Cable
(4) Bonnet
(1) Wire Harness
(2) Positive Cable
(3) Accelerator Wire
(4) Fuel Hose
(5) Shutter Plate
(6) Panel Screen
(7) Air Cleaner
(8) Muffler
Tightening torque
Universal joint mounting
screw
26.0 to 28.0 N·m
2.7 to 2.9 kgf·m
19.2 to 20.7 ft-lbs
Engine mounting nut
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
(1) Oil Cooler
(2) Universal Joint Mounting Screw
(3) Universal Joint
KiSC issued 04, 2009 A
