Kubota ZG227A - User Manual

Kubota ZG227A
111 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

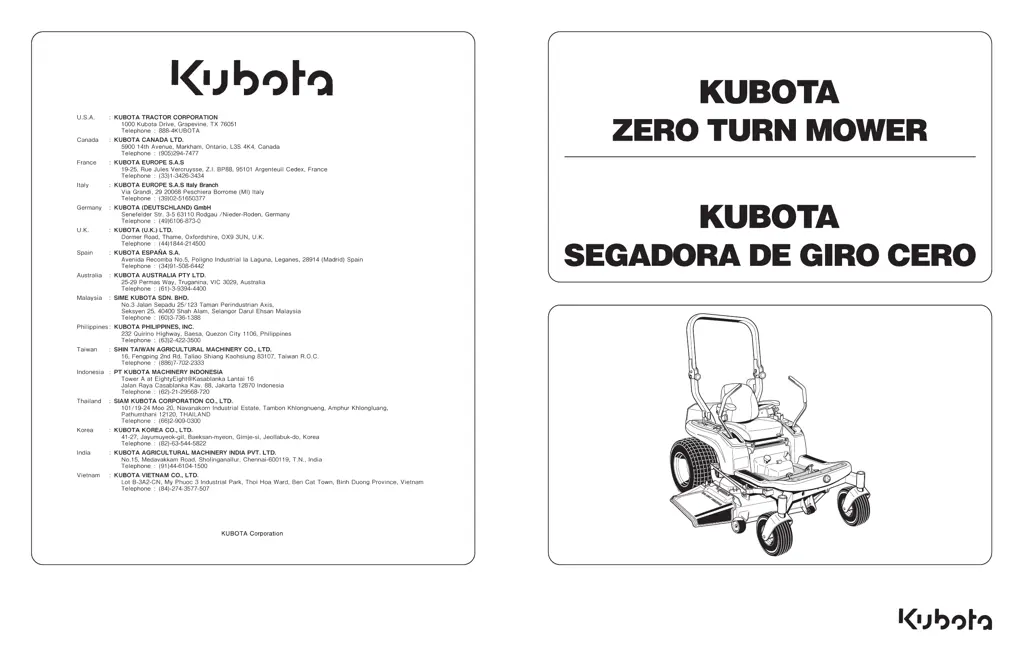

MODELS
MODELOS
ZG222A
ZG227A
OPERATOR'S MANUAL
MANUAL DEL OPERADOR
English, Spanish (U.S.A.)
Code No.
Código n°
K3272-7122-2
©
KUBOTA Corporation 2010
PRINTED IN U.S.A.
IMPRESO EN E.E.U.U.
READ AND SAVE THIS MANUAL
LEA Y CONSERVE ESTE MANUAL
Z
G
2
2
2
A
·
Z
G
2
2
7
A
1BDABDNAP0010

Table of Contents

Questions and Answers

  • M
    michaelcampbellNov 21, 2025
    Why is my Kubota Lawn Mower engine difficult to start?
    • M
      Megan JacksonNov 22, 2025
      If your Kubota Lawn Mower engine is hard to start or refuses to start, several factors could be at play. Ensure you're sitting on the operator's seat and that the parking brake is applied. The PTO lever should be in the "DISENGAGED" (OFF) position, and the motion control levers should be in the "NEUTRAL LOCK" position. Also, verify that the key switch is in the "ON" position and the carburetor fuel drain valve is in the "RUN" (OPEN) position. Other potential causes include: * No fuel: Replenish fuel. * Improper or stale fuel: Replace the fuel and fuel filter. * Water or dirt in the fuel system: Replace the fuel and consult your Kubota dealer. * Clogged or damaged fuel hose or fuel filter: Clean or replace fuel lines and consult your Kubota dealer. * Clogged air cleaner: Clean o...
  • A
    Allison OrozcoAug 25, 2025
    How to fix an uneven cut with Kubota Lawn Mower?
    • B
      Brandon ShawAug 26, 2025
      An uneven cut with your Kubota Lawn Mower can be caused by several factors. The mower deck might not be level, so level the mower deck. Operating at a ground speed that's too fast can also result in an uneven cut, so slow down. Dull blades can contribute to this issue, so have the blades sharpened. If the blades are worn or damaged, replace them. Low tire inflation can also cause an uneven cut, so add air to correct pressure. Ensure the anti-scalp rollers are adjusted correctly.
  • S
    Sean RobertsAug 27, 2025
    What to do if the starter does not function on my Kubota ZG227A?
    • A
      Alyssa BurchAug 27, 2025
      If the starter on your Kubota Lawn Mower does not function, it could be due to a battery that's been overused until the lights are dim, so charge the battery sufficiently. A poor terminal connection can also cause this issue, so clean the terminal and tighten it securely. If the battery life has expired, renew the battery.
  • R
    Rachel NewmanAug 27, 2025
    How to fix insufficient engine power on Kubota ZG227A Lawn Mower?
    • G
      Gary ValdezAug 27, 2025
      If your Kubota Lawn Mower has insufficient engine power, check the fuel system for insufficient or dirty fuel. Also, a clogged fuel filter or air cleaner can cause this issue, so replace the fuel filter and clean or replace the air cleaner. Finally, a damaged spark plug can also reduce engine power, so adjust the spark plug gap or replace it.
  • R
    Richard PhillipsAug 28, 2025
    What to do if Kubota ZG227A engine overheats?
    • M
      Mario BarnesAug 29, 2025
      If your Kubota Lawn Mower engine is overheating, it could be due to several reasons. The engine might be overloaded, so lower the speed or reduce the load. Insufficient engine oil can also cause overheating, so replenish the engine oil. Additionally, check the engine air intake screen and cooling fins for dirt and clean them if necessary. A plugged air cleaner element can also lead to overheating, so clean or replace it. Ensure the engine speed is not too low by operating at the "FAST" speed, and avoid operating at a ground speed that's too fast.
  • D
    Douglas OsborneSep 15, 2025
    Why does my Kubota ZG227A Lawn Mower move with motion control levers in neutral lock?
    • K
      kyleweaverSep 16, 2025
      If your Kubota Lawn Mower moves when the motion control levers are in the "NEUTRAL LOCK" position while the engine is running, it could be due to a hydrostatic lever linkage that is not correctly adjusted, so ask your dealer for hydrostatic lever linkage adjustment or pressure adjustment. It could also be that the control linkage pivots are sticking, so fill up and lubricate the linkage.
  • J
    Jeffrey PowellSep 13, 2025
    Why does my Kubota ZG227A not move when the engine is running?
    • L
      Louis BlankenshipSep 13, 2025
      If your Kubota Lawn Mower does not move while the engine is running, check if the parking brake is on and release it. It could also be due to an insufficient transmission fluid level, so replenish the oil.
  • E
    Erica HernandezSep 14, 2025
    Why do the battery plates look whitish on my Kubota Lawn Mower?
    • M
      Matthew GreenSep 14, 2025
      If, when viewed from the top, the top of the plates look whitish on your Kubota Lawn Mower battery, it could be because the battery was used with an insufficient amount of electrolyte, so add distilled water and charge the battery. It could also be that the battery was used too much without recharging, so charge the battery sufficiently.
  • B
    Benjamin GardnerSep 6, 2025
    Why is the mower belt slipping on my Kubota ZG227A?
    • N
      nicolesmithSep 6, 2025
      If the mower belt on your Kubota Lawn Mower is slipping, it could be due to a weakened tension spring, so replace it. A worn mower belt can also cause slipping, so replace it. Additionally, check if the mower is plugged and unplug and clean the mower deck. Also, look for debris in the pulleys and clean them.
  • S
    stephanie44Sep 3, 2025
    Why is the discharge chute plugged on my Kubota ZG227A?
    • J
      John JoyceSep 3, 2025
      If the discharge chute of your Kubota Lawn Mower is plugged, it could be due to several reasons. The grass might be too wet, so wait for it to dry. If the grass is too long, raise the cutting height and cut the grass twice. Cutting too low can also cause this issue, so raise the cutting height. Ensure the engine RPM is not too low by mowing at full throttle, and avoid a ground speed that's too fast by slowing down.

Summary

FOREWORD

SAFETY FIRST

Explains industry safety alert symbol and defines DANGER, WARNING, CAUTION, etc.

SAFE OPERATION

OPERATING

SERVICING AND STORAGE

DANGER, WARNING AND CAUTION LABELS

Details on safety labels, their meanings, and care.

SERVICING OF MACHINE

SPECIFICATIONS

INSTRUMENT PANEL AND CONTROLS

OPERATING THE MOWER

ADJUSTING CUTTING HEIGHT

How to adjust the mower deck cutting height.

MOWER MOUNTING

MOUNTING THE MOWER DECK

Step-by-step instructions for attaching the mower deck to the machine.

ADJUSTING THE MOWER

DISMOUNTING THE MOWER DECK

OPERATING THE ENGINE

STARTING THE ENGINE

Detailed steps for safely starting the engine.

CHECK DURING OPERATING

Checks to perform while the machine is operating.

COLD WEATHER STARTING

WARMING UP

Warm-up and Transmission Oil in the Low Temperature Range

JUMP STARTING

Safe procedures for jump-starting the machine's battery.

STOPPING THE ENGINE

Procedures for safely stopping the engine.

MAINTENANCE

SERVICE INTERVALS

Schedule of maintenance tasks based on operating hours.

LUBRICANTS AND FUEL

Recommended lubricants, fuels, and capacities for the machine.

PERIODIC SERVICE

DAILY CHECK

Essential checks to perform before each day's operation.

Checking Engine Oil Level

Checking Amount of Fuel and Refueling

Checking and Cleaning Air Intake Screen and Air Intake Area to Prevent Overheating

Checking Tire Pressure

Checking Transmission Fluid Level

Lubricating All Grease Fittings

Checking and Replacing Blade

How to check, sharpen, and replace mower blades.

Replacing Mower Belt

Bleeding Fuel System

ADJUSTMENT

MOTION CONTROL LEVER

Adjustments for motion control levers.

HST NEUTRAL

CREEP SPEED

MAXIMUM SPEED (FORWARD)

MOTION CONTROL LEVER ALIGNMENT

MOWER DECK LEVEL

Procedures for leveling the mower deck.

ANTI-SCALP ROLLERS

LEVEL MOWER DECK (Side-to-Side)

How to level the mower deck side-to-side.

LEVEL MOWER DECK (Front-to-Rear)

How to level the mower deck front-to-rear.

TROUBLESHOOTING

ENGINE TROUBLESHOOTING

Diagnosing and resolving engine-related problems.

BATTERY TROUBLESHOOTING

Diagnosing and resolving battery-related issues.

MACHINE TROUBLESHOOTING

Diagnosing and resolving general machine operational problems.

MOWER TROUBLESHOOTING

Diagnosing and resolving mower deck performance issues.

Kubota ZG227A Specifications

General IconGeneral
TransmissionHydrostatic
Turning RadiusZero-turn
Engine Power27 HP
Cutting Width54 inches
Displacement725 cc
Cutting Height1.0 - 5.0 inches
Deck TypeFabricated
Speed Range0 - 10.6 mph
Overall Height46.5 inches (118 cm)
