Instructions for work
Disc mower
GMD240-280-310
47
KN204AGB H

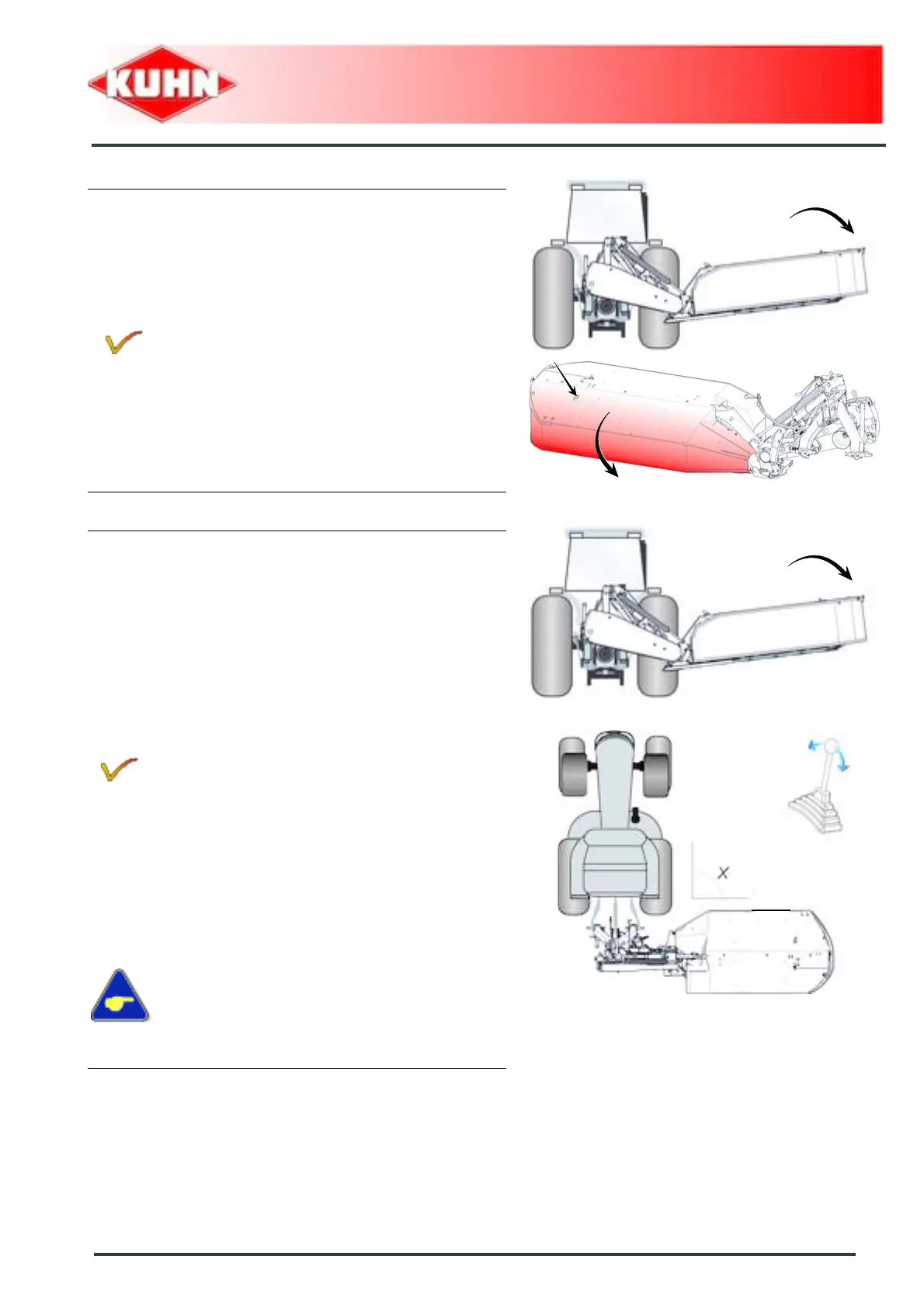

When the following equipment is fitted:
Mechanical safety release
- Place the single acting valve of the mowing
unit lift cylinder in floating position to fully
lower the mowing unit.
- Lower the tractor lift linkage in working
position.
- Unlock and lower the front guard using 18
box spanner supplied with the machine.
• The guard locks automatically.
When the following equipment is fitted:
Mechanical safety release + Hydraulic pivot +
Lighting and signalling
- Place the single acting valve of the mowing
unit lift cylinder in floating position to lower
the mowing unit until the end of the mowing
unit is approx. 500 mm (1’8’’) from the
ground.
- Activate double acting valve of pivot
cylinder to fully pivot the machine
frontwards.
- Place the single acting valve of the mowing
unit lift cylinder in floating position to fully
lower the mowing unit.
- Lower the tractor lift linkage in working
position.
- Coordinate manoeuvres to prevent any
interference between the tractor and the
guard front flap.
When working, the mowing unit must also be
fully pivoted frontwards.
