Disc mower
52
GMD240-280-310
Instructions for work
KN204AGB H

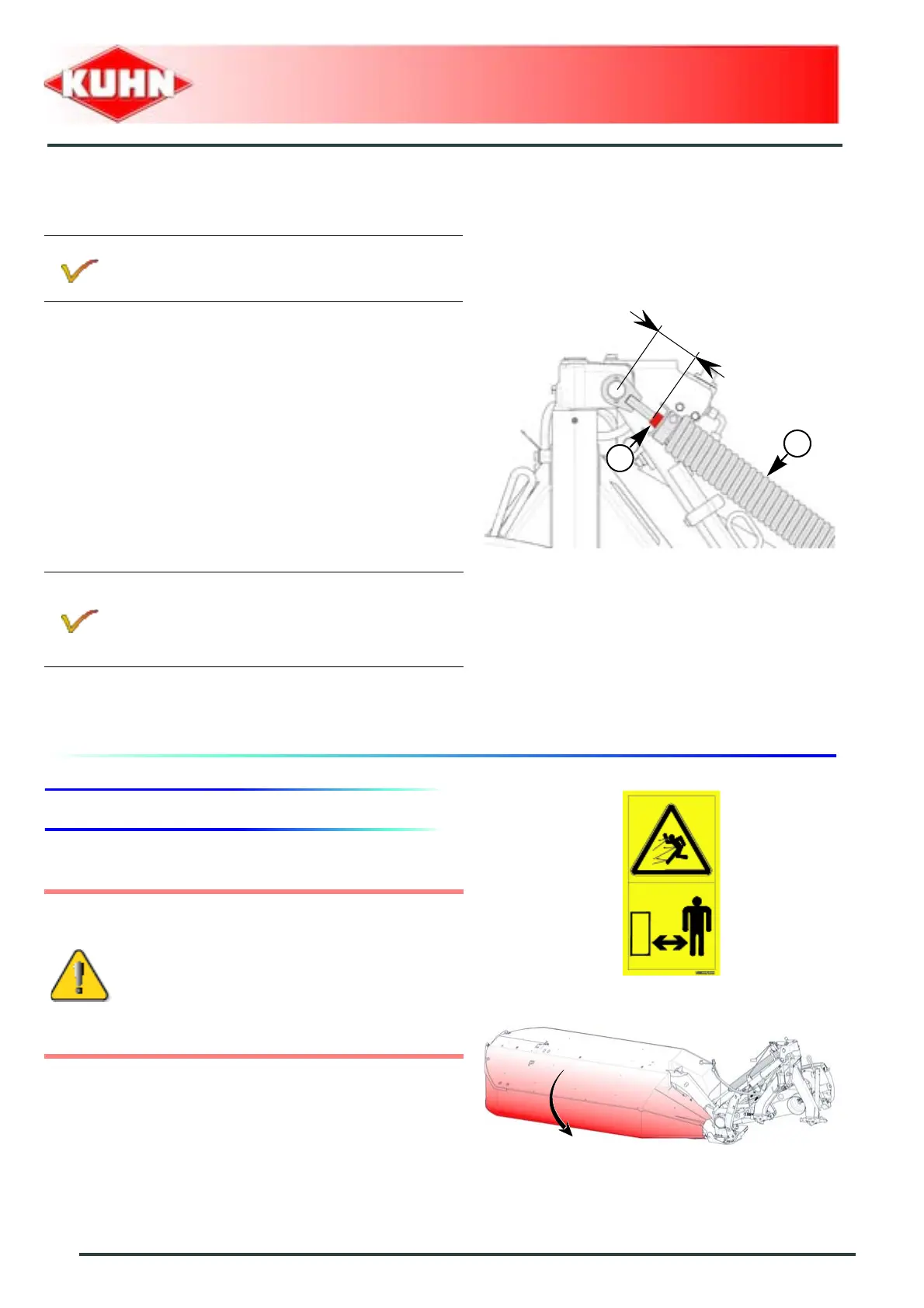

Compensating spring tension
In difficult working conditions, the compensating spring
adjustment can be modified.
From the working position:
- Raise the mowing unit in headland turn to release the
spring.
- Loosen counter nut (2).
- Rotate spring (1) to modify the mowing unit
suspension:
• Reduce measure (X) to increase the suspension.
• Increase measure (X) to reduce suspension.
- Tighten counter nut (2).
4. Machine use
The mowing unit is suspensed by means of
compensating spring (1).
GMD240
The measure (X) is factory set at 120 mm (4.7").
GMD280-310
The measure (X) is factory set at 90 mm (3.5").
Before mowing and to reduce risks of
projections, lower the front guard.
- Keep all persons and animals away from
the machine danger zone.
Never lean or step on the protection cover.
