KUHL GMD310 - Longer Hitch Pins

Disc mower
60
GMD240-280-310
Optional equipment
KN204AGB H

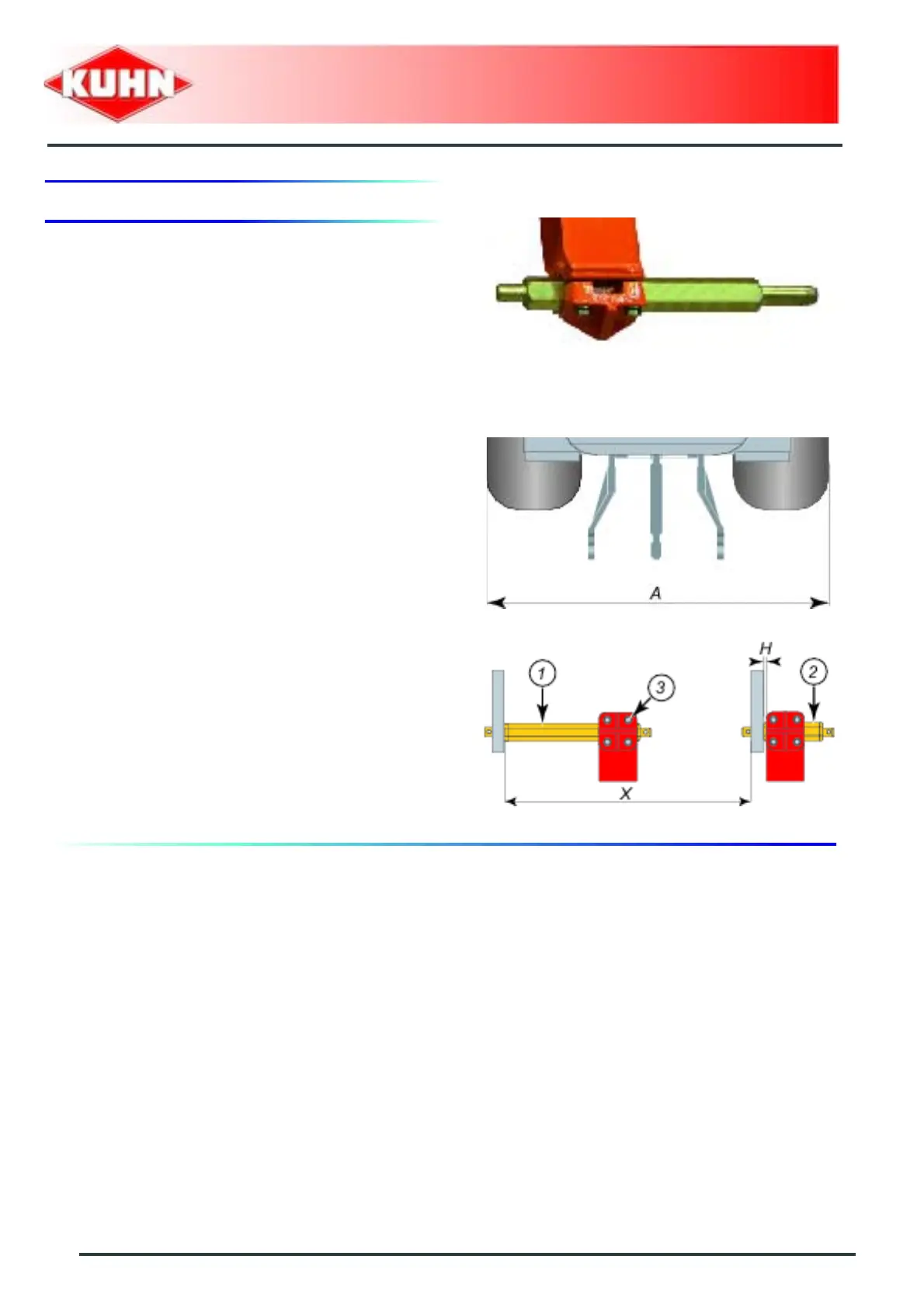

9. Longer hitch pins
GMD240-280-310
Part no. 56820700
The longer hitch pin enables offsetting the machine by
200 mm (7.9’’).
Linkage adjustment
- Measure dimension A.
If measure A exceeds 2.40 m (7’10"):
Position lower links:
- Adjust machine lower hitch pin position:
• Loosen the 8 screws (3).
• Position hitch pin (2) at measure H = 10 mm (0.4").
• Tighten 4 hitch pin screws (2): Torque : 12.3 daN m
(91 lbf ft).
• Position left longer hitch pin (1) at a distance of X =
825 mm (2’8").
• Tighten 4 hitch pin screws (1): Torque : 12.3 daN m
(91 lbf ft).
