Disc mower
86
GMD240-280-310
Maintenance and storage
KN204AGB H

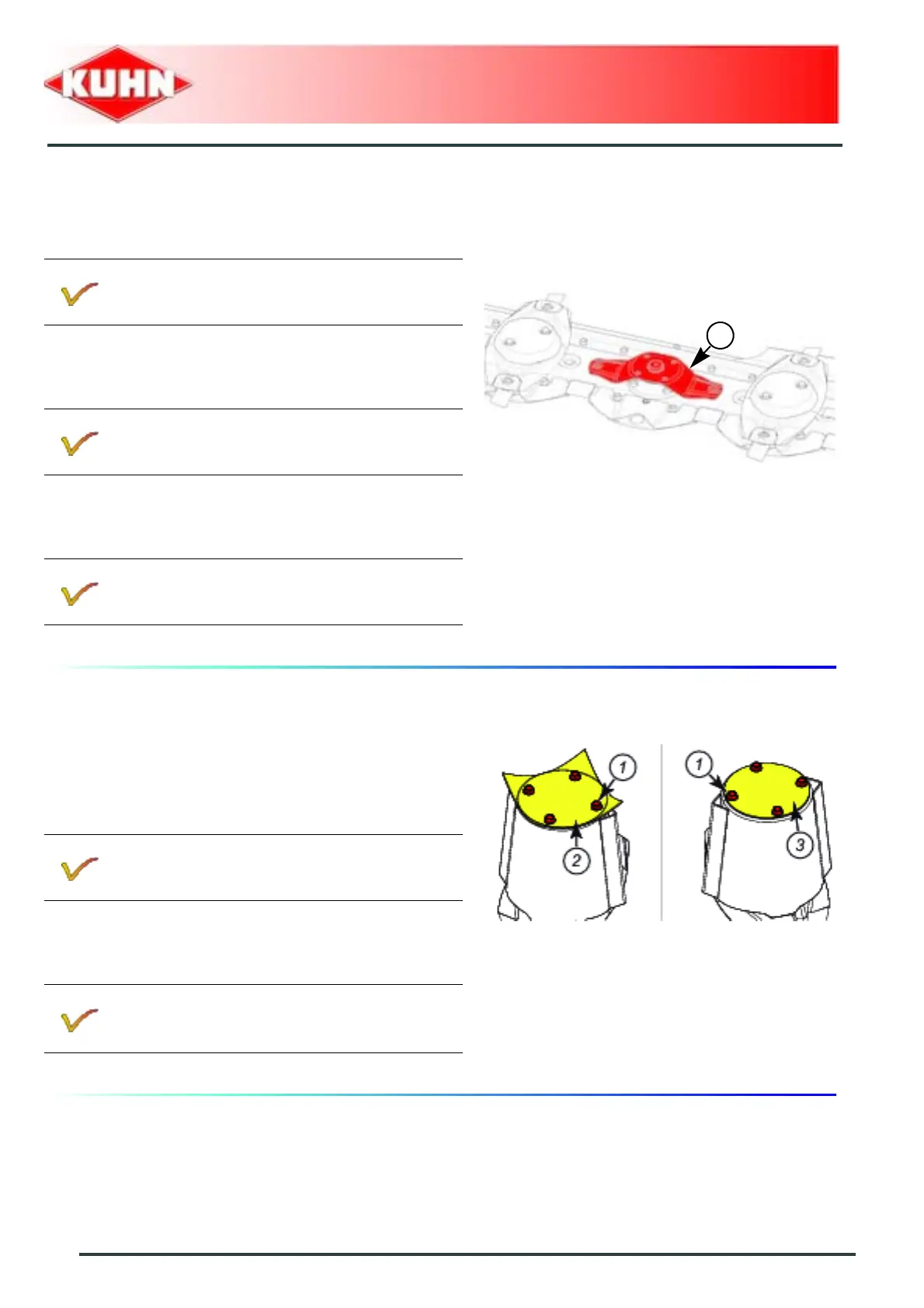

Spring plate replacement
- Remove the disc:
- Remove spring plate (1).
- Refit the disc:
Outer and inner cones
- Check torque of attachment bolts (1) of outer and
inner cone covers (2) and (3):
• Torque: 6 daN m (44 lbf ft).
- Replace any lost or damaged cover.
See section: Maintenance and storage /
Maintenance / Disc replacement.
Spring plate: Part no. K6803410
See section: Maintenance and storage /
Maintenance / Disc replacement.
Screw (1): Part no. 80131017
Cover:
• (2) Part no. 56803420
• (3) Part no. 56803400
