KUHN AXIS 30.1 - Checking the Position of the Spreading Disc Hub

General maintenance and service (all models)
189
9
AXIS 20.1AXIS 20.1
AXIS 30.1 (W), AXIS 40.1 (W)
AXIS-MAINTENANCE
9.7 Checking the position of the spreading disc hub
The spreading disc hub must be centred exactly under the agitator.

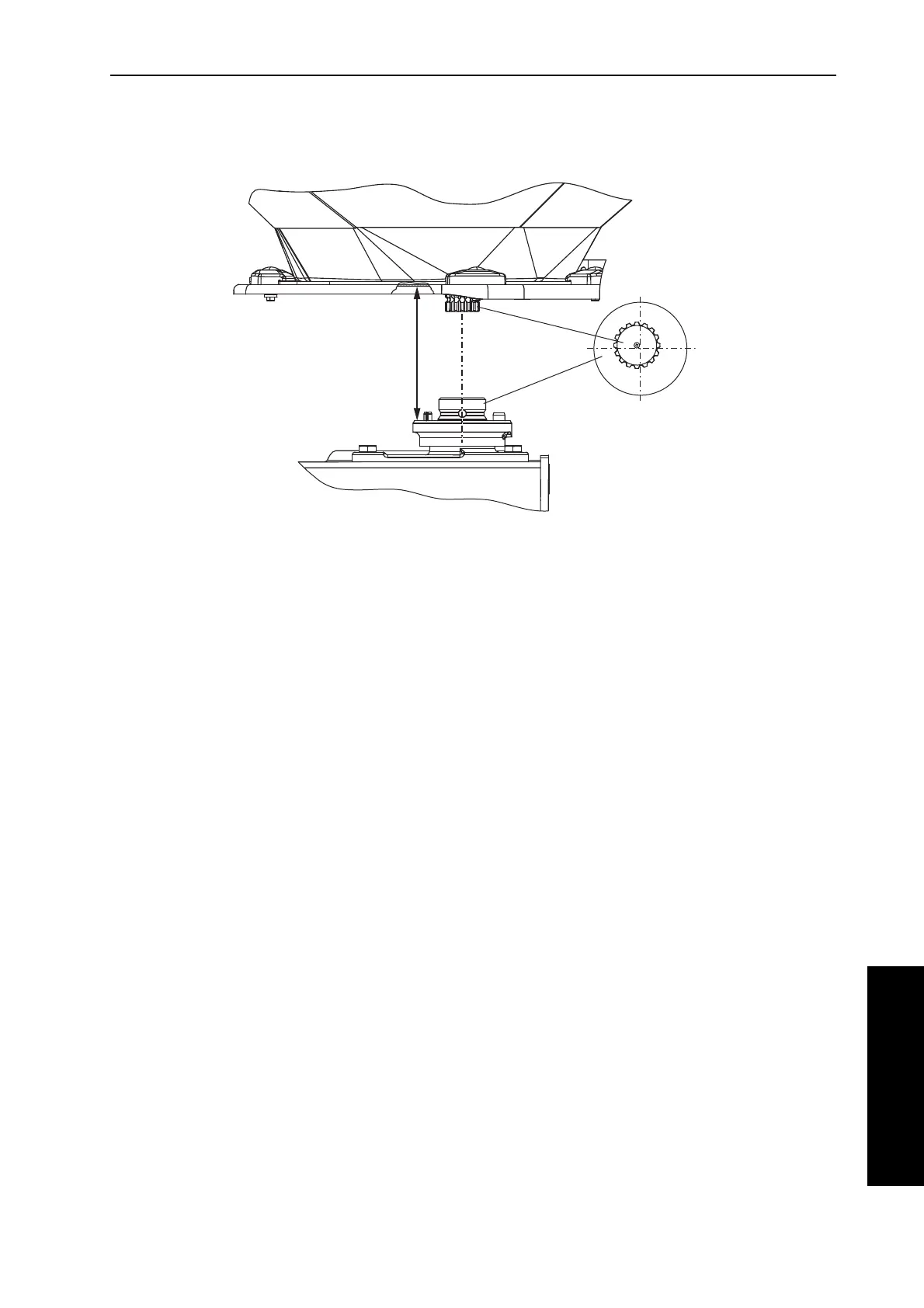

Figure 9.4: Checking the position of the spreading disc hub
Requirements:
 The spreading discs are removed (see section B.5.2).
Testing the centring:
1. Use suitable equipment to check that the spreading disc hub and agitator are
centred (e.g. straight edge ruler, protractor)
 The axes of the spreading disc hub and the agitator must be aligned. The
maximum allowable deviation is 2mm.
If this margin is exceeded, please contact your dealer or authorised service cen-
tre.
Checking distance:
2. Measure the gap between upper edge of spreading disc hub and the lower
edge of the agitator.
 The distance must be 136.5 mm (permissible tolerance ± 2 mm).
If this margin is exceeded, please contact your dealer or authorised service cen-
tre.
136,5
_+
2 mm
< 2 mm
