Rotary cultivators
30
EL32
Instructions for work

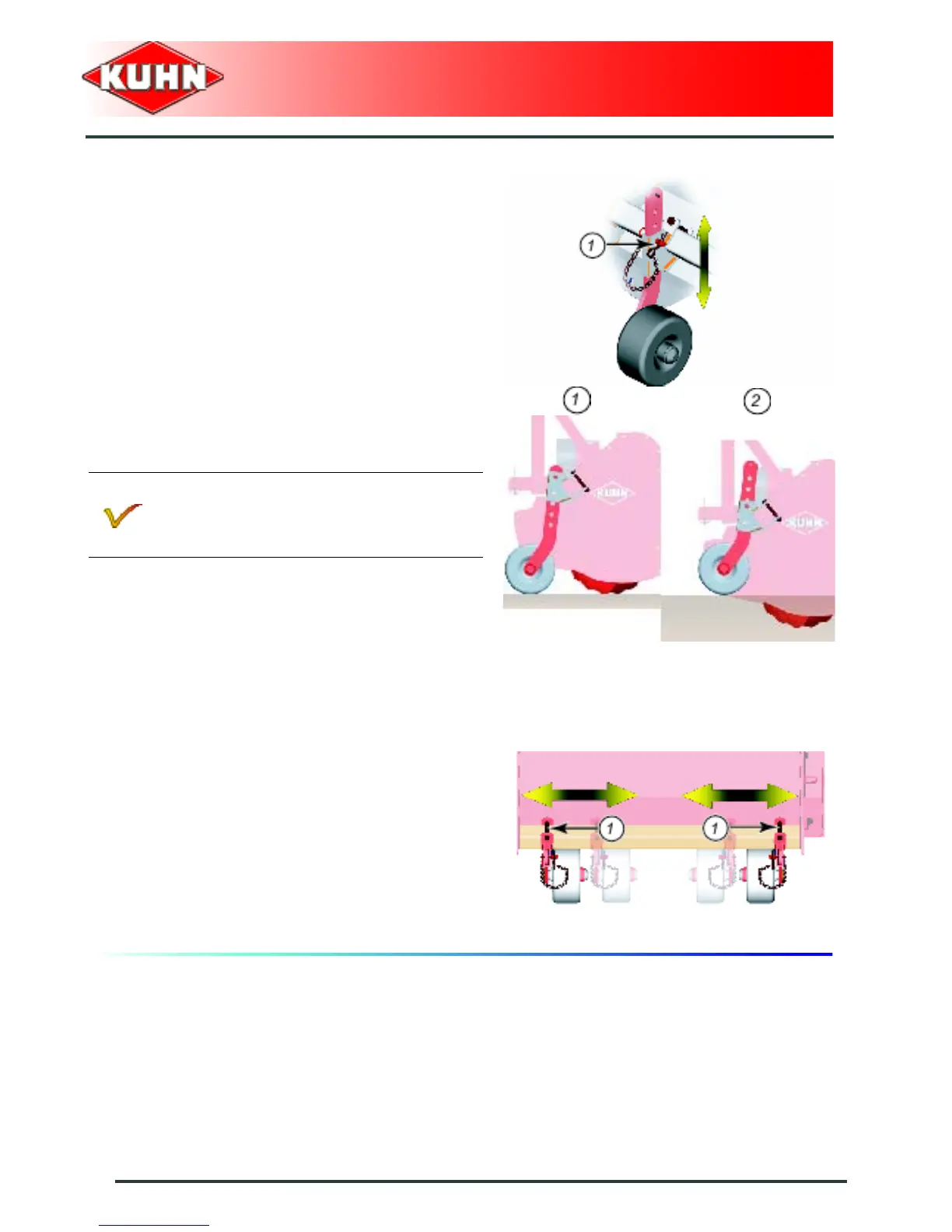

Adjusting the working depth with wheels:
The working depth is set by the wheel height:
- Lift the machine slightly off the ground.
- Remove R-clip and pin (1).
- Position wheel arm in hole corresponding to the
required setting.
- Insert pin (1).
- Secure using R-clip.
Adjusting the distance between wheels:
- Lift the machine slightly off the ground.
- Unscrew the 2 bolts (1).
- Slide wheel support to the required position.
- Tighten the screws (1):
• Torque: 8.5 daN m (63 lbf ft).
Relations between the working depth and the
position of the wheels:
Position (1) = 50 mm (2’’).
Position (2) = 150 mm (6’’).
