KUHN FC883RA - Putting into Service; Description of Control Elements

Mower conditioner
26
FC883RA
Putting into service
$PUTTING INTO SERVICE

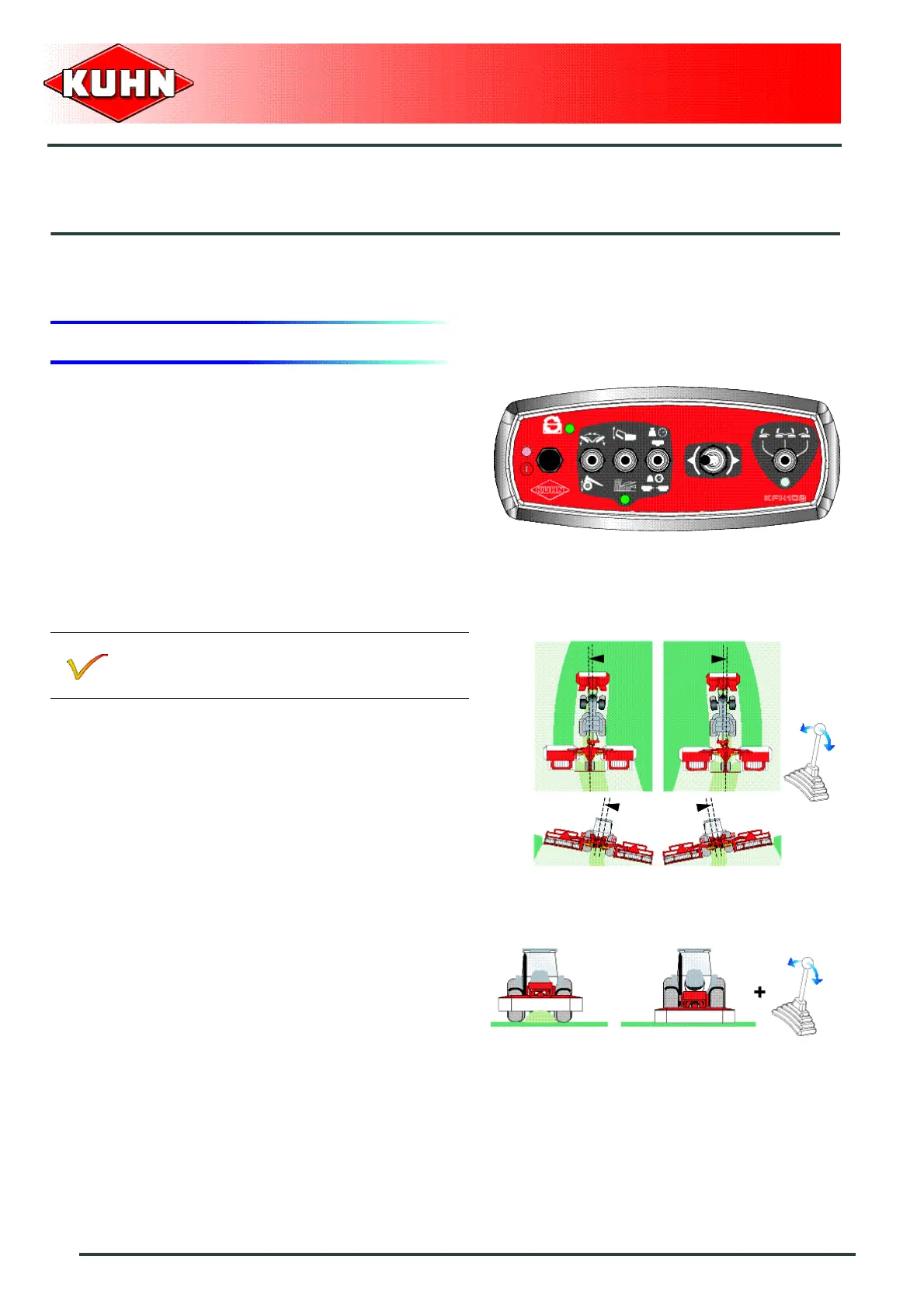

1. Description of control elements
The tractor must be equipped with:
- 1 double acting valve for use in combination with the
control box.
The control box associated with a double acting
hydraulic valve controls following functions:
• Mowing unit transport/work positions.
• Transport/work position of transport wheels.
• Raising/lowering of conveyors.
• Mowing unit suspension.
• Cutting height.
- 1 double acting valve for machine offsetting
manoeuvres.
- 1 single acting valve for setting the front unit in
transport/work position and vice-versa.
- 1 hydraulic top link.
Operating principle: The operations are obtained
by combining the control box switches with the
double acting hydraulic valve.
